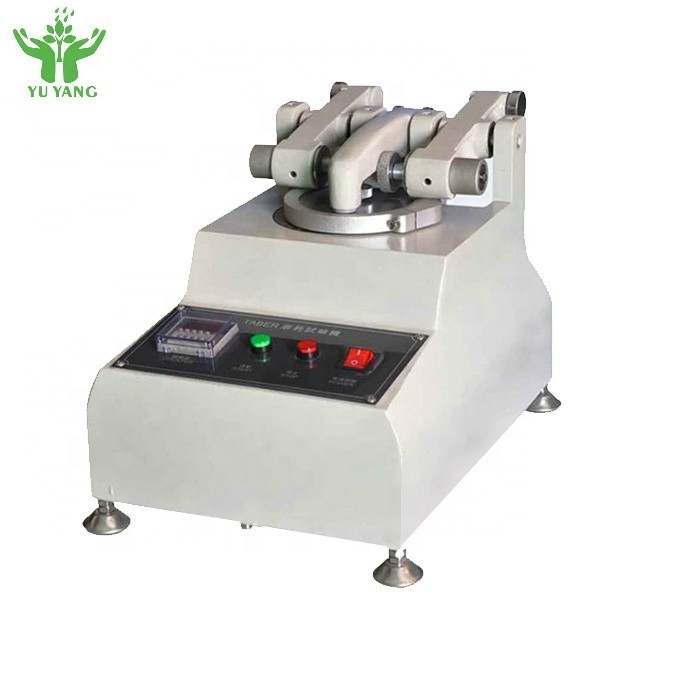

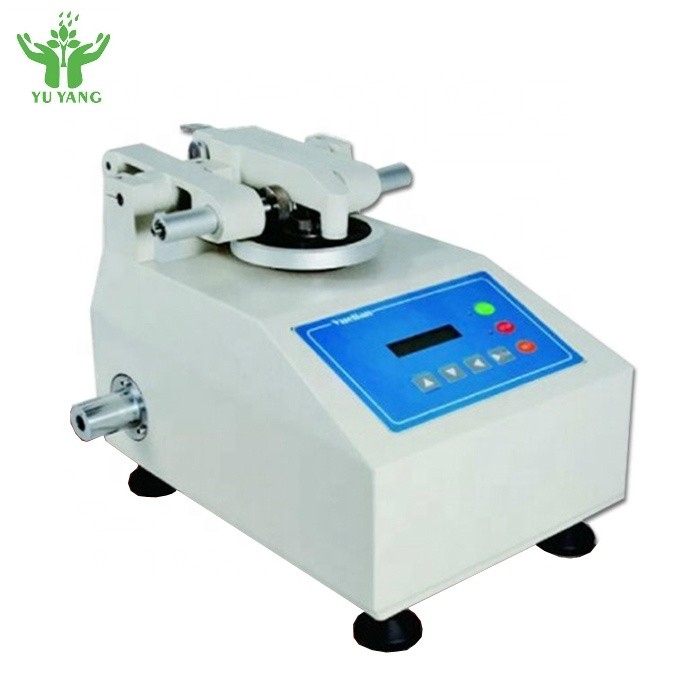

72rpm 2" Taber Abrasion Resistance Tester For Rubber Plastic ASTM D3884

72rpm 2" Taber Abrasion Resistance Tester For Rubber Plastic ASTM D3884

  • 72rpm 2" Taber Abrasion Resistance Tester For Rubber Plastic ASTM D3884
  • 72rpm 2" Taber Abrasion Resistance Tester For Rubber Plastic ASTM D3884
  • 72rpm 2" Taber Abrasion Resistance Tester For Rubber Plastic ASTM D3884
  • 72rpm 2" Taber Abrasion Resistance Tester For Rubber Plastic ASTM D3884
  • 72rpm 2" Taber Abrasion Resistance Tester For Rubber Plastic ASTM D3884
  • 72rpm 2" Taber Abrasion Resistance Tester For Rubber Plastic ASTM D3884
72rpm 2" Taber Abrasion Resistance Tester For Rubber Plastic ASTM D3884
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: CE
Model Number: YYX-005
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $2000
Packaging Details: Wooden Box
Delivery Time: 7-30 Days
Payment Terms: T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Product Name: Taber Tester Application: Textile Rubber Plastic Leather
Function: Resistance Test Machine Specimen Size: ED:108mm ID:8mm ,3mm
Abrasion Wheel: 2"(max.45mm), 1/2"(W) Counter: 250g, 500g, 1000g
Gyration Speed: 60±1rpm Grinding Wheel Model: H18,H22,CS10,CS17,S32,S33
High Light:

2" taber abrasion resistance tester

,

72rpm taber abrasion resistance tester

,

ASTM D3884 taber wear test

Taber Abrasion Resistance Tester for Rubber Plastic Rubber Textile Electronic



Descriptions:

This machine Widely Used to testing wear resistant material,fabric, rubber,coating, plywood,paper, leather...etc. According to the different material with different grinding wheel wear test, check before and after the abrasion of specimen weight difference to assess physical results



Specification:

Specimen Size:
ED:108mm ID:8mm ,3mm
Abrasion Wheel:
2"(max.45mm), 1/2"(W)
Wheel Center Distance:
63.5mm
Rotating Speed:
60/72 rpm
Load:
250g, 500g, 1000g
Counter:

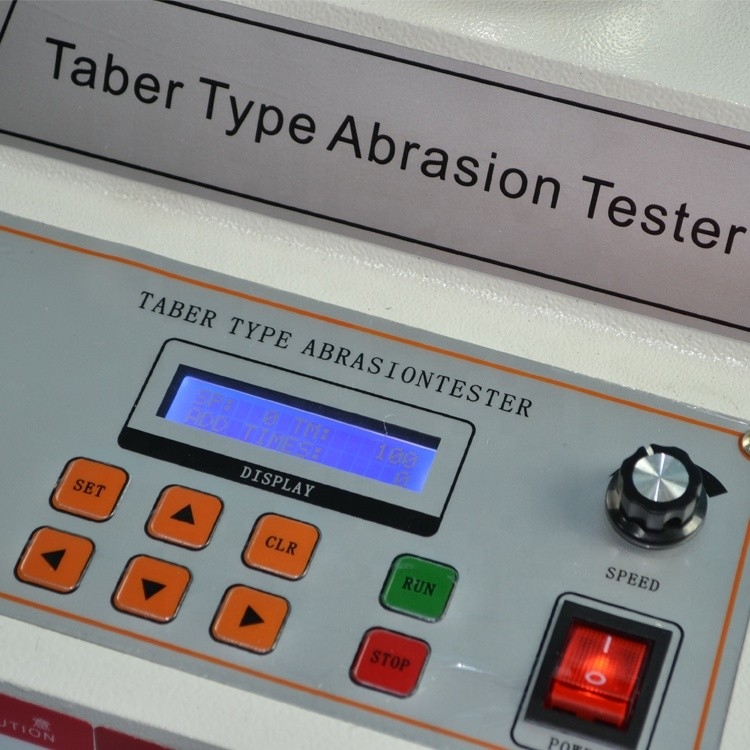

LCD Touch screen, 0-999,999 Automatic shutdown
Wheel and Specimens disk center space:
37~38mm
Machine Size:
(L*W*H)530*320*310mm + vacuum cleaner
Weight:
18kg (Excluding vacuum cleaner)
Power:
1, AC220V/50Hz
Wear index calculation formula:
Abrasion loss weight/test turnover number×1000
Design criteria:
DIN-53754, 53799,53109,52347, TAPPI-T476, ASTM-D1044,D3884, ISO-5470
Specimen Size:
ED:108mm ID:8mm ,3mm
Abrasion Wheel:
2"(max.45mm), 1/2"(W)
Wheel Center Distance:
63.5mm

Standards:

ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, TAPPI T476, ISO 9352, ISO 5470-1, JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109, DIN 53754, DIN 53799

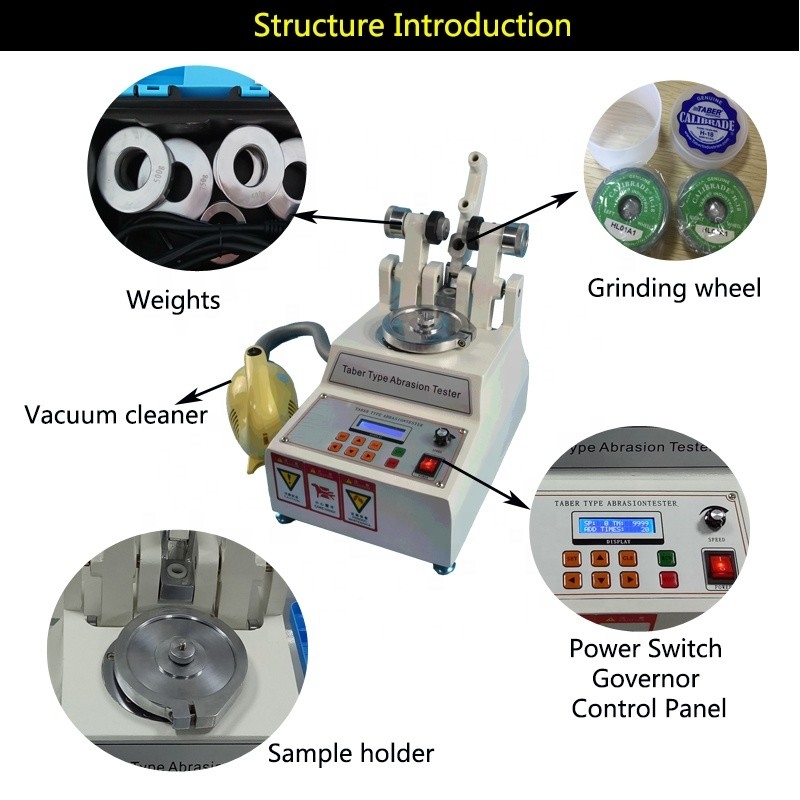

Feature:

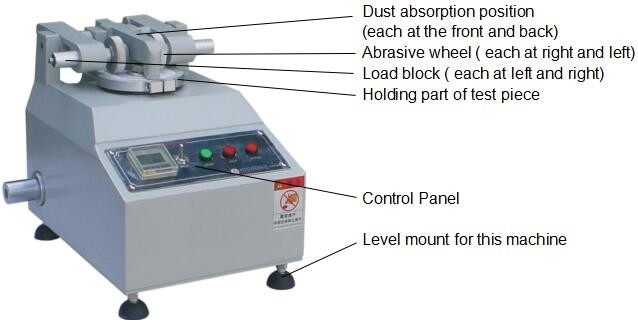

1. Unique wear process. Place test sample on turntable and two abrasive wheel press on material to make material to wear.
2. Specimen turntable speed control options of both 60 rpm and 72 rpm.

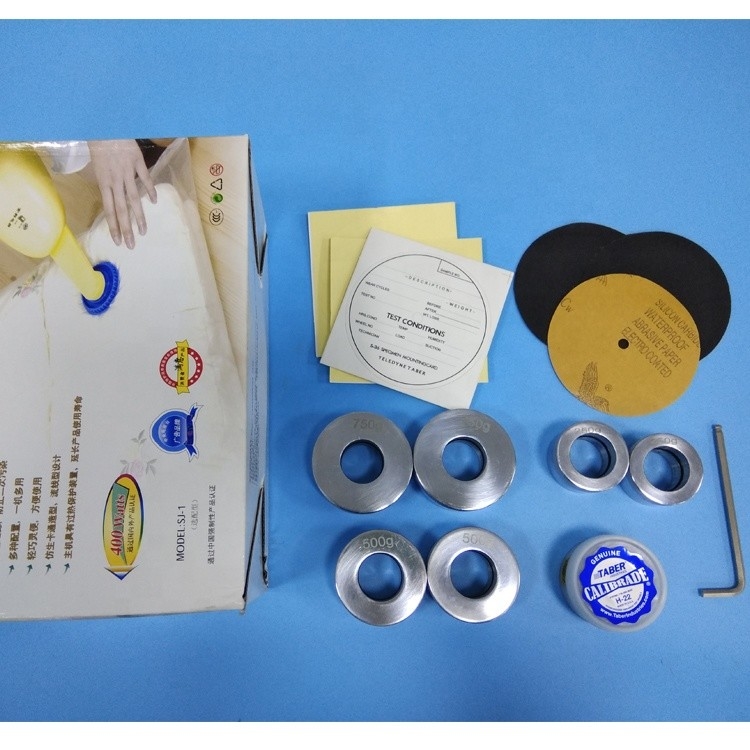

3. Precision steel weights of 250 grams and 750 grams are furnished to provide standard wheel loads of 500 and 1000 grams. Weights are marked to show total load on each wheel. This marking includes the weight of the abrading arm (250 grams).
4. Equip with vacuum cleaner to clear abrasive dusts Can test with different wear medium and accessories.

72rpm 2" Taber Abrasion Resistance Tester For Rubber Plastic ASTM D3884 0
