EN ISO 1182 Flammability Test Apparatus , 1.5KVA Microscale Combustion Calorimeter

EN ISO 1182 Flammability Test Apparatus , 1.5KVA Microscale Combustion Calorimeter

EN ISO 1182 Flammability Test Apparatus , 1.5KVA Microscale Combustion Calorimeter
EN ISO 1182 Flammability Test Apparatus , 1.5KVA Microscale Combustion Calorimeter
EN ISO 1182 Flammability Test Apparatus , 1.5KVA Microscale Combustion Calorimeter
Product Details:
Place of Origin: China
Brand Name: YUYANG
Model Number: YY130
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $2850
Packaging Details: Wooden Box
Delivery Time: 7-30 Days
Payment Terms: T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Product Name: Micro-computer Building Non-Combustibility Test Apparatus Specimen Holder Mass: 15±2 G
Draught Shield: Φ75mm×50mm Voltage Stabilize: 1.5KVA, Accuracy Of Output Voltage Within ±1%
Variable Transformer: 0~100V Thermometer: 0~1000±5%
Timer: 0~99h Power: AC220V ± 10%, 50Hz, Current ≤10A
High Light:

EN 1182 flammability test apparatus

,

ISO 1182 flammability test apparatus

,

1.5KVA microscale combustion calorimeter

EN ISO 1182 Micro-computer Building Non-Combustibility Test Apparatus



Application:

Suitable for determining whether the building materials flammability test under specified conditions.



Standards:

EN ISO 1182 Reaction to fire tests for building products -- Non-combustibility test

GB/T 5464 Test Methods for building materials non-combustibility



Specification:

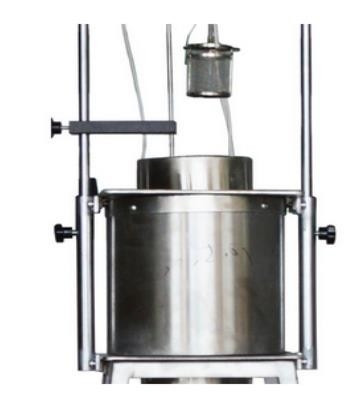

1. Test apparatus containing furnace, specimen holder, draught shield, thermocouples, voltage stabilizer, variable transformer, power controller, and temperature indicator.

2. Furnace: Φ95mm×Φ75mm×Φ150mm, 80/20 nickel/chromium electrical resistance tape 3mm wide and 0.2mm thick.

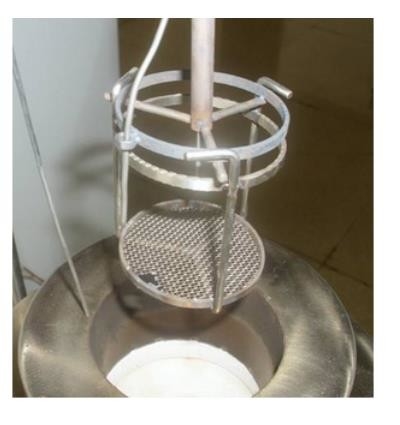

3. Specimen holder mass: 15±2 g

4. Draught shield: Φ75mm×50mm

5. Thermocouple: insulated nickel-chromium sheathed Φ0.3mm

6. Voltage stabilizer: 1.5KVA, accuracy of output voltage within ±1%

7. Variable transformer:0~100V

8. Thermometer:0~1000±5%

9. Timer:0~99h

10. Power: AC220V ± 10%, 50Hz, current ≤10A

11. Furnace temperature: 750±5℃

12. Furnace temperature drift: <2℃/10min

13. Heating power: 800-1000W, maximum power: 1.5KW

14. Gas source: gas or liquefied petroleum gas (if conditions permit, choose a better quality gas source)

15. Inside diameter of burner is Φ0.17mm, four Φ4mm air-conditioning hole. Flame height is easy to adjust.



Feature:

1. Using 16-bit high-precision microcomputer control board, with reasonable structure, stable performance, easy operation;

2. Windows XP operate system, LabVIEW style, perfect security mechanisms. During testing real-time display measurement results, and dynamically draw perfect curve, the data can be stored permanently and read and print output, you can print it directly;

3. PC+Labview software control;

4. Furnace: using steel-tube mold making, uniform thickness, durability, heat resistance temperature > 1600C, the temperature uniformity.



Structure:

1. The apparatus is made of combustion chamber and control chamber;

2. Combustion dimension: L700 * W400 * H850 (mm);

3. Combustion chamber and control chamber are made of high quality static-electronic steel plate, plastic-spray surface treatment and perfect appearance;

4. Internal parts are made of high quality stainless steel, and anti-rust.
