25mm Flammability Resistance Tester Vertical and Horizontal Flame Test Chamber

25mm Flammability Resistance Tester Vertical and Horizontal Flame Test Chamber

  • 25mm Flammability Resistance Tester Vertical and Horizontal Flame Test Chamber
  • 25mm Flammability Resistance Tester Vertical and Horizontal Flame Test Chamber
  • 25mm Flammability Resistance Tester Vertical and Horizontal Flame Test Chamber
  • 25mm Flammability Resistance Tester Vertical and Horizontal Flame Test Chamber
  • 25mm Flammability Resistance Tester Vertical and Horizontal Flame Test Chamber
  • 25mm Flammability Resistance Tester Vertical and Horizontal Flame Test Chamber
  • 25mm Flammability Resistance Tester Vertical and Horizontal Flame Test Chamber
25mm Flammability Resistance Tester Vertical and Horizontal Flame Test Chamber
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: GB/T 5169.5, GB/T 4706.1, IEC60695-11-5, IEC60695-2-2
Model Number: YY007
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood Box
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets per month
Contact Now
Detailed Product Description
Product Name: Fire Testing Equipment Burner Angel: 0, 20, 45 Degree
Usage: Horizontal And Vertical Flame Tester Power: Electronic
Opening Diameter: 25mm Dimension: L1400*W600*H1900(mm)
Temperature Testing Range: 0~1000 Degree Material: Stainless Steel
High Light:

0.7 CBM Flammability Resistance Tester

,

25mm Flammability Test Chamber

,

Electronic 45 Degree Flame Test Chamber

25mm Flammability Resistance Tester Vertical and Horizontal Flame Test Chamber



Application:
Test the flammability of the plastic material spare part in appliances. Flammability, combustion speed, flame spread, the
intensity of combustion can be acquired during test automatically and precisely.



Standard:
Horizontal flame test:UL HB,IEC 60695-11-10,IEC 60707,ISO 1210.
50W Vertical flame test:UL94, V0,V1,V2,IEC 60695-11-10,ISO 1210.
500W Vertical flame test:UL94 5VA,5VB,IEC 60695-11-20,ISO 9770.
Film material Vertical flame test:VTM-0,VTM-1,VTM-2,ISO 9773;
Foam material Vertical flame test:HF-1,HF-2,HBF,ISO 9772.

Features:
l. Combustion chamber 0.7 CBM.
2. large view window made of Acrylic sheet

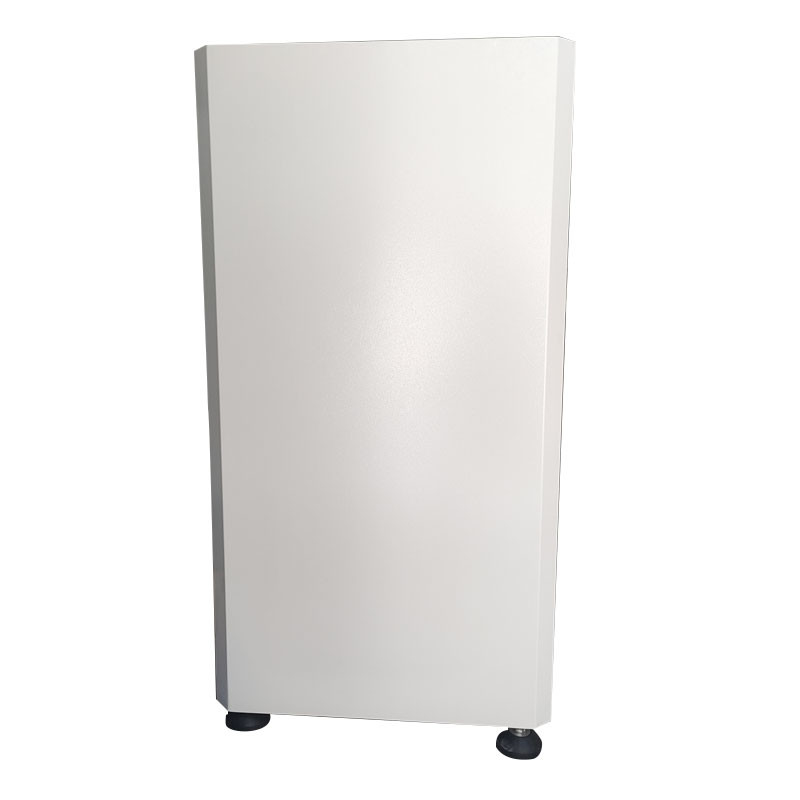

3. working table cabinet is optional.
4. Burner calibration kit is optional.
5. Burner angel adjustable 0, 20, 45.

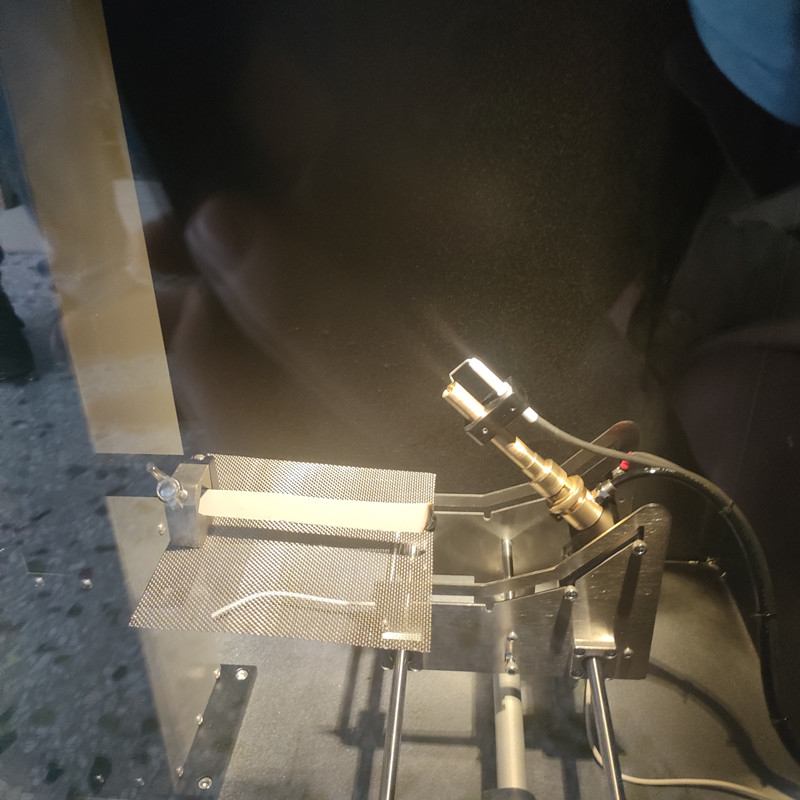

6. Humboldt Tirrill burner made in USA inner diameter 9.5±0.3mm
7. Fan on the top to evacuate the exhaust during combustion test.
8. MFC control the height of flame
9. The sensor enable accurate position, the test starts timing automatically

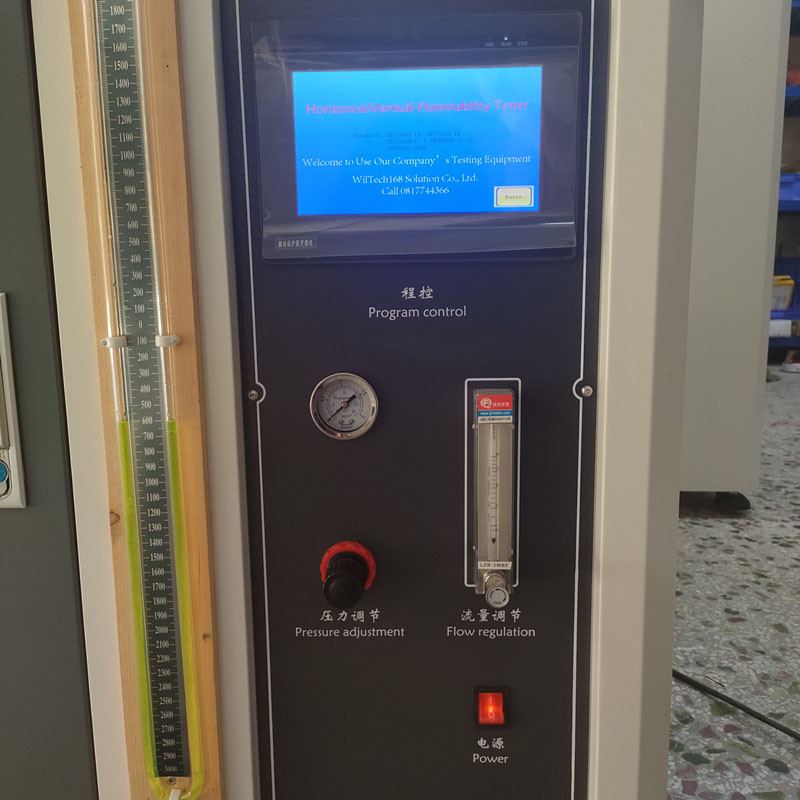

l0. Differential pressure gauge enable gas back pressure.
11. Auto Electric spark ignition.

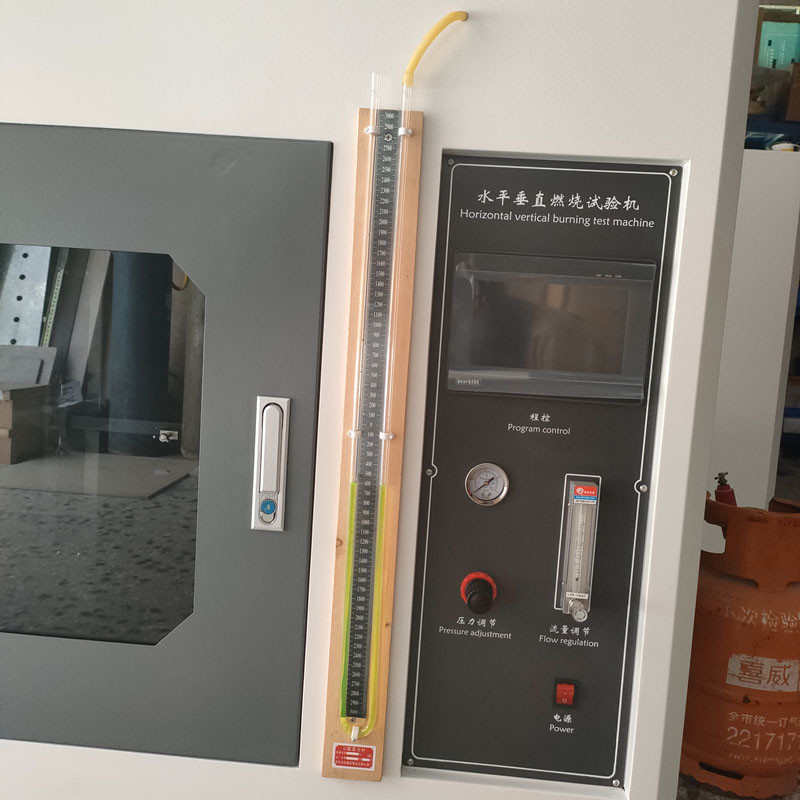

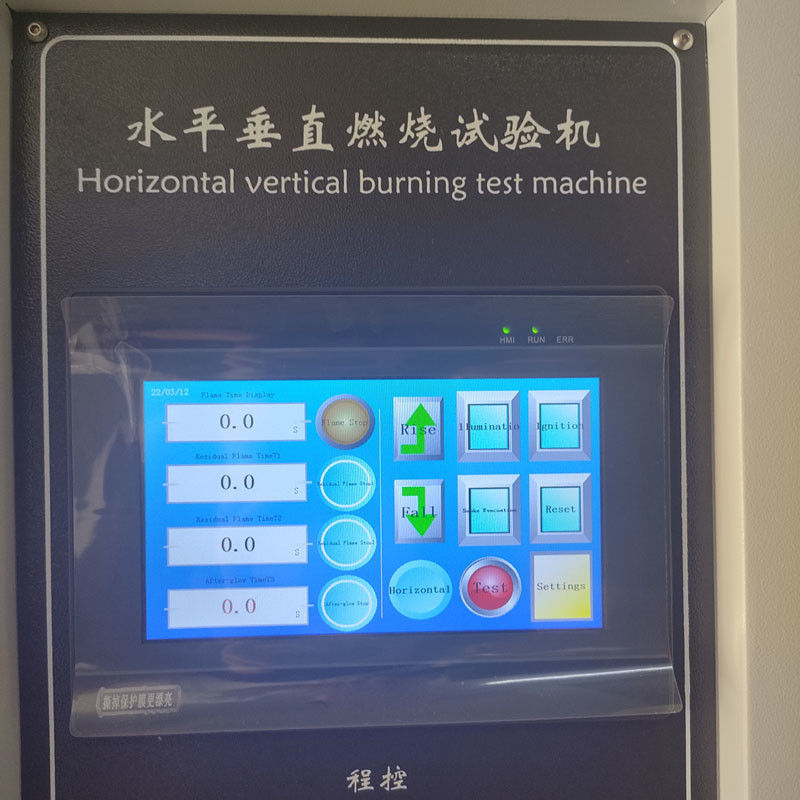

12. PLC+7" digital display.
13. Liner combustion speed.
14. Calculate Liner combustion speed, display and save the data
15. Compare the standard referential data and the test result.
16. Horizontal or vertical test program changeable.
17. the alarm rings when the flame shock lasts 10s.
18. the gas supply is cut automatically when no operation is conducted in the chamber for 10 min.

Specification:
Test temperature:0~500℃
Temperature accuracy: ± 1 ℃
Opening diameter:25mm
Air flow:0~100mm/s(adjustable)
Power:AC220V,50HZ
Dimension:L1400*W600*H1900(mm)
Experimental part of the device is as follows: the furnace shell, furnace tube, inner tube, sample disk, heating jacket,
insulation, thermal, air source, temperature control device, automatic ignition device.
Test temperature:0~500℃Temperature accuracy:± 1 ℃Opening diameter:25mmAir flow:0~100mm/s(adjustable)Power:AC220V,50HZDimension:
L1400*W600*H1900(mm)



Parameters:

Product Name Fire Testing Equipment
Burner Angel 0, 20, 45 Degree
Usage Horizontal And Vertical Flame Tester
Power Electronic
Opening diameter 25mm
Dimension L1400*W600*H1900(mm)
Temperature testing range 0~1000 degree
Material Stainless Steel



25mm Flammability Resistance Tester Vertical and Horizontal Flame Test Chamber 0

25mm Flammability Resistance Tester Vertical and Horizontal Flame Test Chamber 1
