| Place of Origin: | CHINA |
| Brand Name: | YUYANG |
| Certification: | ISO |
| Model Number: | YY010 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiaton |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 days |
| Supply Ability: | 100 sets per month |
| Heat Conductivity: | 0.01-10W/mk | Accuracy: | Less Than 3% |
|---|---|---|---|
| Thermal Resistance Measurement: | 0.1~8 M2K/W | Sample Dimensions: | 100*100mm, Thickness 5 ~20mm |
| Cold Surface: | 10℃ ~ 50℃ | Heat Surface Temp Control: | Room Temp- 99.99℃ |
| Heat Flow Feature: | 23.26w/m2*mV | Cold And Hot Plate Heat Transferring Area: | 150×150(mm) |
| Cold And Hot Plate Adjustable Gap Distance: | 0-160(mm) | ||
| High Light: | Thermal Conductivity Properties Tester,ASTM Thermal Conductivity Properties Tester,ISO 8301 Thermal Conductivity Tester |
||

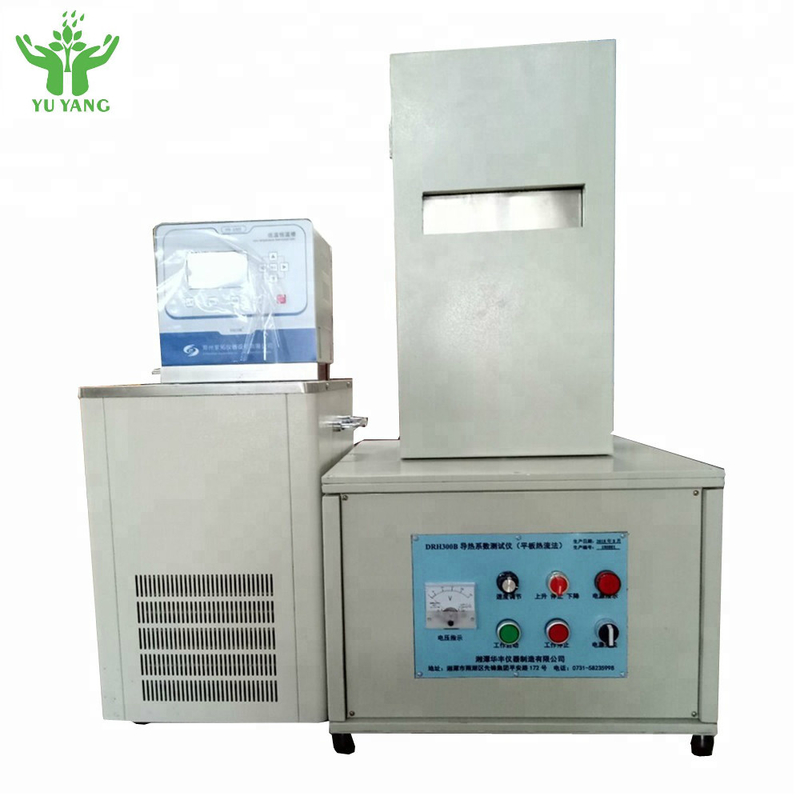

ASTM C518 Steady-State Thermal Conductivity Properties Tester by Heat Flow Meter
Description:
The popular way that using the heat flow meter to test the thermal conductivity
and resistivity, together with the computer can achieve the auto inspection and
report generation.
This testing method easy, quick and good repeatability, which is suitable for the
heat transferring R&D of the metal materials. It can also used for the test of
plastic, rubber, ceramic, glass, graphite and other heat insulating material.
Standard:
ISO 8301 Thermal insulation -- Determination of steady-state thermal resistance
and related properties -- Heat flow meter apparatus
GB/T 10295 Thermal insulation -- Determination of steady-state thermal
resistance and related properties -- Heat flow meter apparatus

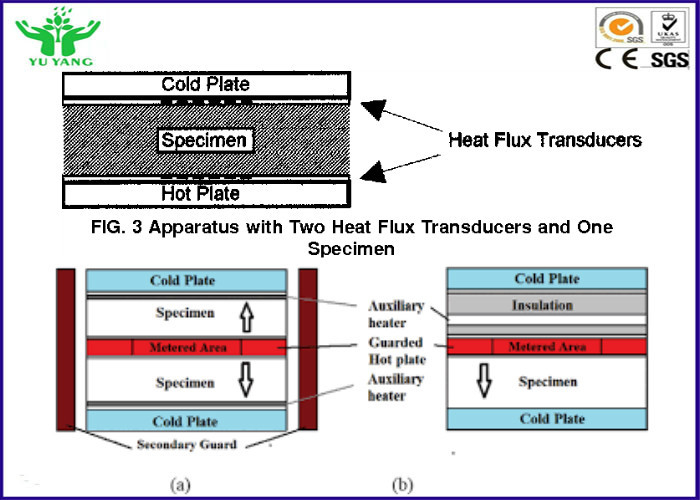

ASTM C518 Standard Test Method for Steady-State Thermal Transmission
Properties by Means of the Heat Flow Meter Apparatus
EN 12667 Thermal performance of building materials and products -
Determination of thermal resistance by means of guarded hot plate and heat
flow meter methods - Products of high and medium thermal resistance;
Specification:
1. The area of heat conductivity: sheet sample 0.01-10W/mk, accuracy less than
3%.
2. Thermal resistance measurement: 0.1~8 m2K/W
3. Sample dimensions: 100*100mm, thickness 5 ~20mm.
4. Cold surface: 10℃ ~ 50℃, digital displayer to detect the temperature, 0.1
level accuracy. DPI 0.01℃.
5. Heat surface temp control: room temp.- 99.99℃, use high temp digital
displayer to detect the temperature, 0.1 level accuracy. DPI 0.01 ℃. The flat type
heater, two-way controllable.
6. Cold surface use water bath cooling.

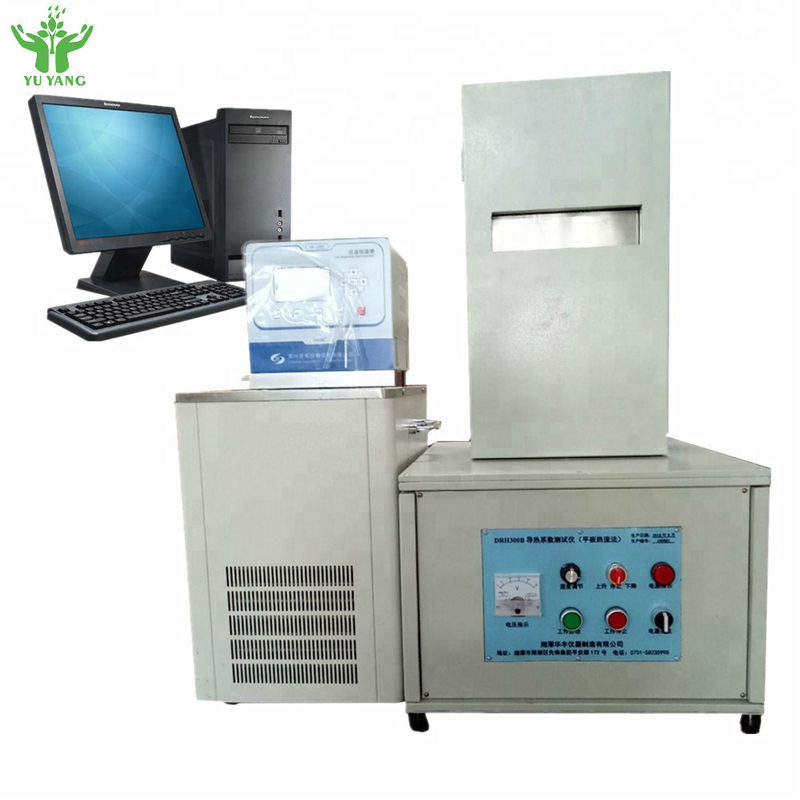

7. Use computer to test automatically.
8. Use WPY heat flow meter, heat flow feature 23.26w/m2*mV.
9. Use Plexiglas’s wind cover, so that the whole test course can be observed
directly.
10. Cold and hot plate heat transferring area: 150×150(mm)
11. Cold and hot plate adjustable gap distance: 0-160(mm)
| The area of heat conductivity | sheet sample 0.01-10W/mk |
| Accuracy |
less than 3% |
| Thermal resistance measurement | 0.1~8 m2K/W |
| Sample dimensions | 100*100mm, thickness 5 ~20mm |
| Cold surface | 10℃ ~ 50℃ |
| Heat surface temp control | room temp- 99.99℃ |
| Heat flow feature | 23.26w/m2*mV |
| Cold and hot plate heat transferring area | 150×150(mm) |
| Cold and hot plate adjustable gap distance | 0-160(mm) |
