| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | GB/T 5169.5, GB/T 4706.1, IEC60695-11-5, IEC60695-2-2 |
| Model Number: | YY020 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100sets per month |
| Materials: | Stainless Steel | Standard: | CNS-3556,JIS-K6301,ASTM-D2436 |
|---|---|---|---|
| Temp Range: | Room Temp +10ºC--300ºC | Airch Ang Rate: | 5 -- 200 (3 --250)times/per Hour |
| Standards: | Air Change Rate | Suspension Frame Motor Speed: | 8-10 Rpm |
| Warranty: | 1 Year | Power Source[K.W.: | 5 |
| High Light: | ASTM E662 Smoke Density Tester,Stainless Steel Smoke Density Tester,ASTM E662 Standard Flammability Test Chamber |
||

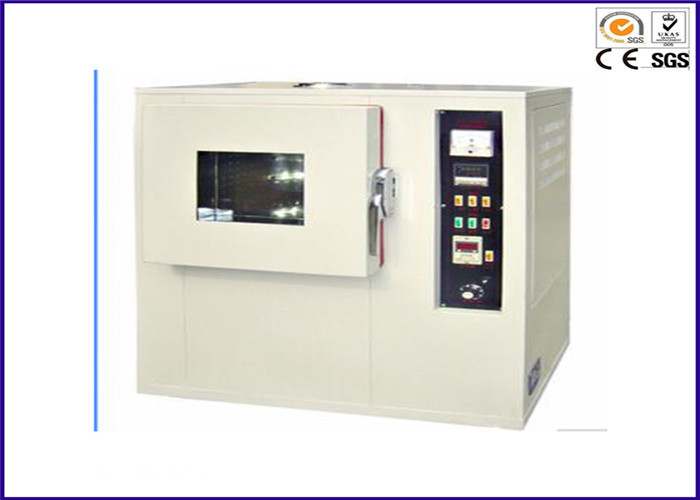

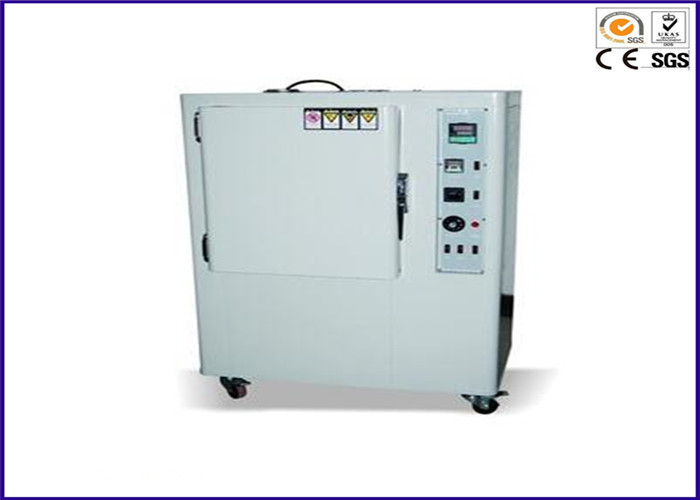

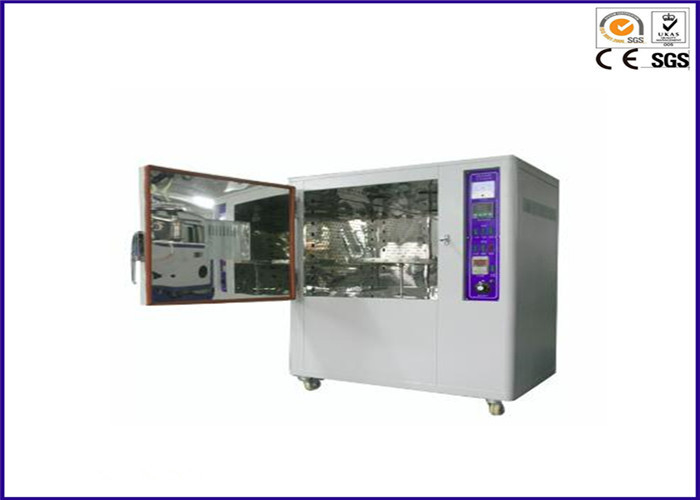

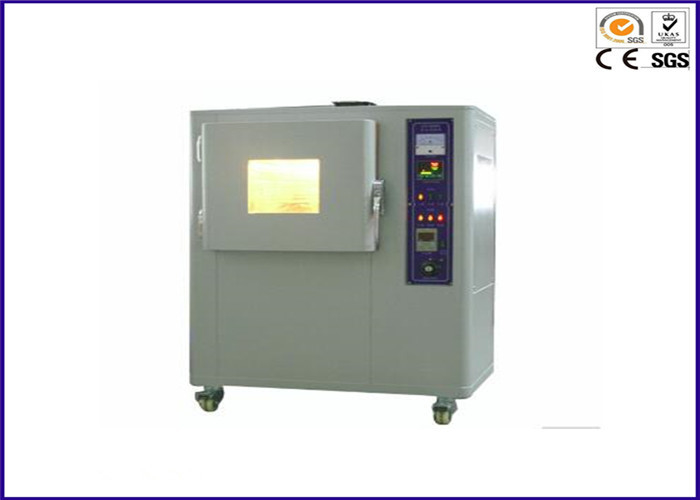

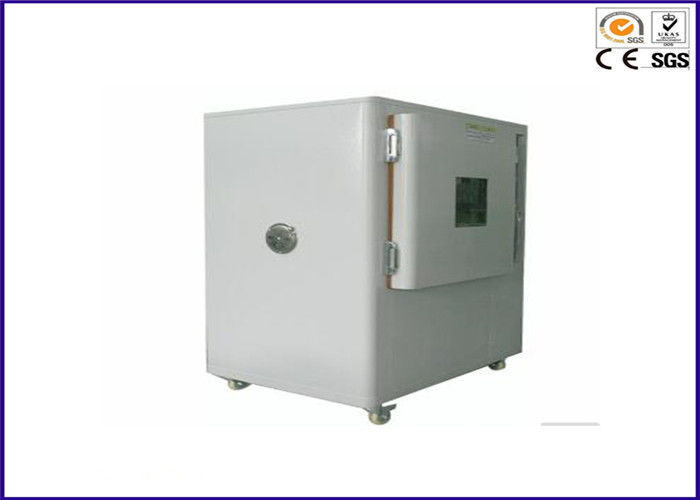

ASTM E662 Standard Stainless Steel Fire Testing Smoke Density Tester
Equipment summary:
ASTM-D2436 Hot Air Circulatory Control System Aging Test Chamber is to promote the deterioration of vulcanize, and then to calculate the change rate of tensile and elongation. This testing machine is equipped with hot air circulatory control system
which to ensure uniform distribution of temperature. Generally consider being tested 24H in the 70 degree is theoretically equal to 6 months exposed at the outside atmosphere.
Corresponding standard:
CNS-3556,JIS-K6301,ASTM-D2436
Applicable industries:
ASTM-D2436 Hot Air Circulatory Control System Aging Test Chamber is widely used in paint, resins, plastics, printing and packaging, aluminum, adhesives, auto,cosmetics, metals, electronics, electroplating, medicine, etc..
| Specification | |||
| Model | AUTO-2008 | AUTO-2009 | |
| Internal Dim.W×H×D(mm) | 450×500×450 | 600×600×600 | |
| External Dim.W×H×D(mm) | 1180×1350×750 | 1330×1450×900 | |
| Temp Range | Room temp +10ºC--300ºC | ||
| Features | Temp Constancy | ±0.5ºC | |
| Temp Uniformity | ±2ºC -- ±3ºC | ||
| Indication Resolution | ±0.1ºC | ||
| Heat-up Time(min) | 30 | 40 | |
| Material | Exterior | Stainless steel plate + Powder Coated | |
| Interior | SUS # 304 stainless steel plate | ||
| Insulation | Fiberglass wool | ||
| Systems | Circulation | siroco fan | |
| Heating | Chrome steel strip wire heater | ||
| Control | PID electronic digital control+S.C.R | ||
| Other Components | Vacuum glass observation window lighting,environmental control indicator lights | ||
| Experiment separation shelves,rotation experiment pams,ventilation adjustment mechanism | |||
| Airch ang Rate | 5 -- 200 (3 --250)times/per hour | ||
| Safety Devices | Overheating prevention circuit-breaket,control system,breakdown indicator right | ||
| Power Source[K.W.] | AC 1Ψ 220V;60/50Hz | ||
| 7 | 10 | ||
| Comply with ASTM D2436, JIS K7212, DIN 50011, BS 2648, IEC-540. | |||
| Air Change Rate for Standards | |||
| Standards | Air Change Rate | ||
| JIS-K212, JIS-K6723 JIS-A5756, JIS-C3004 JIS-C3005, JIS-K6301 | up 1 time/hr | ||
| ASTM-D2436, ASTM-D573 ASTM-5374, ASTM-D5423-93 | 100-200 times/hr | ||
| UL-746B | 100-200 times/hr | ||
| UL-1581.62.444 | 5-250 times/hr | ||
| ISO/DIS 4577 | 1 time/hr | ||
| BS-6746 | 8-20 times/hr | ||
| BS-903 | 8-20 times/hr | ||
| IEC-540 | 8-19 times/hr | ||
Feature:
1). Stainless steel SUS#304 made, easy setting operation.
2). Wing diffusion supply air circulation system, fresh air ventilation can be arbitrary adjustment.

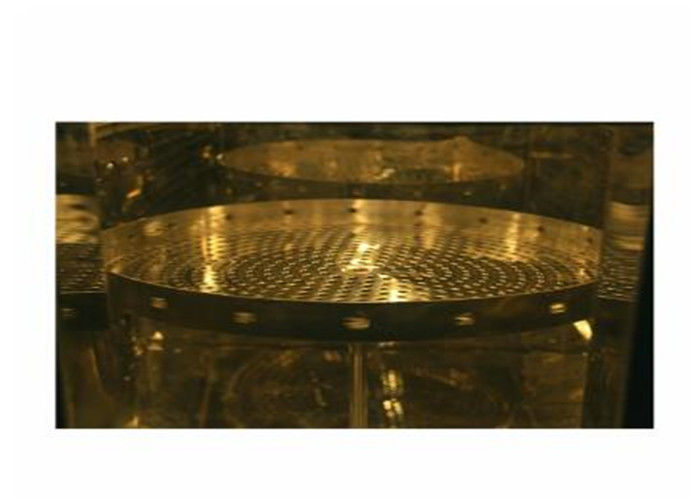

3). Internal rotary free dismantling, suspension frame motor speed is 8-10 rpm.
4). Ventilation measurement function.
5). Optional accessories( Temp. Recorder, calibrated rack for 9 points calibration)
6). Best after sales service: One year free parts maintenance.
7). Meet international test standards.
