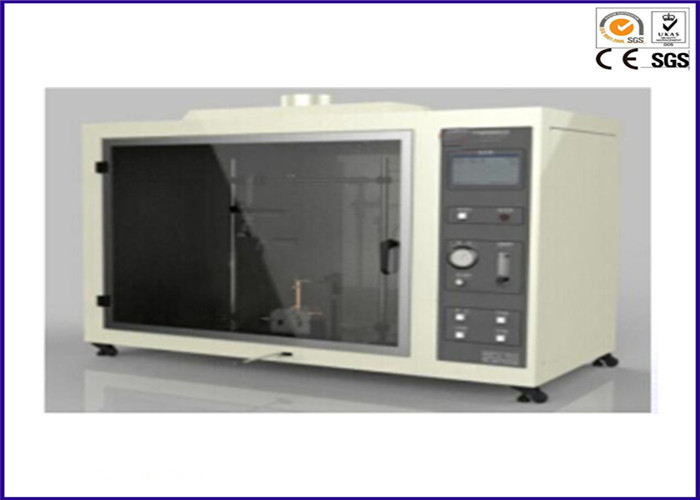

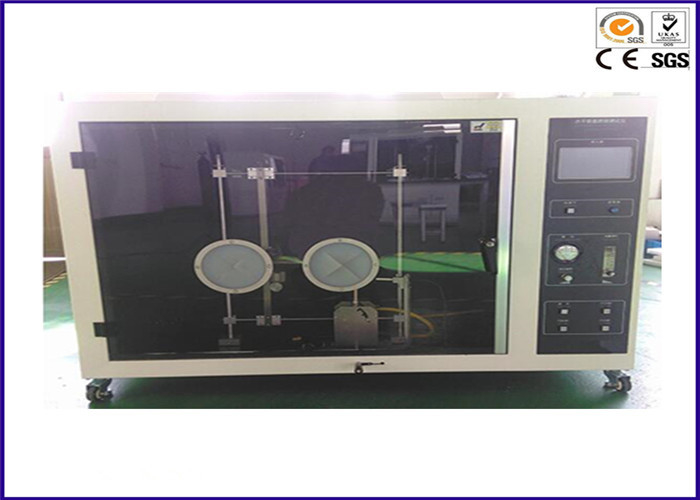

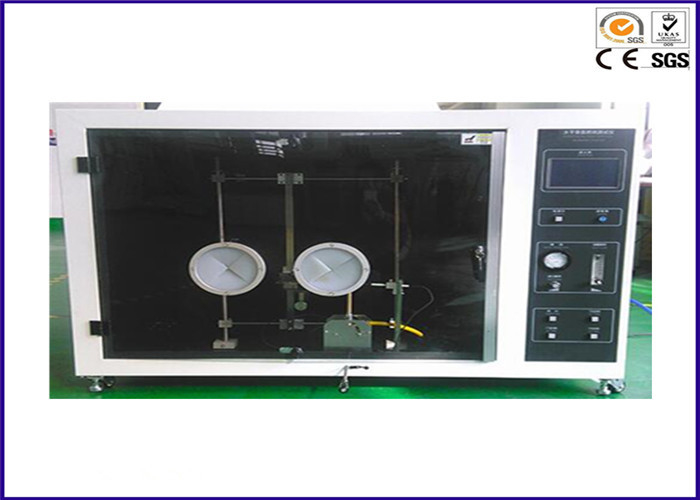

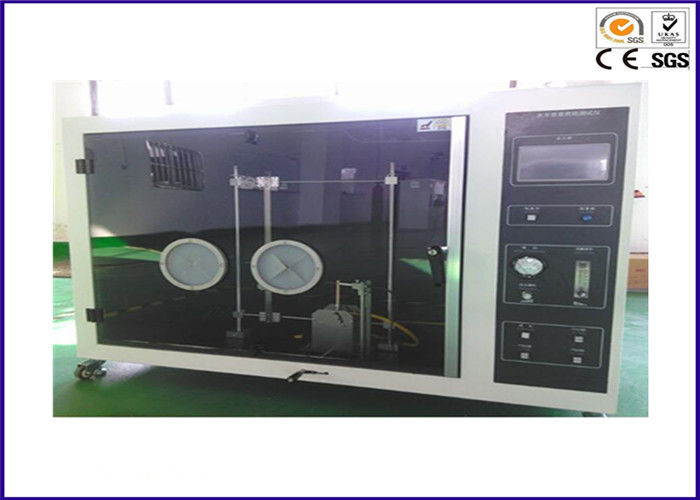

Plastic Material Horizontal and Vertical Burning Tester UL94

Plastic Material Horizontal and Vertical Burning Tester UL94

Introduction:

Test the flammability of the plastic material spare part in appliances;

Flammability, combustion speed, flame spread, the intensity of combustion can be acquired during test automatically and precisely;

Standards:

Horizontal burning test:UL HB,IEC 60695-11-10,IEC 60707,ISO 1210,GB/T 2408;

50W vertical burning test:UL94 V0,V1,V2,IEC 60695-11-10,ISO 1210,GB/T 2408;

500Wvertical burning test: UL94 5VA,5VB,IEC 60695-11-20,ISO 9770,GB/T 5169.17;

Thin-film material burning test: VTM-0,VTM-1,VTM-2,ISO 9773;

Foam material burning test: HF-1,HF-2,HBF,ISO 9772,GB/T 8332;

Features:

1. Combustion chamber 0.7 CBM.

2. Large view window made of Acrylic sheet;

3. Working table cabinet is optional;

4. Burner calibration kit is optional;

5. Burner angel adjustable 0, 20, 45;

6. Humboldt Tirrill burner made in USA inner diameter 9.5±0.3mm;

7. Fan on the top to evacuate the exhaust during combustion test;

8. MFC control the height of flame;

9. The sensor enable accurate position, the test starts timing automatically;

10. Differential pressure gauge enable gas back pressure;

11. Auto Electric spark ignition;

12. PLC+7" digital display;

13. Liner combustion speed;

14. Set test time, ignition time;

15. Calculate Liner combustion speed, display and save the data;

16. Compare the standard referential data and the test result;

17. Horizontal or vertical test program changeable;

18. The alarm rings when the flame shock lasts 10s;

19. The gas supply is cut automatically when no operation is conducted in the chamber for 10 min.;

Specifications:
