| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | YYF015 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7-30 Days |
| Payment Terms: | T/T |
| Supply Ability: | 5 Pcs Per Month |
| Product Name: | BS 476-6 Combustion Test Apparatus | Standard: | BS 476-6 |
|---|---|---|---|
| Application: | Building Materials | Flow: | Gas Flow For Burner Adjustable From 0 To 5 Nl/min |
| Power Supply: | 220V 50Hz | Pressure: | 1kPa |
| High Light: | Construction Materials Fire Test Equipment,BS 476-6 Lab Fire Test Equipment,BS 476-6 Combustion Test Apparatus |
||

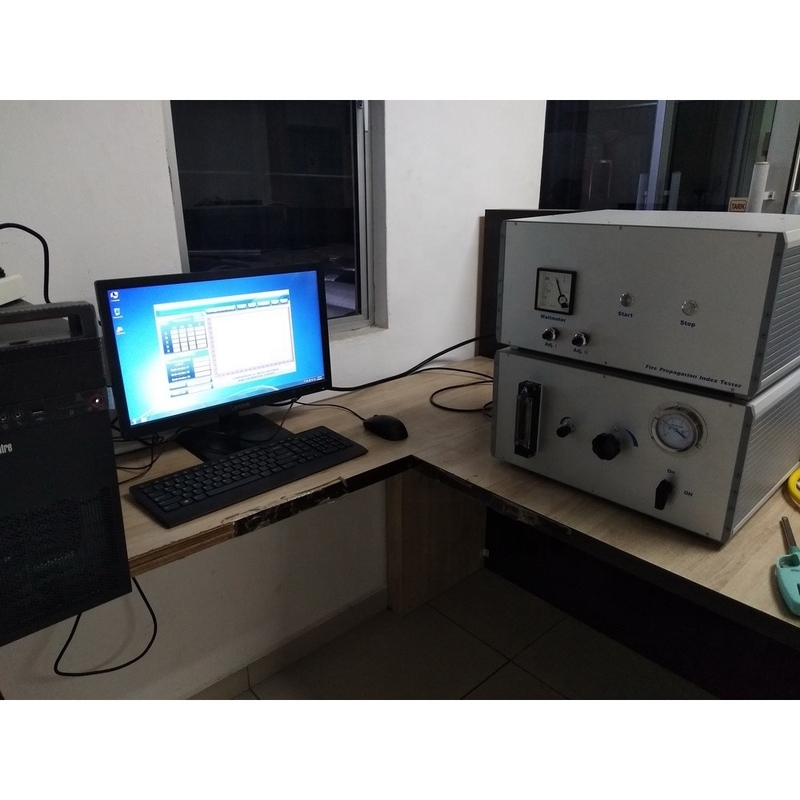

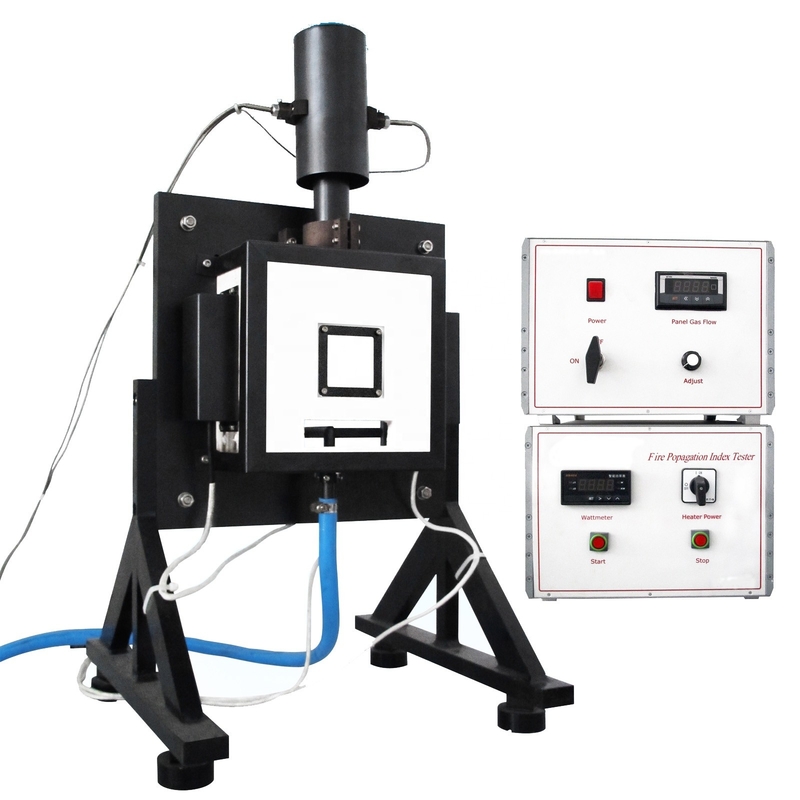

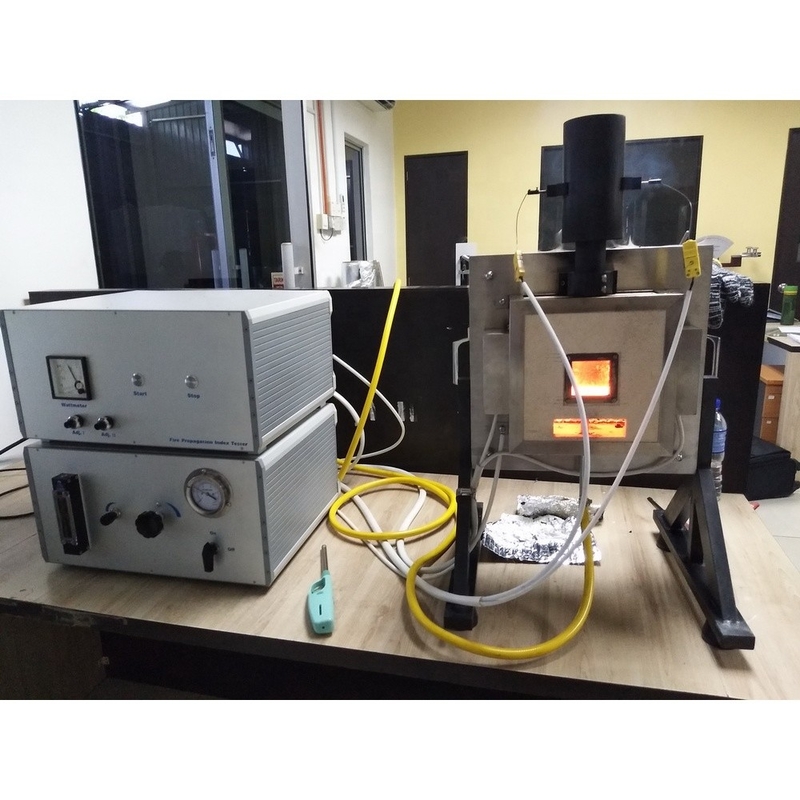

BS 476-6 Combustion Test Apparatus, Laboratory Fire Test Equipment For Construction Materials
Introduction:
BS 476 part 6 specifies a method of test, the result being expressed as a fire propagation index, BS 476-6 Combustion Test Apparatus Fire Test Machine For Building Materials provides a comparative measure of the contribution to the growth of fire made by an essentially flat material, composite or assembly. It is primarily intended for the assessment of the performance of internal wall and ceiling linings.
Standard:
BS 476-6: Fire test to Building Material - Fire Propagation
Feature:
1, Stainless steel support frame and Calcium silicate board combustion chamber.
2, Three kinds of sample holders for different thickness of the specimens.
3, Low reflective black finished mild steel Chimney and Cowl assembly complete with thermocouple mounting points.
4, Compliant stainless steel gas burner.
5, Two K type mineral insulated thermocouples complete with ceramic insulators.
6, Two pencil type heaters with 1000w installed in combustion chamber.
7, Control gas instrumentation including electronic gas on/off valve, flow regulating valve, flow meter and manometer.
8, Intelligent single phase power controller with feedback loop for accurate control of electric heating elements
Specification:
| Product Name | BS 476-6 Combustion Test Apparatus Fire Test Machine For Building Materials |
| Ambient Temperature | Operating 10°C to 35°C |
| Gas Supplies | The gas supply specified in the Standard is Standard test gas G112, as specified in BS 4947 |
| Flow | Gas flow for burner adjustable from 0 to 5 nl/min |
| Pressure | 1 K Pa |
| Dimensions:Apparatus | 400mm (W) x 600mm x (H) x 300mm (D) |
| Control module | 400mm (W) x 500mm x (H) x 400mm (D) |
| Weight | about 50kg |
