| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | GB/T 5169.5, GB/T 4706.1, IEC60695-11-5, IEC60695-2-2 |
| Model Number: | YY035 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10 |
| Packaging Details: | Plywood Box |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100sets per month |
| Standard: | MT182、MT141、MT914 | Timing Accuracy: | Up To 0.1s |
|---|---|---|---|
| The Combustion Chamber Size: | 660 * 660 * 1050mm | Control Box Size: | 910 * 660 * 1050mm |
| The Combustion Time: | 0 ~ 99.99 Seconds | Flame And Flameless Timer: | 0 ~ 99.99 Seconds |
| Power Supply: | AC220v; 50Hz; 50W | The Flame Height: | 150mm-180mm |
| High Light: | MT182 Equipped Combustion Testing Machine,Alcohol Burner Combustion Testing Machine |
||

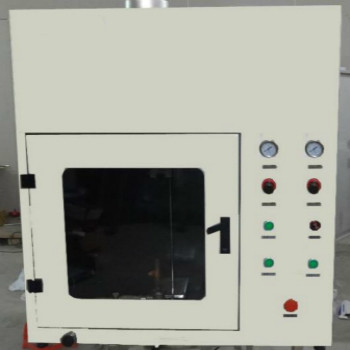

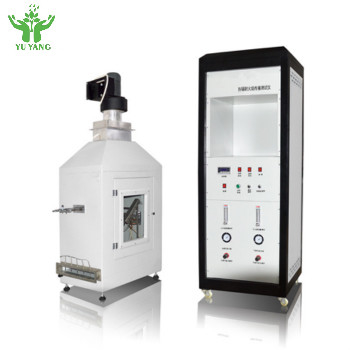

MT182 Equipped With Stalinite Window Alcohol Burner Combustion Testing Machine
Introduction
This tester is developed and manufactured in accordance with MT182; The instrument is suitable for non-metallic products for coal mining under laboratory conditions to do the alcohol burner combustion test burning test;
Standard:
MT182
MT141 Plastic net protecting top-plane in coal mining
MT914
Technical Parameters:
1. Test box is equipped with exhaust fan and stalinite window.
2. The test box is used with stainless steel cabinet making.
3. Equipped with flame temperature calibration package and flame height detection ruler
4. PLC + HMI automatic control, accurate timing, automatic calculate the samples to get the average value of the timing;
5. Timing accuracy up to 0.1s
6. The combustion chamber size is 660 * 660 * 1050mm
7. Control box size 910 * 660 * 1050mm
Alcohol burner combustion tester instrument features
1. Alcohol burner fit to standard required;
2. Burning time is recorded automatic;
3. The flame height can be adjusted;
4. With a special exhaust system, exhaust gas discharged automatically.
Alcohol burner combustion test Instrument Index
1. The combustion time: 0 ~ 99.99 seconds could be set arbitrardily, accuracy ± 0.01 seconds.
2. Flame and flameless timer: 0 ~ 99.99 seconds, accuracy: ± 0.01 s;
3. Power Supply: AC220v; 50Hz; 50W;
4. Fuel: 5% (V / V) methanol and 95% (V / V) ethanol mixture (customer self-made);
5. The flame height: 150mm-180mm;
| Standard | MT182,MT141,MT914 |
| Timing accuracy | up to 0.1s |
| The combustion chamber size | 660 * 660 * 1050mm |
| Control box size | 910 * 660 * 1050mm |
| The combustion time | 0 ~ 99.99 seconds |
| Flame and flameless timer | 0 ~ 99.99 seconds |
| Power Supply | AC220v; 50Hz; 50W |
| The flame height | 150mm-180mm |
