NF P92-503 AC 220V 15A Flexible Material Flammability Class Test Machine

NF P92-503 AC 220V 15A Flexible Material Flammability Class Test Machine

Overview

Flexible material flammability class test machine is professional designed to determine the flammability, fusion, inert class according to NF P 92-503 electrical burner test. It is for measurement of fire retardancy level and reaction to fire of flexible materials drapes, curtains, tight fitting decorative fabrics or wall covering. The machine provides solid data for describing the burn behavior of materials which is possible to make an essential contribution to preventative fire safety and reduce the risk of fire in buildings.

Standard

NF P 92-503, Electrical burner test used for flexible materials thickness no more than 5mm

Feature

1. Compact structure internal control system.

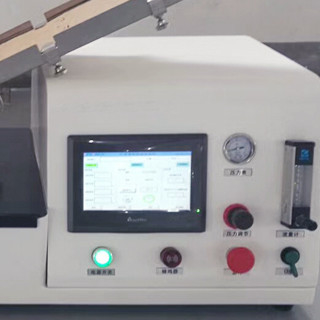

2. Touch screen control panel for easier checking testing results.

3. Inserted ball flowmeter for gas control.

4. Equipped heating element and electrical burner.

Specification

1, Applicable to French building materials and high-speed rail test standards.

2, In line with the test standard NFP 92-503.

3, The use of standard heat radiation furnace, the sample heat radiation at the same time, the application of small flame for combustion, and then observe the test flame propagation performance.

4, Metal base: 500mm * 300mm * 315mm.

5, Electric igniter ceramic core density of 1880kg / m3.

6, configured to withstand 500W sustained power of the resistance.

7. A voltage transformer, a voltage regulator, and a wattmeter.

8, equipped with precision rotor flow meter control propane gas flow rate, accuracy: FS ± 0.2%.

9, glass hood: gas flow rate of less than 0.2m / s.

10, desktop PC + Labview professional software control, can be set, display, storage of experimental data

11,Power supply: AC 220V 15A.

12. Dimension: 850mm×450mm×650mm

13. Weight: 35kg
