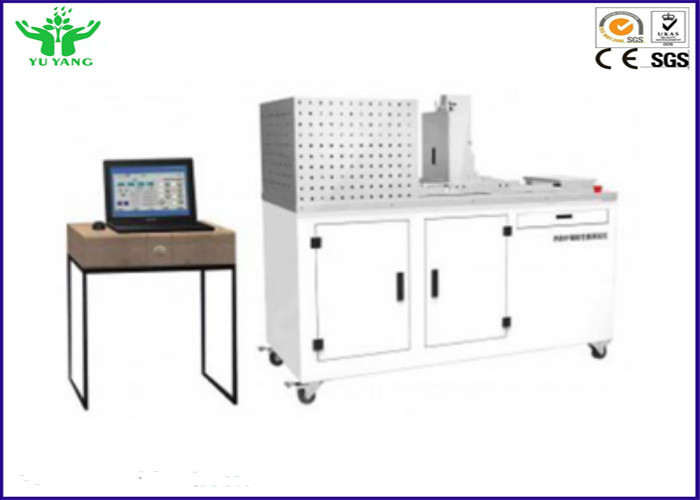

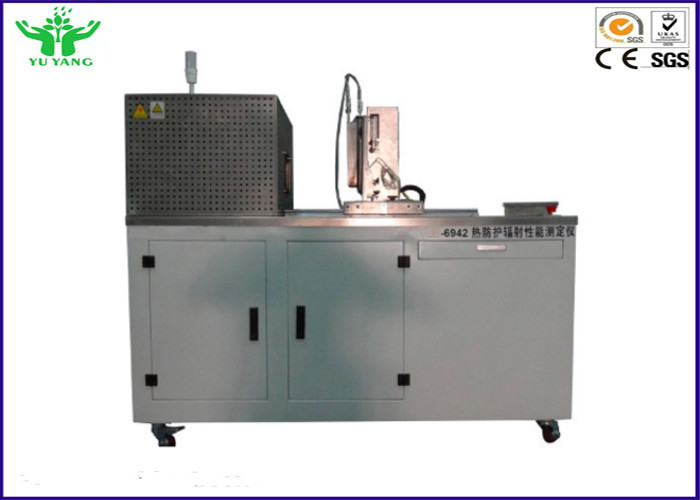

10-80KW/M2 Adjustable Protective Clothing Tester Against Radiant Heat Test

10kW/M2 ~ 80 KW/M2 Adjustable Protective Clothing Against Radiant Heat Tester

Description:

This Protection Against Radiant Heat Test Equipment is designed according to ISO6942 and EN366.

The test equipment has a user-friendly, intuitive, Windows-based application that provides a complete thermal control, fault detection and data recording. RPP system configuration and burn prediction also included in the Thermo DAC.

User-defined test allows the operator to define non-standard test conditions and custom tolerances. You can view multiple graphs display with zoom feature to view specific conditions in details.

Real-time statistics can be applied to the test data within any user selected time range.

This Protection Against Radiant Heat Test Equipment is used for performance evaluation against heat and flame protective clothing when faced with short flame thermal motion. Imposed certain calorie density (80KW/m ² ± 5%) of heat, under the specimens that composed of protective clothing. When measuring the growth rate of heat through over time (time: seconds, temperature: ºC) by heat meter that installed on test sample, to determine the insulation properties of sample materials.

This Protection Against Radiant Heat Test Equipment is also applied to measure the fabric of single-layer or multi-layer under high temperature thermal radiation properties, and fire-retardant insulation of plates.

Standards:

EN 366: Protective clothing. Protection against heat and fire. Method of test: evaluation of materials and material assemblies when exposed to a source of radiant heat.

ISO 6942: specifies two complementary methods (method A and method B) for determining the behavior of materials for heat protective clothing subjected to heat radiation.

Features:

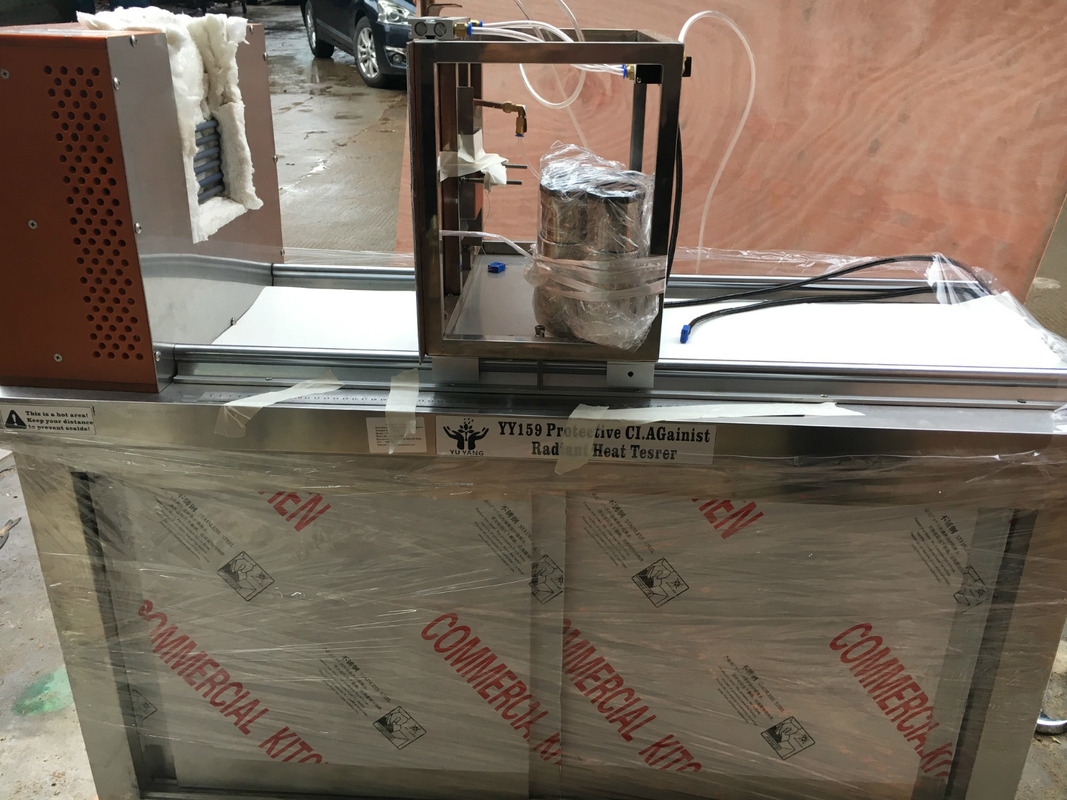

1, The Protection Against Radiant Heat Test Equipment consists of radiation device, the specimen clamping device and control system;

2, Stainless steel frame structure, appearance, corrosion resistance, easy to clean;

3, Specimen size: 230mm x 80mm;

4, Radiation source is made up of 5 infrared quartz lamp, power 500W, and provide at least 80kW/m2radiant heat;

5, Standard copper heat flow meter, heat measuring range 0~100kw/m2;

6, A cooling device (cooling water inlet);

7, Intelligent water circulation control system;

8, The water temperature alarm function; ensure the safe operation and test stability;

9, Computer control system; to achieve more intelligent test and easy to operate;

10, Timer accuracy is 1s;

11, Constantan thermocouple: measurement Accuracy 0.1 ºC, meet the design requirements of ISO 6942

12, Metal protection shutters, with water cooling device;

13, Computer records and displays real-time continuous temperature curve;

14, Automatic operation mode, test time can be set freely.

15, According to ISO 6942-2002 (EN366) standards, there are two methods to test the thermal protection.

The first method (A method) is a specimen to withstand a certain amount of heat radiation, recording changes in appearance in order to reproduce the material the inclement conditions.

The second method (B method) is a calorimeter inside a specimen back, when heat conduction from samples back, recording temperature trends over time, in order to determine the level of thermal radiation transfer.

Specification:
