| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO2403 BS3181 ASTMD1448; ISO1136 BS3183 ASTMD1282A |
| Model Number: | YY079 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10 |
| Packaging Details: | Plywood Box |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 sets per month |
| Standard: | 16 CFR Part 1633 | Combustion Chamber And Gas-collecting Hood Size: | 3048 * 3658 * 2438 Mm(L*W*H) |
|---|---|---|---|
| Carbon Dioxide Measurement Range: | 0 ~ 6.0%, Accuracy: ±0.1% | Carbon Monoxide Measurement Range: | 0 ~ 1.0%, Accuracy: ± 0.02% |
| Combustion Gas: | Propane | Gas Flow Accuracy: | ≤ 0.1l/min (when Flow Is 12.9l/min) ≤ 0.05L/min (when Flow Is 6.6 L/min) |
| Video System: | Meet The Standard Mentions Entire Live Video System | Warranty: | 1 Year |
| High Light: | Mattresses Flammability Testing Equipment,Propane Flammability Testing Equipment,Mattresses Flammability Testing Machine |
||
CFR1633 Mattresses Flammability Testing Equipment (Open Flame)
Application:

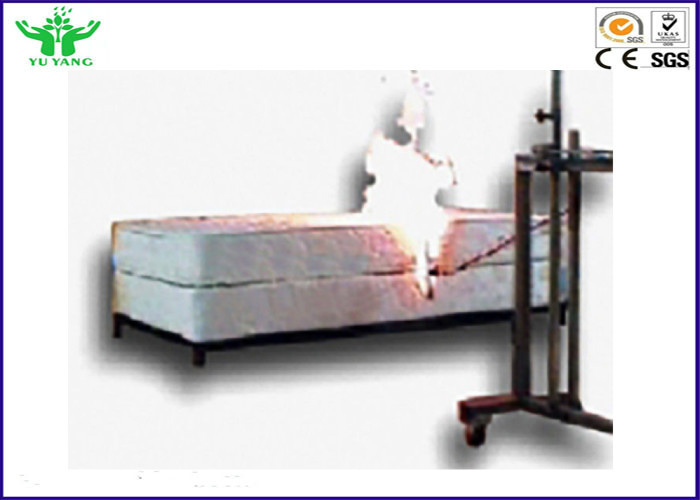

The machine is used to evaluate the fire progression and energy output in a mattress or a mattress set when subjected to an ignition source approximate to burning bed clothes.
16 CFR Part 1633 is a federal standard in USA and all manufactured or imported mattresses and mattress sets must meet this standard.
Standard:
16 CFR Part 1633 "Standard for the Flammability (open flame) of Mattresses sets".
Features:
The mattress or mattress set is located on top of a steel rig and exposed to two T-shaped burners with a total burner heat output of 27 kW. The side burner is applied for 50 seconds and the top burner is applied for 70 seconds. The fire is then allowed to develop freely. The smoke gases produced during the test are collected by a hood and exhaust system from where samples are taken for gas analysis. Heat release rate is measured continuously. The peak rate of heat release of may not exceed 200 kW and the total heat release in the first 10 minutes of the test of may not exceed 15 MJ.
Main parameters:
1. Combustion chamber and gas-collecting hood: size 3048 * 3658 * 2438 mm (length x width x height).
2. Gas analyzer:
Carbon dioxide measurement range: 0 ~ 6.0%, accuracy: ±0.1%;
Carbon monoxide measurement range: 0 ~ 1.0%, accuracy: ± 0.02%.
3. Burner device, includes mattress burner device, sofa burner device and upholstered chair burner device. It complies 16 CFR Part 1633 clause 7 and the photos of clause 3, 4, 5 and 6.
4. Waste gas treatment device: the combustion waste gas could be directly discharged.
5. Gas supply system:
Combustion gas: propane
Gas flow accuracy: ≤ 0.1l/min (when flow is 12.9l/min)
≤ 0.05L/min (when flow is 6.6 L/min).
6. Video system: meet the standard mentions entire live video system.
|
Standard |
16 CFR Part 1633 |
| Combustion chamber and gas-collecting hood size | 3048 * 3658 * 2438 mm(L*W*H) |
| Carbon dioxide measurement range | 0 ~ 6.0%, accuracy: ±0.1% |
| Carbon monoxide measurement range | 0 ~ 1.0%, accuracy: ± 0.02% |
| Combustion gas | Propane |
| Gas flow accuracy |
≤ 0.1l/min (when flow is 12.9l/min) ≤ 0.05L/min (when flow is 6.6 L/min) |
| Video system | Meet the standard mentions entire live video system |
| Warranty | 1 year |
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Fire Testing Equipment,Environmental Test Chamber,Textile Testing Equipment,Toys Testing Equipment,Wire and Cable Test Machine
3. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire
Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.
DONGGUAN YUYANG INSTRUMENT CO.,LTD is Located in Wanjiang District (Dongguan City, Guangdong Province,China),a famous historical town with prosperous industry and convenient transportation.
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.
Decades of research and development strengthen the leading edge of YUYANG in this field, and established as an crucial role in R&D on high quality and high-cost performance of testing equipment. YUYANG's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, lithium battery, LED, photoelectricity, mobile, plastic and rubber, display, telecommunication, chemical industry, aerospace, building material and product, wire and cable, toys, furniture, textile and fabrix, etc. All YUYANG testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA,CEN and so on.
DONGGUAN YUYANG INSTRUMENT CO.,LTD looks forward to cooperating with customer all over the world.
If you are interested in any of our products or would like to discuss a custom order. Please feel free to contact us. We are looking forward to forming succesful business with new clients around the world in the near future.
