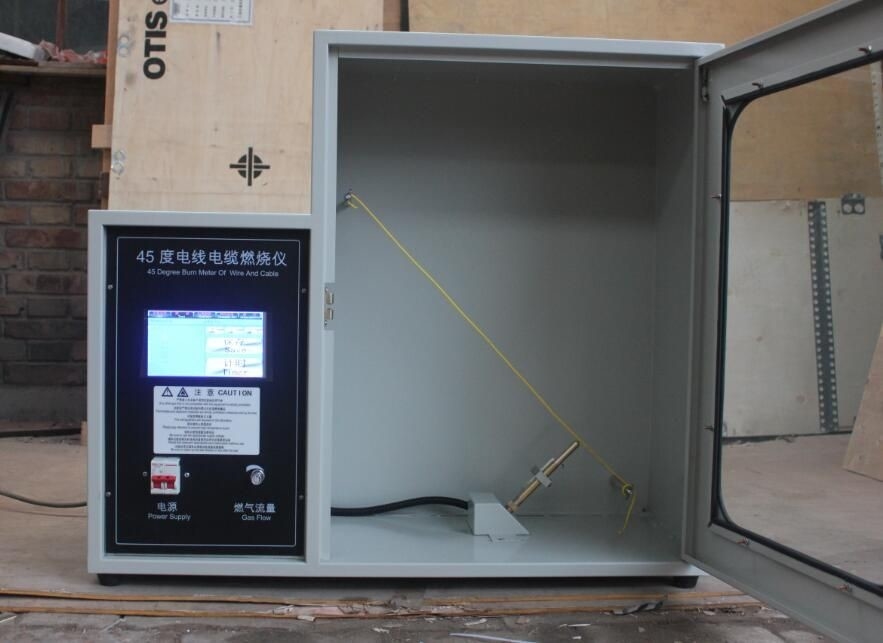

ISO 6722-1 Single Core Flammability Testing Machine For Cable Flame Retardant Performance

ISO 6722-1 Single Core Flammability Testing Machine For Cable Flame Retardant Performance

  • ISO 6722-1 Single Core Flammability Testing Machine For Cable Flame Retardant Performance
  • ISO 6722-1 Single Core Flammability Testing Machine For Cable Flame Retardant Performance
  • ISO 6722-1 Single Core Flammability Testing Machine For Cable Flame Retardant Performance
  • ISO 6722-1 Single Core Flammability Testing Machine For Cable Flame Retardant Performance
  • ISO 6722-1 Single Core Flammability Testing Machine For Cable Flame Retardant Performance
  • ISO 6722-1 Single Core Flammability Testing Machine For Cable Flame Retardant Performance
ISO 6722-1 Single Core Flammability Testing Machine For Cable Flame Retardant Performance
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO2403 BS3181 ASTMD1448; ISO1136 BS3183 ASTMD1282A
Model Number: YY079
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $10
Packaging Details: Plywood Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Standard: ISO 6722-1、GB/T 25085 Materials: Stainless Steel
Burning Flame High: 100mm Inner Blue Cone For Flame Length: 50mm
Rotor Flow Meter: 0.1 L ~ 1 L/min Dimension: 1000 (W) * 600(D) * 1000 MM (H)
Power Supply: AC220V 50/60 HZ 1A Gas Source: Propane Or Natural Gas
Warranty: 1 Year
High Light:

Cable Flammability Testing Machine

,

Propane Flammability Testing Machine

,

Cable Flammability Testing Equipment

ISO 6722-1 Single Core Cable Flame Retardant Performance Tester



Application:

It is used for road vehicles 60V and 600V tilt secondary standard resistance of single core cable, car with no shielding level flame retardant in low pressure test method standard, time standard and international automobile wire used for assessment of the performance of the cable in the combustion state, test both ends fixed and perpendicular to the three sides is a metal plate metal mask, the torch lit, make the tip of the blue inner cone in 50 mm away from the sample bottom place, want to contact on the sample surface, and the sample surface contact, sample and horizontal tilt 45 ℃.



Standard:

ISO 6722-1 Road vehicles -- 60 V and 600 V single-core cables -- Part 1: Dimensions, test methods and requirements for copper conductor cables

GB/T 25085 Road Vehicles – 60V and 600V



Parameter:

1. Metal cover: the electric cabinet and the metal cover are combined together, SUS304 stainless steel;

2. Combustion burner: the import of American hamburger with diameter of 9 mm, burning flame high is 100 mm, inner blue cone for flame length of 50 mm;

3. Set the burning time reaches the preset time, the machine will automatically stop;

4. Ignition for automatic high pressure ignition;

5. Rotor flow meter: 0.1 L ~ 1 L/min ;

6. Dimension: 1000 (W) * 600(D) * 1000 MM (H) ;

7. Power supply: AC220V 50/60 HZ 1A;

8. Gas source: propane or natural gas.

Standard ISO 6722-1,GB/T 25085
Materials Stainless steel
Burning flame high 100mm
Inner blue cone for flame length 50mm
Rotor flow meter 0.1 L ~ 1 L/min
Dimension 1000 (W) * 600(D) * 1000 MM (H)
Power supply AC220V 50/60 HZ 1A
Gas source Propane or natural gas
Warranty 1 year



FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Fire Testing Equipment,Environmental Test Chamber,Textile Testing Equipment,Toys Testing Equipment,Wire and Cable Test Machine
3. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire
Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.


ISO 6722-1 Single Core Flammability Testing Machine For Cable Flame Retardant Performance 0
