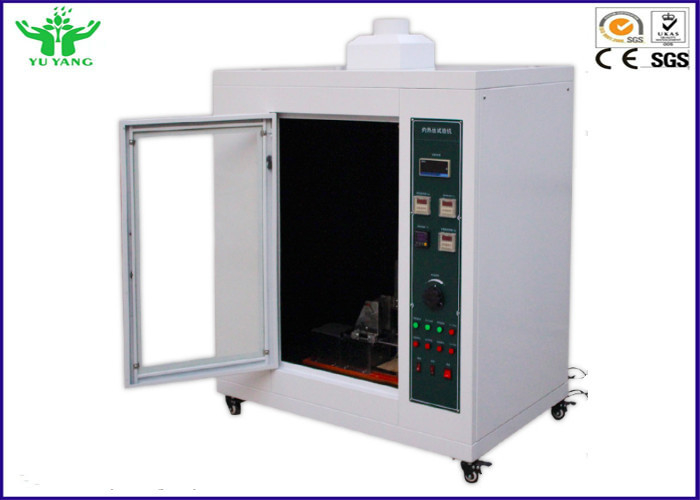

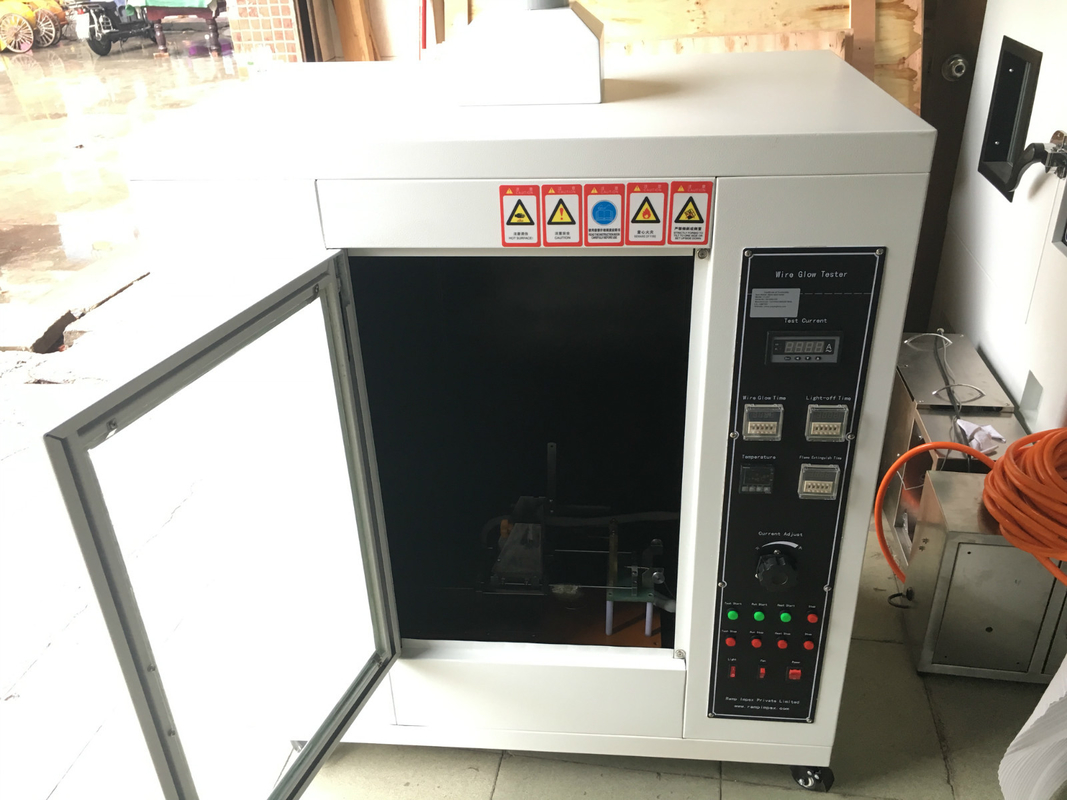

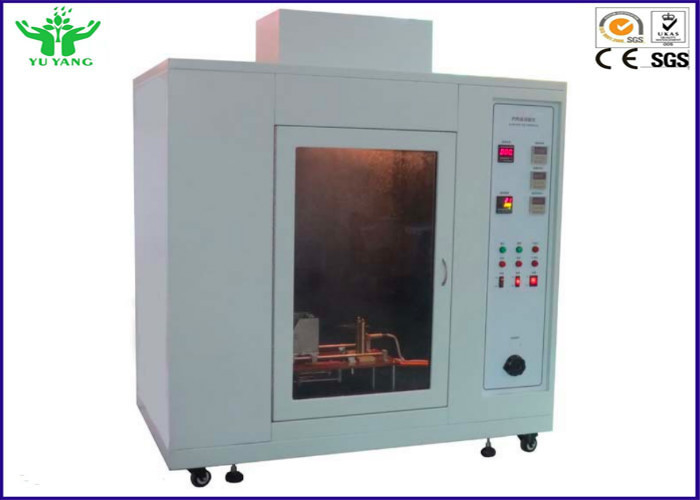

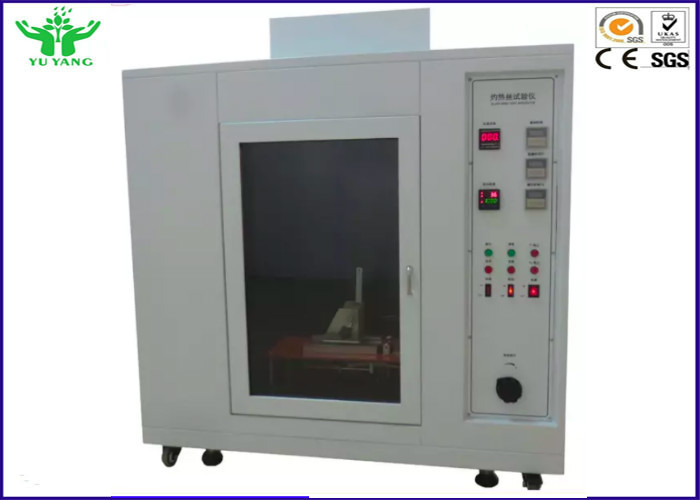

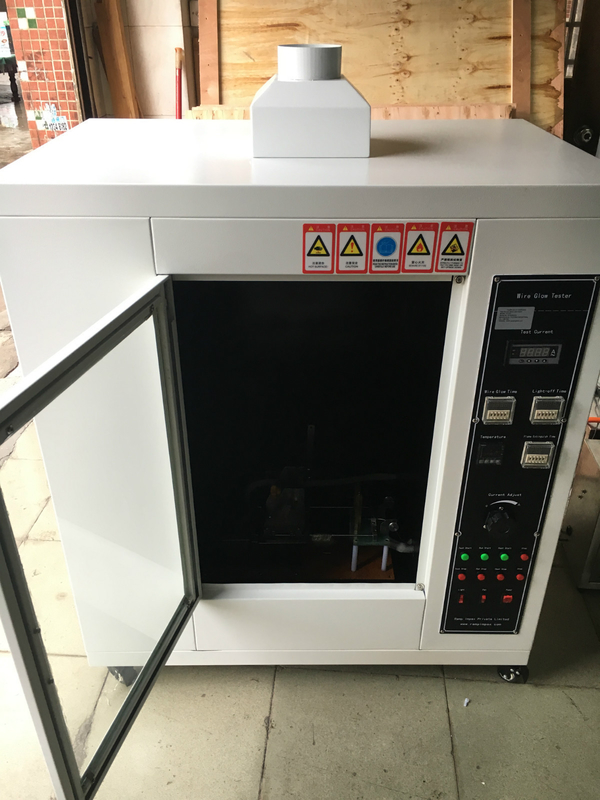

Ul 746a Glow Wire Tester Using Electricity Heating Regulation Material

Ul 746a Glow Wire Tester Using Electricity Heating Regulation Material

  • Ul 746a Glow Wire Tester Using Electricity Heating Regulation Material
  • Ul 746a Glow Wire Tester Using Electricity Heating Regulation Material
  • Ul 746a Glow Wire Tester Using Electricity Heating Regulation Material
  • Ul 746a Glow Wire Tester Using Electricity Heating Regulation Material
  • Ul 746a Glow Wire Tester Using Electricity Heating Regulation Material
Ul 746a Glow Wire Tester Using Electricity Heating Regulation Material
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO2403 BS3181 ASTMD1448; ISO1136 BS3183 ASTMD1282A
Model Number: YY081
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $10
Packaging Details: Plywood Box
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Test Time: 30s+0.1s(1-999.9s Data Display Presentable) Movement Velocity Of Specimen: 10mm/s-25mm/s
Max Thermal Depth: 7mm±0.5mm(adjustable) Test Pressure Of Specimen: 1.0N±0.1N
Test Speed: 14mm /s Studio Volume: 0.5 M3
The Reference Standard: GB / T5169.10, IEC60695, UL746A Ignition Time: 0-999.9s ± 0.1s, Auto Record, Manual Pause
Thermocouple K Type Thermocouple: K Type Thermocouples Φ0.5mm
High Light:

14mm/s Glow Wire Tester

,

Flammability Glow Wire Tester

,

1.0N Glow Wire Test Equipment

Ul 746A Glow Wire Tester Using Electricity Heating Regulation Material



Description:
1. Glow wire tester Accord with IEC60695-2-10, UL 746A, GB/T5169.10, GB4706.1

2. Glow wire tester Using electricity heating regulation material (Ni80 / Cr20) of resistance wire (Φ 4 mm Ni-Cr alloy wire) to 0°C~ 1000°C in 1 min, then with 1.0 N vertically burn it 30s,measure the fire risk by product light-off or hold burning time ,also test light-off degree, light-off temperature (GWIT), flammability and combustible index (GWFI).

3. lab glow wire tester Suitable for lighting equipment, low voltage electric appliance, electrician instruments and material flammability testing, such as electrical and electronic products.



Features:

1. Glow wire tester is in accordance with IEC60695-2-10, UL 746A, GB/T5169.10, GB4706.1

2.Thermocouple: model K Type imported insulating thermal stabilized sheathed thermocouple, heat resistance 1100°c

3.Glow wire temperature: 500°c-960°c (presentable data display),temperature fluctuation<3°c

4.Test pressure of specimen: 1.0N±0.1N

5.Max thermal depth: 7mm±0.5mm(adjustable)

6.Movement velocity of specimen: 10mm/s-25mm/s

7.Test time: 30s+0.1s(1-999.9s data display presentable)



Advantages:

1. Can meet different test methods and standards, GB,ISO,ASTM test methods setting freely.

2. LCD display all the test result, data and curve.

3. Wrapping connector driving system to make working more stably and more precision.

4. Microcomputer controlling, all keyboard operation.

5. Automatic judgment materials slide adhesive state and sample test results between quantitative discrete analysis.

6. Static friction coefficient and dynamic friction coefficient option freely, flexible test.

7. Can save 6 test results and data and display the curve. Also with query function.



Specification:

1. The glow-wire temperature: 550 ~ 1000C adjustable, when 500 ~ 750C ±2C, when 750 ~ 1000C ± 5C

2, Burning time: 0-999.9s ± 0.1s adjustable (usually selected as the 30s)

3, Ignition time: 0-999.9s ± 0.1s, auto record, manual pause

4, Light-Off Time: 0-999.9s ± 0.1s, auto record, manual pause

5, Thermocouple: K type thermocouples Φ0.5mm

6, The glow-wire: Φ4 mm nickel chromium wire.

7, Hot depth: 7mm ± 0.5mm (1N ± 0.2N maintaining the pressure of hot into the sample)

8, Test speed: 14mm /s.

9, The testing process: test procedures automatic control, independent ventilation

10, The reference standard: GB / T5169.10, IEC60695, UL746A

11, Studio Volume: 0.5 m3

12, The device outside dimensions: 1000mm wide × 650mm deep × 1300mm high

Test time

30s+0.1s(1-999.9s data display presentable)

Movement velocity of specimen 10mm/s-25mm/s
Max thermal depth 7mm±0.5mm(adjustable)
Test pressure of specimen 1.0N±0.1N
Test speed 14mm /s.
Studio Volume 0.5 m3
The reference standard GB / T5169.10, IEC60695, UL746A
Ignition time 0-999.9s ± 0.1s, auto record, manual pause
Thermocouple K type thermocouples Φ0.5mm



FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Fire Testing Equipment,Environmental Test Chamber,Textile Testing Equipment,Toys Testing Equipment,Wire and Cable Test Machine
3. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire
Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.
