Textile Fabric Flammability Testing Equipment 45 Degree Burner Diameter 11mm

Textile Fabric Flammability Testing Equipment 45 Degree Burner Diameter 11mm

  • Textile Fabric Flammability Testing Equipment 45 Degree Burner Diameter 11mm
  • Textile Fabric Flammability Testing Equipment 45 Degree Burner Diameter 11mm
  • Textile Fabric Flammability Testing Equipment 45 Degree Burner Diameter 11mm
Textile Fabric Flammability Testing Equipment 45 Degree Burner Diameter 11mm
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: CE
Model Number: YY054
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $1200
Packaging Details: Wooden Box
Delivery Time: 5-30 Days
Payment Terms: T/T
Supply Ability: 10 Pcs Per Month
Contact Now
Detailed Product Description
Product Name: Textile Fabric Flammability Testing Equipment Material: Stainless Steel
Timing Range: 0.1~999.9S Burner: Diameter 11mm ± 0.3mm
Dimension: 580*410*860mm Power Supply: 220V AC 50HZ
High Light:

Flammability Testing Equipment 45Deg

,

11mm Burner Flammability Testing Equipment

,

Fabric Flammability Testing Machine

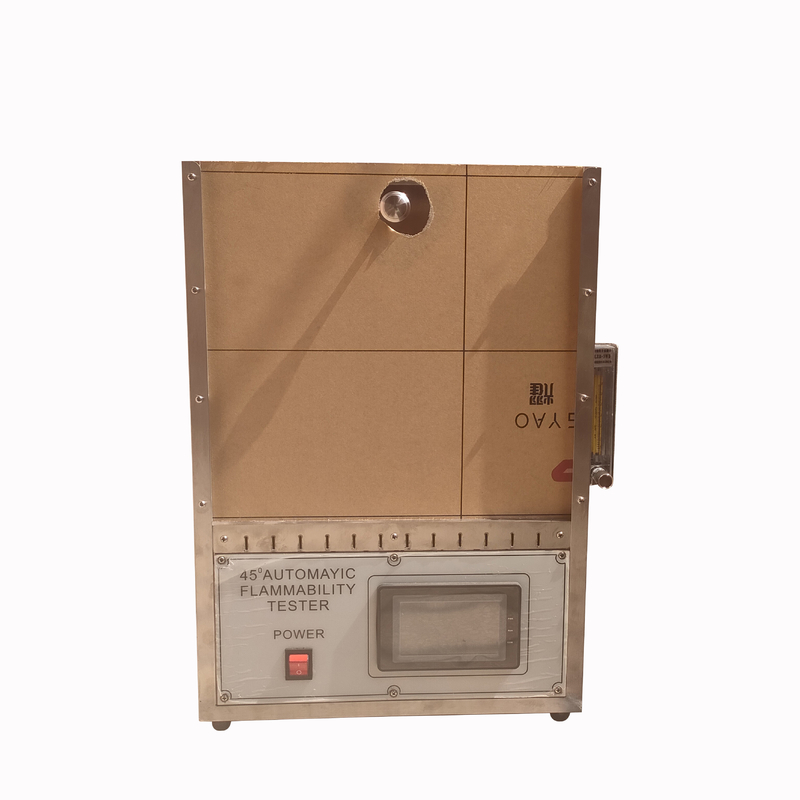

Textile Fabric Flammability Testing Equipment 45 Degree Flammability Tester

Introduction:

45 Degree Flammability Tester, to determine the fabric flammability under controlled conditions. Flammability Tester complies with ASTM D1230, FTMS191-5908, etc.

Application:

The flammability tester is used to determine the burning characteristics of textile under controlled condition. Stainless steeltest cabinets with glass observation panel provided with automatic timing of flames spread in 0.1-second increments from ignition. Brushing Device including Spare Nylon Brush.

Specification:

1. Display: 0-99.9S
2.Resolution: 0.1S
3.Ignition time: 0-99.0S
4.Burn size: 368×216×356mm
5.Outer dimension(L×W×H):400×300×540mm
6.Weight: 35kg
7.Power: 1 phase,AC 220V/50Hz
8.Design criteria: ASTM D1230, FIMS 191-5908,CRF 16-1610,CALIF TB117,NEPA 702


Product Name:
Textile Testing Equipment
Material:
Stainless Steel
Dimension:
580*410*860mm
Burner:
diameter 11mm ± 0.3mm
Weight:
40kg
Power Supply:
220V AC 50HZ


Structure:

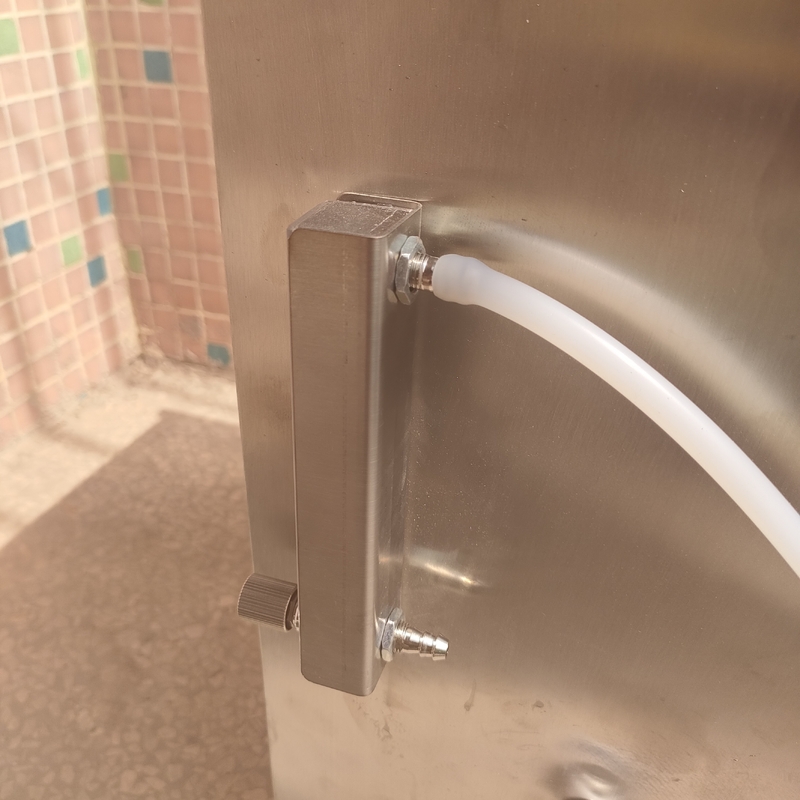

Flowmeter :Adjust the gas flow size;
Fire tube : The gas is first connected to the flow meter through the hose, and then through the rear hose of the box into the flame pipe;
Windscreen: the upper part of the windshield is provided with glass;
The experiment was carried out in a ventilated kitchen. The round hole on the top of the box and the gap on the windshield make the gas convection.
Control panel :Power- power switch ;Start:Start internal motor operation. When the flame tube moves to the test position (the vertical distance from the sample center is 8mm, the horizontal distance is 3.2mm), the internal timing switch is touched;
Reset :Timer reset /Fire tube reset;

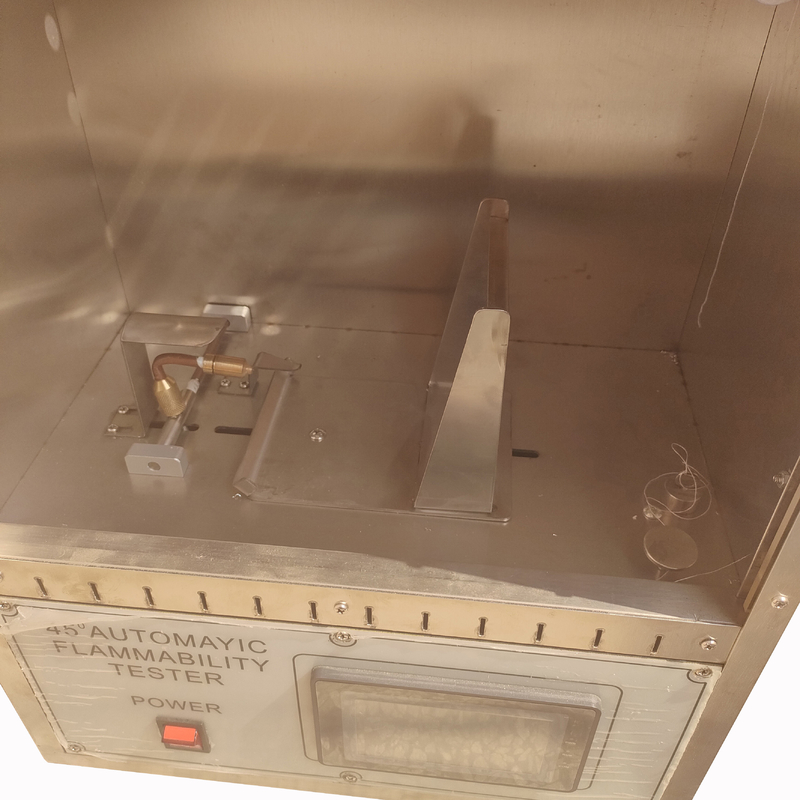

Sample clamp and specimen holder :The sample frame substrate is provided with a knob which can adjust the left and right movement, and the sample frame substrate is moved and fixed by loosening and tightening the knob;
Timer :Display settings and actual ignition time.After the time is cleared, the fire tube can complete the required movement. Or the fire tube can not return to the original position after moving forward;
Test room size: W368 × D216 × H356mm
Sample shelf angle: 45 °
Flame spread time setting range: 0.01S-99.99S
ignition time of the sample surface : 1.0S ± 0.05S


Features:

Stainless steel test cabinet
Glass observation window
Accuracy: 0.01s
Automatic or manual ignition device
Brushing Device including Spare Nylon Brush
