ISO 6940 Textile Vertical Flammability Tester Fabric Flame Testing PLC Control

ISO 6940 Textile Vertical Flammability Tester Fabric Flame Testing PLC Control

  • ISO 6940 Textile Vertical Flammability Tester Fabric Flame Testing PLC Control
  • ISO 6940 Textile Vertical Flammability Tester Fabric Flame Testing PLC Control
  • ISO 6940 Textile Vertical Flammability Tester Fabric Flame Testing PLC Control
  • ISO 6940 Textile Vertical Flammability Tester Fabric Flame Testing PLC Control
ISO 6940 Textile Vertical Flammability Tester Fabric Flame Testing PLC Control
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: CE
Model Number: YYF045
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2550
Packaging Details: wooden box
Delivery Time: 5-30 days
Payment Terms: T/T
Supply Ability: 10 pcs per month
Contact Now
Detailed Product Description
Product Name: Flammability Testing Equipment Usage: Multi-purpose Textile Flammability Tester
Test Sample: 560mm*170mm Flame Level: 0~60mm Adjustable
Burner Angle: 0°/22.5°/90°adjustable Firing Time: 5 S
High Light:

Textile Vertical Flammability Tester

,

PLC Vertical Flammability Tester

,

90Deg Flammability Testing Equipment

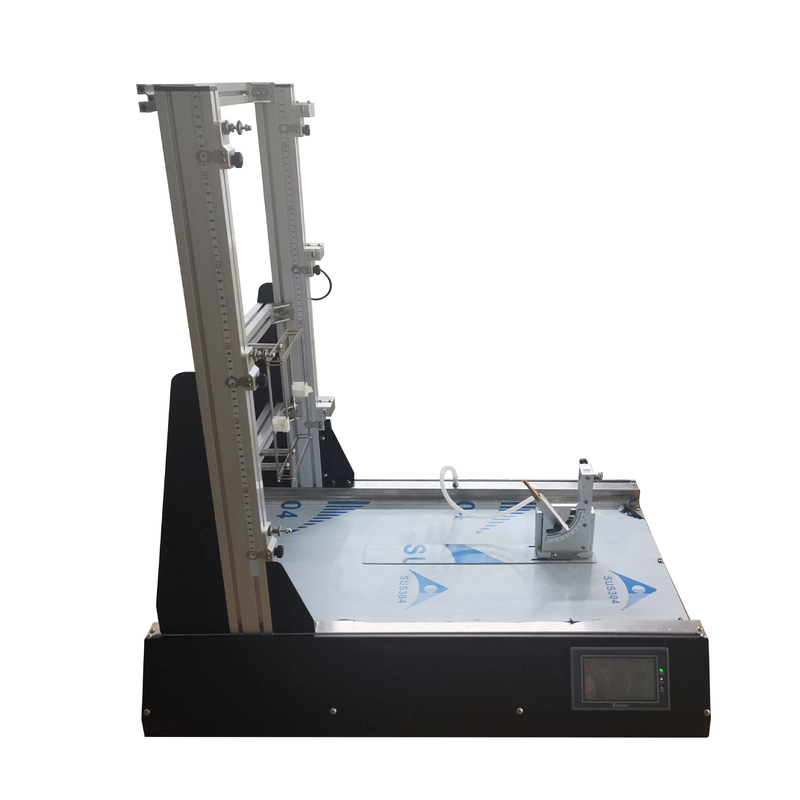

ISO 6940 Fabric Textile Vertical Flammability Tester Fabric Flame Testing Machine



Description:

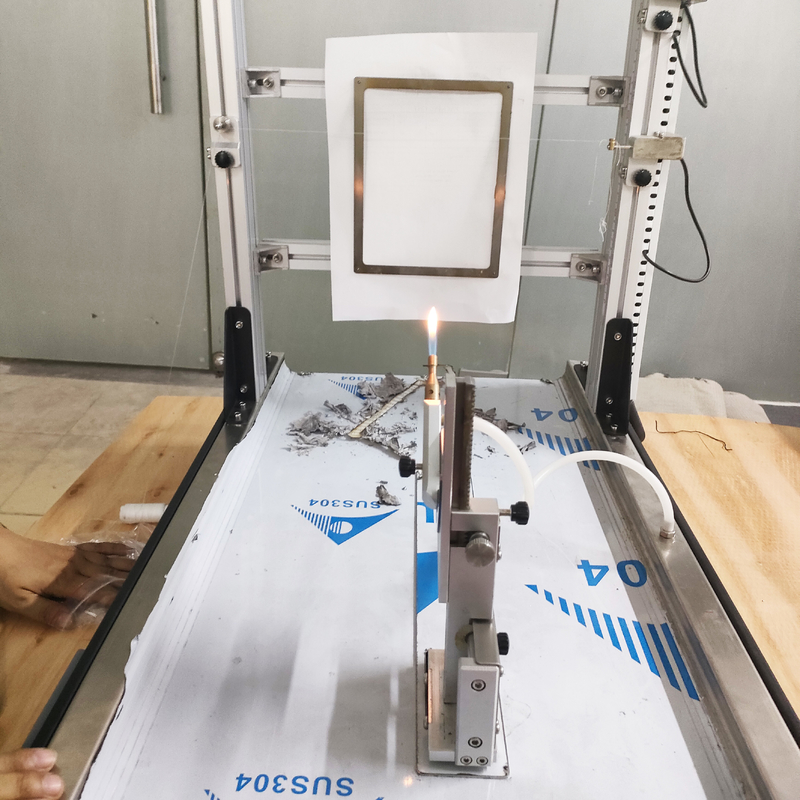

Multi-purpose Flammability Tester, to determine the flammability resistance of textile fabrics and for the flammability test of toys and toy materials.

Its vertical test frame with changeable specimen holders and burner covers offer a wide range of vertical oriented textile fabrics. This machine meet almost all the BS, EN, ISO and other similar standards which is defined as a test method that a vertical oriented fabric subject to a small flame.



Standards:



BS EN ISO 6940, EN ISO 6941, EN ISO 10047,EN71-2.



Feature:



1. PLC control, precise timing, Chinese man-machine interface.



2. Different test methods are equipped with different sample fixtures, and the fixture operation is simple and convenient.



3. Tongming fixture can be adjusted arbitrarily, suitable for different samples.



4. The flame angle and position can be adjusted arbitrarily.



Technical Parameter:



Product name: Multi-purpose Flammability Tester
Ignition of the time range:: 0-99.99S

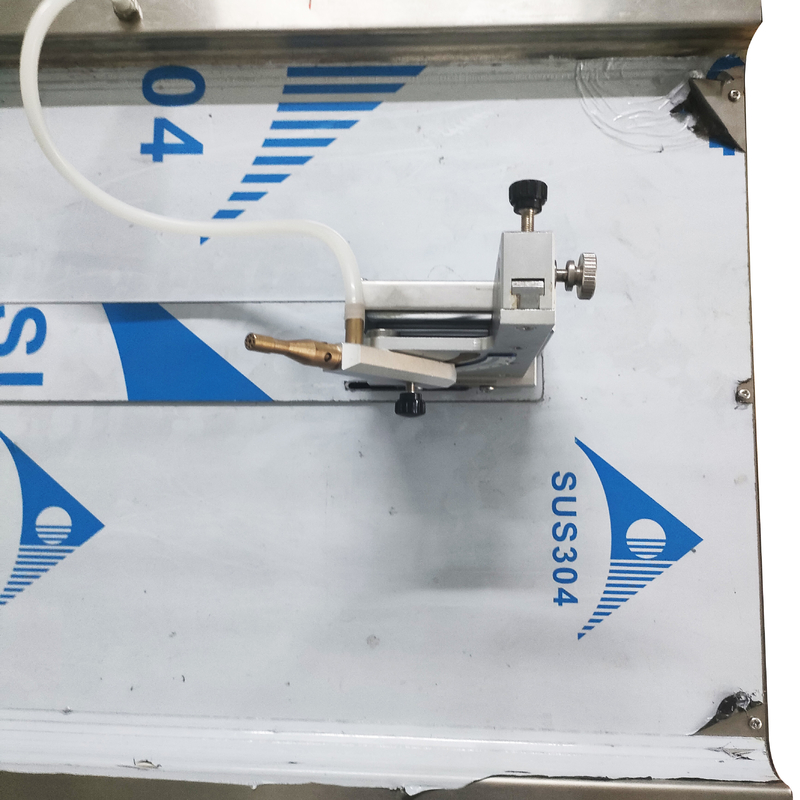

Burner:

The throat diameter of the burner is Φ0.19+0.02mm, the length is 75mm, and the mixed air outlet is Φ1.7, The air inlet is 4XΦ4 mm according to ISO6941



Accuracy: 0.1s
Timing range: 0-999.9s
Fire Mouth angle: 0°/30°/90°(Adjustable)
Flame Measurement Height: 20mm/40mm
Dimension inside U clamp: 80mmx600mm

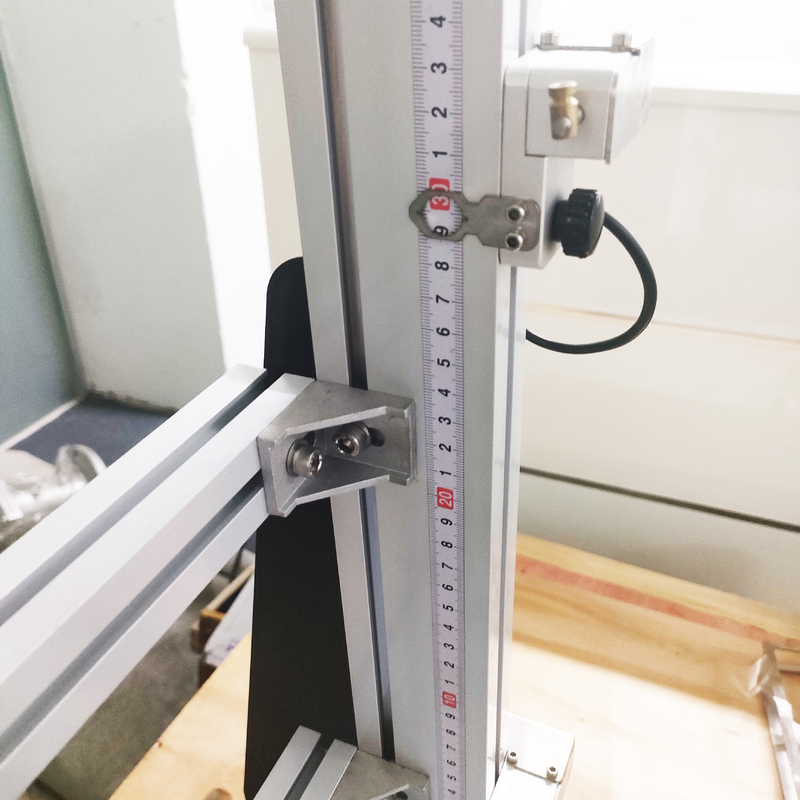

Mark line on U clamp: adjustable
Standards : BS EN ISO 6940, EN ISO 6941, EN ISO 10047,EN71-2.
Power:

220 /110 V 50/60 Hz
