ISO 6941 ISO 6940 Fabric Flame Retardant Tester For Textile and Fabric Testing
Description:

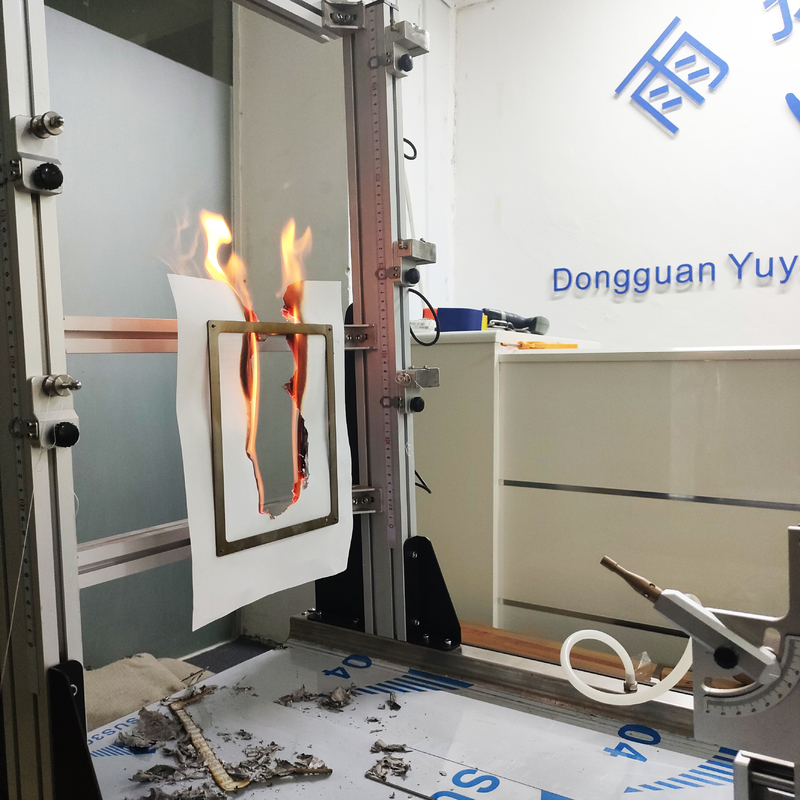

Multi-purpose Flammability Tester, to determine the flammability resistance of textile fabrics and for the flammability test of toys and toy materials.

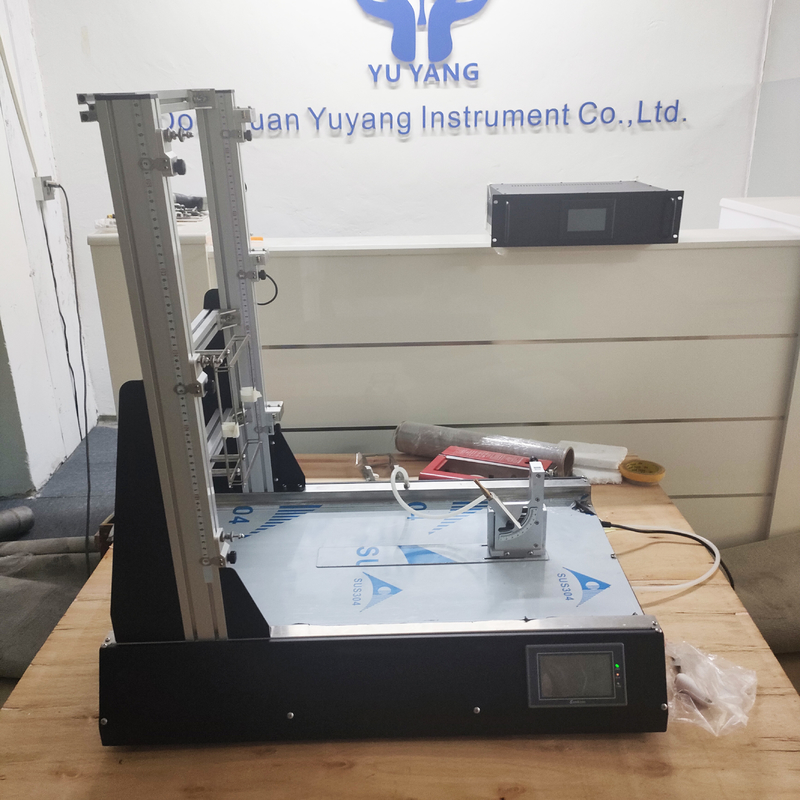

Its vertical test frame with changeable specimen holders and burner covers offer a wide range of vertical oriented textile fabrics. This machine meet almost all the BS, EN, ISO and other similar standards which is defined as a test method that a vertical oriented fabric subject to a small flame.
Standards:
BS EN ISO 6940, EN ISO 6941, EN ISO 10047,EN71-2.
Feature:

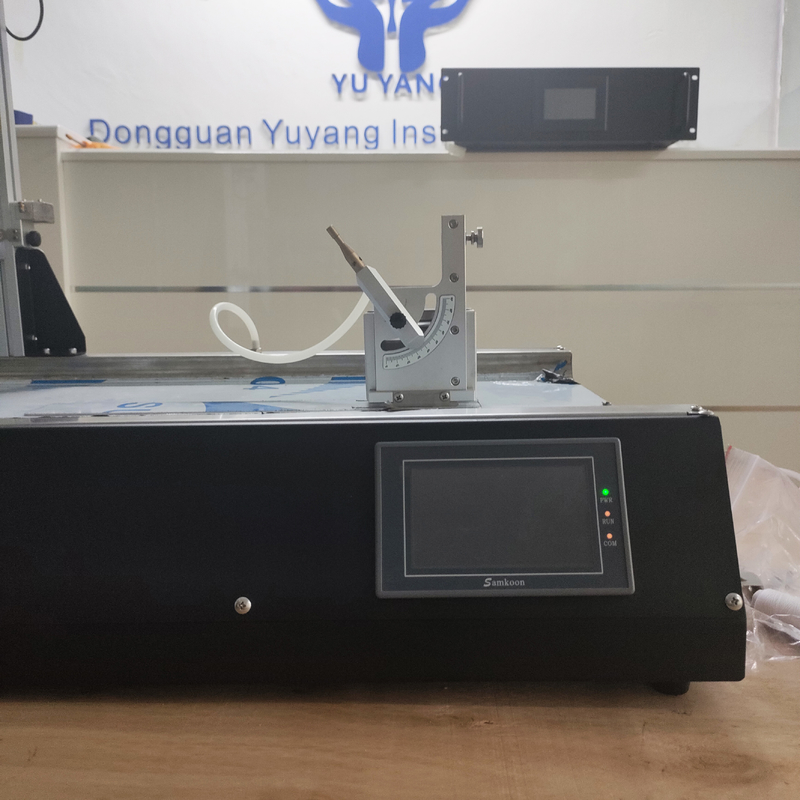

1. PLC control, precise timing, Chinese man-machine interface.
2. Different test methods are equipped with different sample fixtures, and the fixture operation is simple and convenient.
3. Tongming fixture can be adjusted arbitrarily, suitable for different samples.

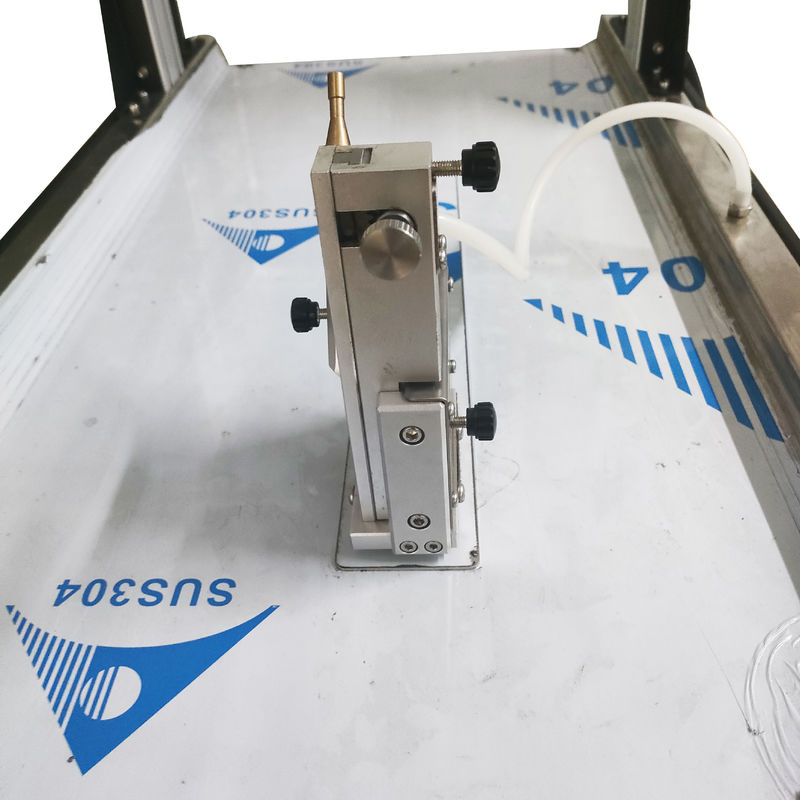

4. The flame angle and position can be adjusted arbitrarily.
Technical Parameter:
| Product name: |
Multi-purpose Flammability Tester |
| Ignition of the time range:: |
0-99.99S |
| Burner: |
The throat diameter of the burner is Φ0.19+0.02mm, the length is 75mm, and the mixed air outlet is Φ1.7, The air inlet is 4XΦ4 mm according to ISO6941
|
| Accuracy: |
0.1s |
| Timing range: |
0-999.9s |
| Fire Mouth angle: |
0°/30°/90°(Adjustable) |
| Flame Measurement Height: |
20mm/40mm |
| Dimension inside U clamp: |
80mmx600mm |
| Mark line on U clamp: |
adjustable |
| Standards : |
BS EN ISO 6940, EN ISO 6941, EN ISO 10047,EN71-2. |
| Power: |
220 /110 V 50/60 Hz
|
FAQ
1. who are we?
We are based in Guangdong, China, start from 2018,sell to South Asia(20.00%),Eastern Asia(20.00%),Domestic Market(15.00%),Southeast Asia(15.00%),Eastern Europe(10.00%),North America(10.00%),Oceania(5.00%),Western Europe(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fire Testing Equipment,Environmental Test Chamber,Textile Testing Equipment,Toys Testing Equipment,Wire and Cable Test Machine
4. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
