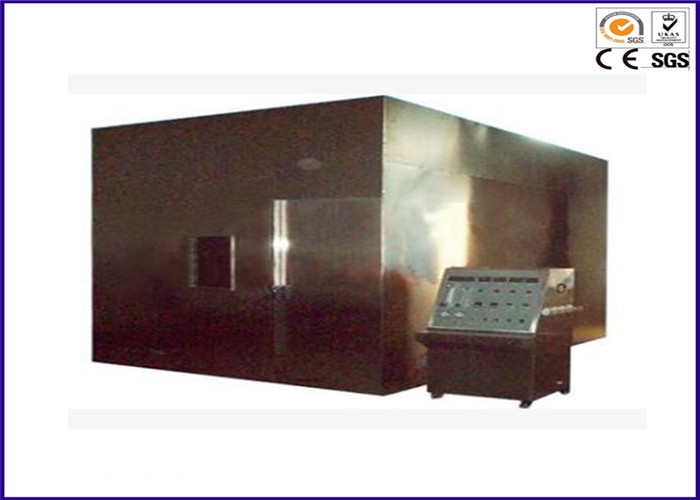

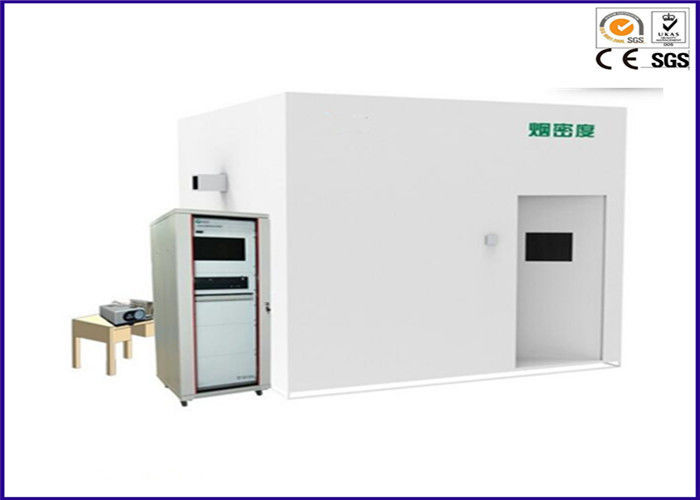

DC 12V CE Smoke Density Tester , Furniture Testing Machine 150×45×40cm

DC 12V CE Smoke Density Tester , Furniture Testing Machine 150×45×40cm

  • DC 12V CE Smoke Density Tester , Furniture Testing Machine 150×45×40cm
  • DC 12V CE Smoke Density Tester , Furniture Testing Machine 150×45×40cm
DC 12V CE Smoke Density Tester , Furniture Testing Machine 150×45×40cm
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: CE
Model Number: YYC012
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 7-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 Pcs Per Month
Contact Now
Detailed Product Description
Product Name: Flammability Test Equipment Control Chamber Size: 600mm(W)×600mm(D)×1600mm(H)
Size: 1500(W)×450(D)×400(H)mm Manual: Provided
Weight: 80kg Power: AC 220V, 50/60Hz, 1A
High Light:

DC 12V Smoke Density Tester

,

Flammability Smoke Density Tester

,

3000lm Furniture Testing Machine

Smoke Density Wire Cable Smoke Density Tester Cable Tester Furniture Testing Machine

CE Smoke Density Furniture Testing Machine DC 12V 150×45×40cm

Descriptions:



Test the smoke density of the wires and cables

Test index: Optical density(OD) and specific optical density(DS) of the smoke

Measuring principle: Lambert-beer Law

Measuring method: Measure the smoke light transmission percent of original light transmission to represent smoke density, and calculate the max DS by min percentage of the transmission



Features:



1. Use the restructured optical system light source which is imported by Germany

2. The light receptor is made of imported high resolution batteries

3. Tungsten quartz-halogen lamp: Voltage: DC 12V, Power: 100W, Nominal luminous flux: 2000lm~3000lm, Nominal color temperature: 2800K~3200K, Lens light beam: 1.5m±0.1m adjustable

4. Testing software: Smoke density DAQ testing software, the light path calibration system: 0, 100% spot calibration, which is available to operated on laptop and desktop computer both









Manual Provided
Weight 80kg
Size 1500(W)×450(D)×400(H)mm
Console Size 600mm(W)×600mm(D)×1600mm(H)
Mesa material: POM
Power: AC 220V, 50/60Hz, 1A



Accessories show:



DC 12V CE Smoke Density Tester , Furniture Testing Machine 150×45×40cm 0



FAQ:



1. who are we?
We are based in Guangdong, China, start from 2018,sell to Southeast Asia(11.00%),Eastern Asia(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Northern Europe(9.00%),South Asia(9.00%),North America(7.00%),South America(7.00%),Western Europe(7.00%),Eastern Europe(6.00%),Mid East(6.00%),Oceania(5.00%),Central America(3.00%),Africa(0.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Testing Equipment,Tensile Testing Machine,Environmental Test Chamber,Fire Testing Equipment,Induction Heating Machine

4. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
