0.5Kva Flammability Furniture Testing Machine Chamber 220V Length 100mm

0.5Kva Flammability Furniture Testing Machine Chamber 220V Length 100mm

  • 0.5Kva Flammability Furniture Testing Machine Chamber 220V Length 100mm
  • 0.5Kva Flammability Furniture Testing Machine Chamber 220V Length 100mm
0.5Kva Flammability Furniture Testing Machine Chamber 220V Length 100mm
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: CE
Model Number: YYC001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 7-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 Pcs Per Month
Contact Now
Detailed Product Description
Product Name: Flammability Test Equipment Station: 1 Station(customizable)
Control Mode: Thyristor Speed Regulation Control Test Angle: Set Arbitrarily From 40 To 50 Degrees
Thyristor Speed Regulation Control: 0-99999 Test Speed: 0-60 Times Per Second Adjustable
Driving Motor: Deceleration Motor Power: 0.5kVA 220V 50-60Hz
High Light:

100mm Furniture Testing Machine

,

0.5Kva Furniture Testing Machine

,

Thyristor Furniture Testing Machine

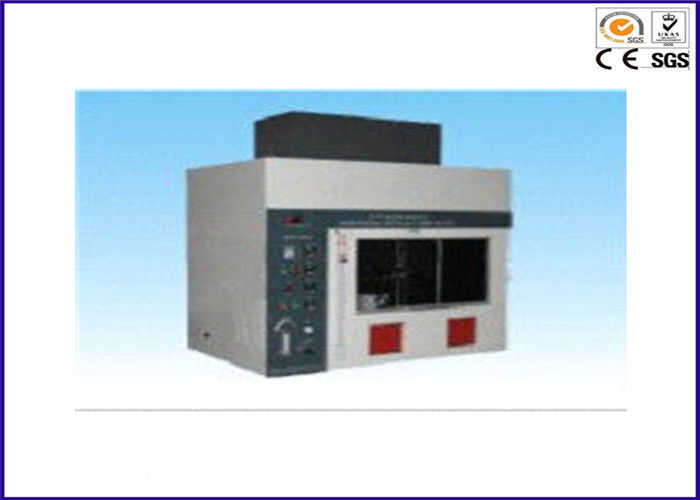

0.5Kva Flammability Test Equipment With Gas Round Mouth Bunsen Burner



Descriptions:



The flammability test is a simulated safety test according to IEC 60950: 1999, UL 94, IEC 707, IEC 695-2-2, ISO 1210: 1992 and other standards.

The flammability test is to use a certain size of the Bunsen burner (Bunsen burner) and a specific gas source (methane or natural gas), according to a certain flame height and a certain flame angle of the horizontal or vertical state of the sample time to burn several times , To test the goods lit, the duration of the burning burning and the ignition of the ignition pad under test bedding is ignited to assess its flammability. V-0, V-1, V-2 , HB, 5 V, HF-1, HF-2, HBF grade materials or foams for evaluation of flammability. Electrical equipment, electrical equipment, electrical equipment, electrical connections and accessories such as electrical and electronic products and components of the components of the research, development, production and sales of electrical and electronic equipment, electrical equipment, electrical instruments, information technology equipment, Production and quality inspection departments, but also for insulating materials, engineering plastics or other solid combustible materials industry.



Performance parameters:


1. Lamp Bunsen Tube diameter 9.5mm ± 0.5mm from the main air inlet or inlet upward length of about 100mm

2. Bunsen burner mouth shape round mouth and stainless steel fishtail mouth (replaceable)

3. Lamp test inclination 0 °, 20 °, 45 ° can be quickly positioned, the maximum stroke of about 150mm
4. Combustion gas 98% methane gas (reference gas), can also use 37MJ / m3 ± 1MJ / m3 natural gas

5. Burning and removal time 1s ~ 999.9s (digital display can be preset)

6. Burning time 1s ~ 999.9s (digital display can not be preset)

7. Repeat the number of 1 to 9999 times the number of burning (digital display can be preset)

8. The test area has a volume greater than 0.7 m 3 and a background black

9. Power supply power 0.5kVA 220V 50-60Hz



Control mode: thyristor speed regulation control
Test times: 0-99999
Test speed: 0-60 times per second adjustable
Driving motor: deceleration motor
Mesa material: POM
Power: 0.5kVA 220V 50-60Hz



Accessories show:
