| Place of Origin: | CHINA |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | YYC013 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7-30 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 Pcs Per Month |
| Product Name: | Flammability Test Equipment | Control Chamber Size: | 600mm(W)×600mm(D)×1600mm(H) |
|---|---|---|---|
| Size: | 2010 (W) × 1200 (D) × 2150 (H) Mm | Manual: | Provided |
| Weight: | 400kg | Power: | AC220V, 10A |
| High Light: | AC220V Flame Test Chamber,Electrolytic Plate Flame Test Chamber,Electrolytic Plate Furniture Test Machine |
||

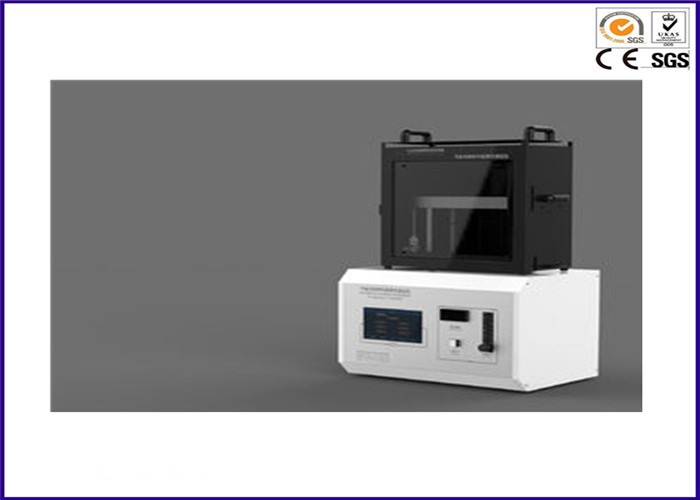

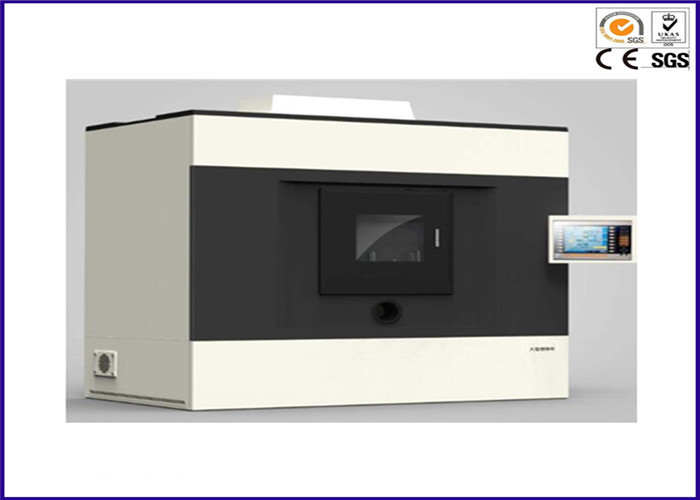

Vertical Wire-Flame Vertical Burning Cable Horizontal Furniture Testing Machine
Descriptions:
Cable horizontal and vertical burning test apparatus(VW-1)is designed according to UL1581 sect 1080.1~1080.14, and meet the criteria of VW-1(Vertical-specimen)Flame Test. It can be used to test of 1060 products wire and cable FT1 and vertical burning test,1080 VW-1 test, 1061 test, 1090 horizontal test and 1100 horizontal specimen or FT2 test;t o assess the flame spreading ability to combustible near by of cable or flexible wire when it caught fire. The whole test is carried out in a sealed test chamber with a volume of 4.32 M3.
Test method: adjust the flame height to placed the specimen at the top of the flame, burning for 15 seconds, extinguished 15 seconds, repeat 5 times, then inspecting the burned situation of the specimen, it can be set the combustion, extinguish and repetition asthmatically.
Features:
1, The test chamber is electrolytic plate electrostatic spraying, elegant appearance, and inside is roasted black.
2, The tester is equipped with powerful exhaust fume extractor, when the test is complete, open and air supply system and exhaust to the outdoors, and during the test, the system is closed;
3, The air throttle is equipped behind the test chamber. After the completion of the test, open the ventilation system to air distribution in the cabinet, But during the testing, the air door should be closed.
4, The glass viewing window is on the front box, allowing easy observation during the test.
5, The test chamber is equipped with sealed glove to operate the burner inside.
6, Test chamber size: available space 2.1M (l) *1M (w) *2.1M (h), capacity: 4.48m3. Dimensions 2.4m (l) *1M (w) *2.3M (h).
| Manual | Provided |
| Weight | 400kg |
| Size | 2010 (W) × 1200 (D) × 2150 (H) mm |
| Console Size | 600mm(W)×600mm(D)×1600mm(H) |
| Mesa material: | POM |
| Power: | AC220V, 10A |
Accessories show:
