0.1s 150 Degree Fire Testing Equipment , Blanket Vertical Flammability Chamber

0.1s 150 Degree Fire Testing Equipment , Blanket Vertical Flammability Chamber

  • 0.1s 150 Degree Fire Testing Equipment , Blanket Vertical Flammability Chamber
  • 0.1s 150 Degree Fire Testing Equipment , Blanket Vertical Flammability Chamber
0.1s 150 Degree Fire Testing Equipment , Blanket Vertical Flammability Chamber
Product Details:
Place of Origin: CHINA
Brand Name: YUYANG
Certification: CE
Model Number: YYC005
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden Box
Delivery Time: 7-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 Pcs Per Month
Contact Now
Detailed Product Description
Product Name: Flammability Test Equipment Stainless Steel Cabinet: 370mm X Length 220mm X Height 510mm
Bottom Ventilation Hole Distance: Transverse 63.5mm; Portrait 127mm Bottom Ventilation Hole: 10(number), Diameter 19mm
Ventilation Slot: 360*13mm Automatic Timing, Timing Accuracy: 0.1s
Thermometer: MAX:150ºC Power: 220V/50Hz
High Light:

150Degree Vertical Flammability Chamber

,

60cc/min Fire Testing Equipment

,

Blanket Vertical Flammability Chamber

Blanket Flammability Test Machine Big Combustion Chamber Furniture Testing Machine

0.1s 150 Degree Fire Testing Equipment , Blanket Vertical Flammability Chamber

Descriptions:



Blanket Flammability Tester is designed and developed based on ASTM D4151; Suitable for bedding, including bed sheets, blankets, mattress mattress, pillow, duvet, and similar products that used to cover on the bed of the flame retardant performance; This test method is use the standardize flame to burn the sample surface within the prescribed time, observing the combustion, degree of damage or discoloration of standard sample, in order to evaluation the fabric grading of the test.

.

Features:



1, Stainless steel cabinet, width 370mm x length 220mm x height 510mm, with transparent viewing window;
2, 18-gauge needle flame, the flame length is adjustable;
3, The ignition timing can be set freely;
4, Automatic timing, timing accuracy 0.1s;
5, High-precision needle precise control of gas flow and the flame height;
6, Meter range: 0~ 60cc/min;
7, Equipped with a butane canister gas installations, you are outfitted with gas cans or gas tank;
8, To provide the bristles means and the sample holder;
9, To provide a standard stainless steel sample clip;
10, Power supply: 220V, 50Hz.







Stainless steel cabinet 370mm x length 220mm x height 510mm
Box material SUB304 stainless steel
Ventilation slot 360*13mm
Thermometer MAX:150ºC
Mesa material: POM
Power: 220V/50Hz



Accessories show:

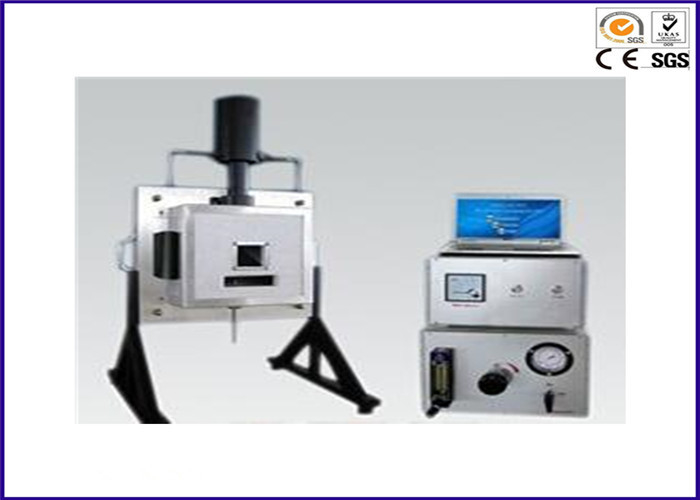

0.1s 150 Degree Fire Testing Equipment , Blanket Vertical Flammability Chamber 0

0.1s 150 Degree Fire Testing Equipment , Blanket Vertical Flammability Chamber 1
