| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO2403 BS3181 ASTMD1448; ISO1136 BS3183 ASTMD1282A |
| Model Number: | YYPV010 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood Box |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 500 sets per month |
| Marketing Type: | Ordinary Product | Core Components: | PLC, Motor |
|---|---|---|---|
| Voltage: | 220-330V | Weight: | 155KG |
| Temperature Numerical Control: | Fine Air State ±1° | Size: | 623*660*995mm |
| Certifecate: | CE | Operating Temperature: | 90℃-500℃ |
| High Light: | PLC CNC Router Machine,V Groove CNC Router Machine,CNC V Groove Machine |
||

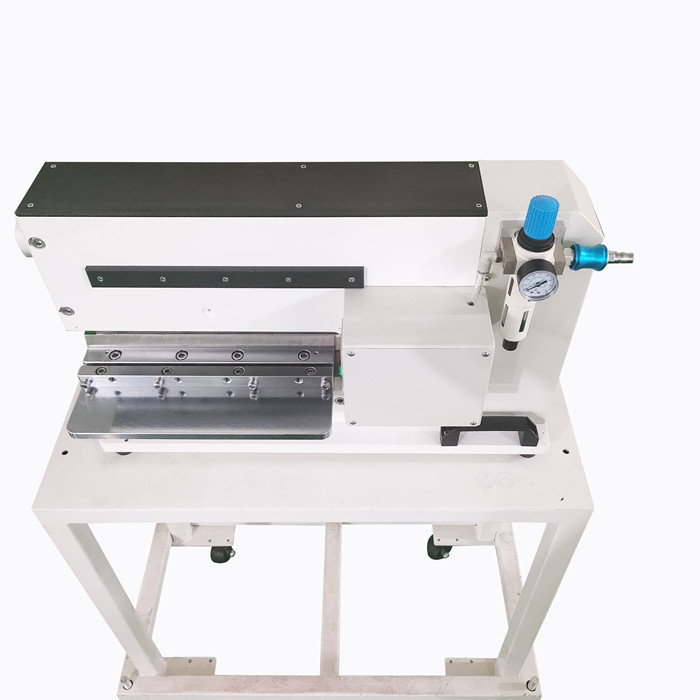

V-Groove Separator PCB CNC Router Machine Bulk Separated Fuse Holder
Description
V-slot splitter can also be called PCB splitter, knife splitter, circuit board splitter, function is used for cutting V-cut PCB board. V slot splitter in use, the structure is very compact, in use, the rigidity is very strong, so that the whole operation process is very simple and safe. V slot splitter in use, for different products is the need for different replacement of different die, for other splitter in the replacement of time, will be more trouble, but if the use of PCB splitter, then in the replacement of the die side, it will be more convenient.
Characteristics
1. PCB does not move during the cutting process, and the round knife slips to ensure that the electronic components of the substrate are not damaged due to movement,
2. the speed of four selectable board is set by the control board twist, the travel of board can be set freely and LCD display,
3. according to the depth of V slot and tool loss, the distance between the upper round knife and the lower straight knife can be accurately adjusted,
4. can solve the parts across the V slot to achieve the board,
5. the internal stress generated when cutting plate is reduced to avoid tin crack,
6. Three groups of safety photoelectric eye and upper round knife safety protection staff,
7. the height of the front and back table can be adjusted in parallel, and the back table can be tilted to make the substrate slip away.
| Marketing Type |
Ordinary Product |
| Core Components | PLC, Motor |
| Voltage | 220-330V |
| Weight | 155KG |
| Temperature numerical control | Fine air state ±1° |
| Size | 623*660*995mm |
| Certificate | CE |
| Operating temperature | 90℃-500℃ |
Scope of application:
Can cut various sizes, pre-engraved WITH V slot PCB board.
Features:
1. PCB does not move in the cutting process, and the round knife slips to ensure that the electronic components of the substrate are not damaged due to movement
2. According to the depth of V slot and tool loss, the distance between the upper round knife and the lower straight knife can be accurately adjusted
3. Can solve the parts across the V slot to achieve the board
4. The height of the back surface can be lowered in parallel to support the base plate, or the base plate can slip away
5. Can be customized segmented PCB length up to 610mm
Operation specification

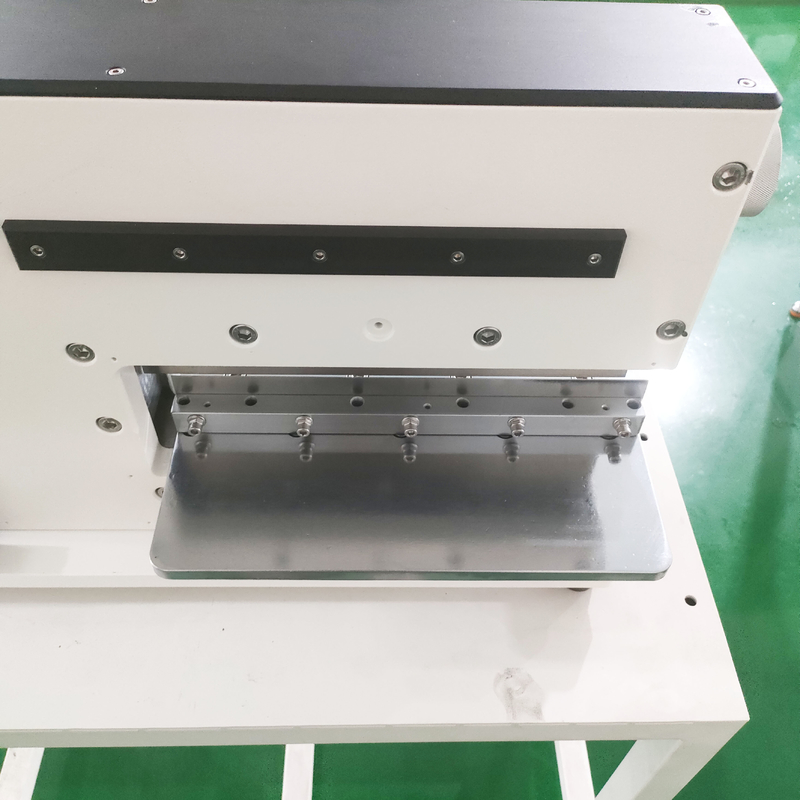

Place THE PCB board on the lower straight knife, pay attention to clip the V slot on the blade of the lower straight knife. Manually push the upper round knife along the pre-carved V groove to cut and separate the connecting plate. The distance between the lower straight knife and the upper guide plate can be adjusted to align with the pre-carved V-groove, making the cutting precise.
