| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO2403 BS3181 ASTMD1448; ISO1136 BS3183 ASTMD1282A |
| Model Number: | YYPV010 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood Box |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 500 sets per month |
| Marketing Type: | Ordinary Product | Core Components: | PLC, Motor |
|---|---|---|---|
| Voltage: | 220-330V | Application: | Electronics Manufacturing |
| Temperature Numerical Control: | Fine Air State ±1° | Size: | 623*660*995mm |
| Certifecate: | CE | Operating Temperature: | 90℃-500℃ |
| High Light: | 220V PCB V Cut Machine,Laser Punching PCB V Cut Machine,330V V Cut PCB Machine |
||

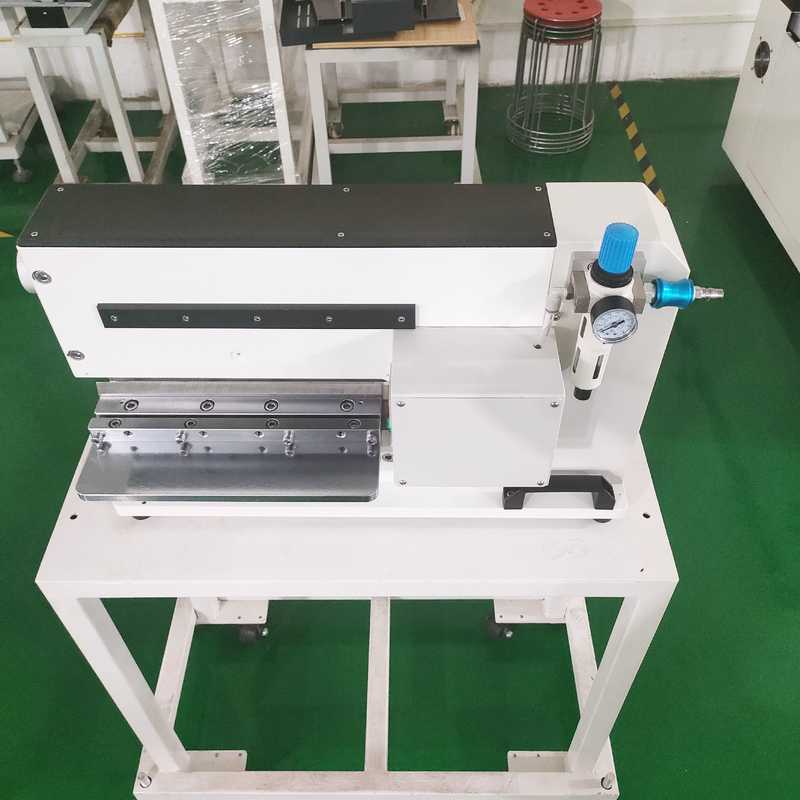

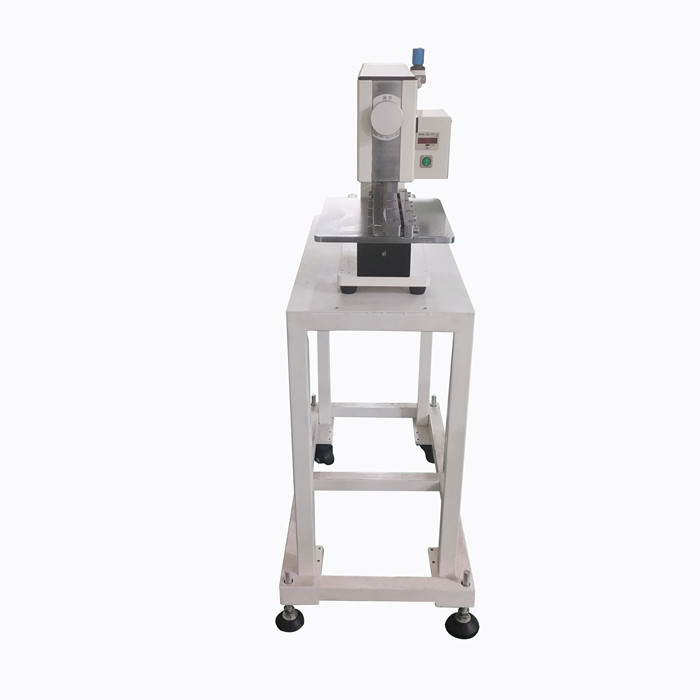

Mini V-Cut PCB Cutting Machine Full Automatic Laser Punching 220-330V
Characteristics
1. PCB does not move during the cutting process, and the round knife slips to ensure that the electronic components of the substrate are not damaged due to movement,
2. the speed of four selectable board is set by the control board twist, the travel of board can be set freely and LCD display,
3. according to the depth of V slot and tool loss, the distance between the upper round knife and the lower straight knife can be accurately adjusted,
4. can solve the parts across the V slot to achieve the board,
5. the internal stress generated when cutting plate is reduced to avoid tin crack,
6. Three groups of safety photoelectric eye and upper round knife safety protection staff,
7. the height of the front and back table can be adjusted in parallel, and the back table can be tilted to make the substrate slip away.
| Marketing Type |
Ordinary Product |
| Core Components | PLC, Motor |
| Voltage | 220-330V |
| Application | Electronics manufacturing |
| Temperature numerical control | Fine air state ±1° |
| Size | 623*660*995mm |
| Certificate | CE |
| Operating temperature | 90℃-500℃ |
Scope of application:
Can cut various sizes, pre-engraved WITH V slot PCB board.
Features:
1. PCB does not move in the cutting process, and the round knife slips to ensure that the electronic components of the substrate are not damaged due to movement
2. According to the depth of V slot and tool loss, the distance between the upper round knife and the lower straight knife can be accurately adjusted
3. Can solve the parts across the V slot to achieve the board
4. The height of the back surface can be lowered in parallel to support the base plate, or the base plate can slip away
5. Can be customized segmented PCB length up to 610mm
Operation specification

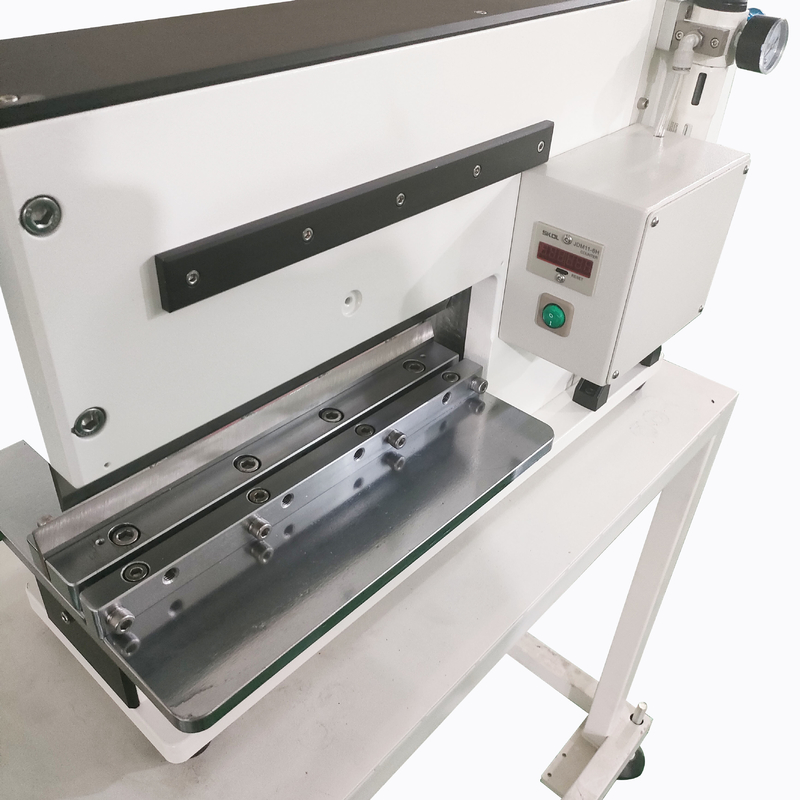

Place THE PCB board on the lower straight knife, pay attention to clip the V slot on the blade of the lower straight knife. Manually push the upper round knife along the pre-carved V groove to cut and separate the connecting plate. The distance between the lower straight knife and the upper guide plate can be adjusted to align with the pre-carved V-groove, making the cutting precise.
