EN 13823 GB/T 20284 Single Burning Tester For Building Materials Horizontal

EN 13823 GB/T 20284 Single Burning Tester For Building Materials Horizontal

  • EN 13823 GB/T 20284 Single Burning Tester For Building Materials Horizontal
  • EN 13823 GB/T 20284 Single Burning Tester For Building Materials Horizontal
  • EN 13823 GB/T 20284 Single Burning Tester For Building Materials Horizontal
EN 13823 GB/T 20284 Single Burning Tester For Building Materials Horizontal
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: CE
Model Number: YYF005
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden Boxes
Delivery Time: 5-25 days accrording the quantity
Payment Terms: T/T
Supply Ability: 100 Unit/Units per Month
Contact Now
Detailed Product Description
Power: AC 220V, 50/60Hz, 30A Warranty: 12 Months
Material: Stainless Steel Standard: GB/T 20284,EN 13823
Ambient Temperature: 5 ~ 35 ℃ Force: 8.5 Kw;
Power Supply: AC 220V 50HZ; Atmospheric Pressure: 0 ~ 250 Kpa.
Relative Humidity: 20% ~ 80%
High Light:

EN 13823 Single Burning Tester

,

Building Materials Single Burning Tester

,

GB/T 20284 horizontal flammability tester

EN 13823 GB/T 20284 Single Burning Tester For Building Materials Horizontal



Application



Test method for determining the reaction to fire performance of building materials and products (excluding flooring) and products specified in European Commission Resolution 2000/147/EC.



Standard



EN 13823 Fire response test for building products - Thermal attack of building products other than flooring by a single burning article

GB/T 20284 Single burning test for building materials and products



Operating conditions



power supply

AC 220V 50HZ

Force

8.5 kw

Ambient temperature

5 ~ 35 ℃

relative humidity

20% ~ 80%

Atmospheric pressure

0 ~ 250 kpa



Specification

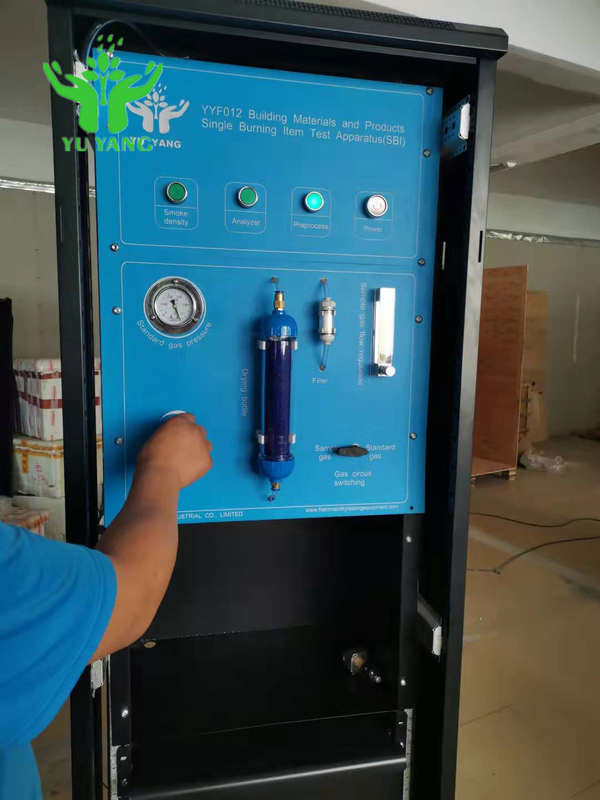

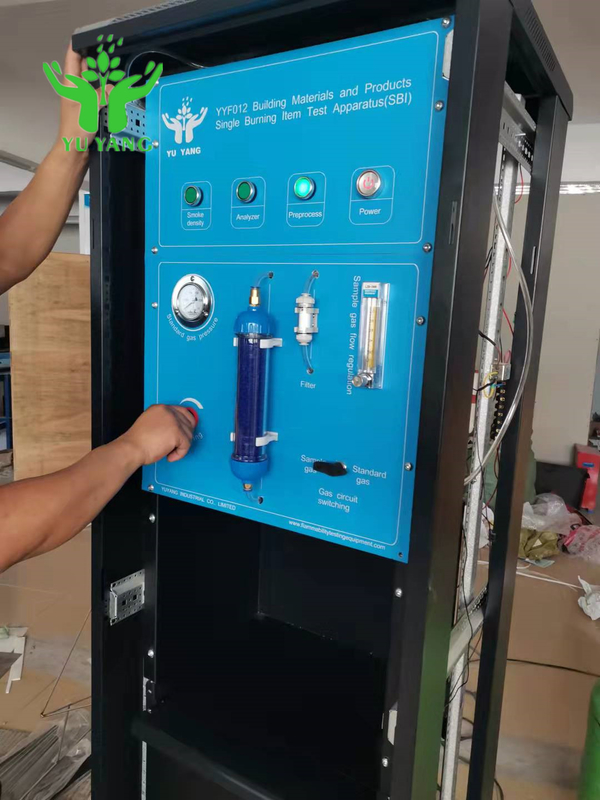

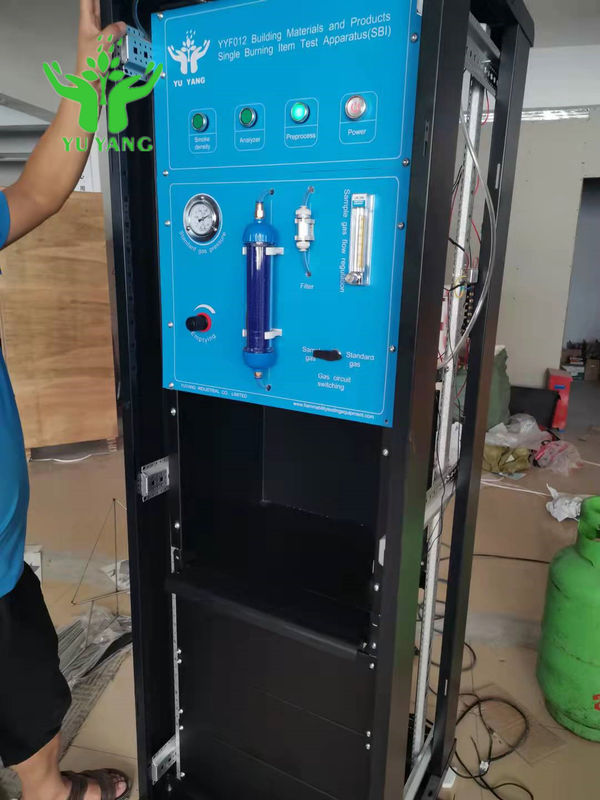

The test device includes test chamber, control room, dolly, exhaust duct, data acquisition and analysis device, and air supply control device.

1. test chamber: L3000*W3000*H2400(MM), connected with extraction and exhaust ducts at the top of the test chamber, with space for natural gas to enter and exit the blowing trolley.

During the test, the combustion heat release and combustion products of the sample can be discharged from the exhaust duct.

with the brick building.

2. ignition source, 31kw propane sandbox burner placed in the corner of the vertical rectangular box of the cart (two equal sides 0f 250mm, height 80mm);

3. Exhaust pipe with a universal measuring section for placing sensors and sampling tubes;

4. Exhaust velocity: 0.50 m3 /S~0.65 m3 /S;

5. Test chamber ambient temperature measurement: k-type sheathed thermocouple diameter 2mm, ambient pressure test accuracy: ±200Pa;

6. flue temperature measurement: 0.5mm diameter k-type sheathed thermocouple;

7. temperature measurement accuracy:0.5℃;

8. Flue high-precision pressure sensor accuracy: ±2Pa;

9. Time recording system accuracy: 0.1S;

10. Test time: 1 ~ 30 minutes can be set;

11. smoke density measurement system for measuring the smoke density during the test;

12. gas analyzer, key components are imported.

13. optional embedded computer and 8.4 inch LCD monitor with TCP / IP and RS-232 communication interface;

14. oxygen measurement:

(1) Measurement range:0-25%

(2) Signal output: 4-20mA;

(3) Response time T90:≤2S;

(4) Ambient temperature: 0-45℃;

(5) Relative humidity: <90% (non-condensing);

(6) Linearity:±0.1% O2;

(7) Zero drift: 0.05% O2/week;

(8) Repeatability:<±0.02% O2;

15. carbon dioxide (CO2) measurement:

(1) Measurement range:0 - 10%;

(2) Repeatability: ±1% of the internal structure of the control cabinet;

(3) Zero point drift: ≤2% / week;

(4) Span drift: ≤2% /week;

(5) Linearity deviation:<±1%;

(6) Response time:T90≤2sec;

16. record data acquisition system can collect oxygen concentration, carbon monoxide concentration, temperature, smoke density, exothermic rate, mass loss rate and other data, and can be store.
