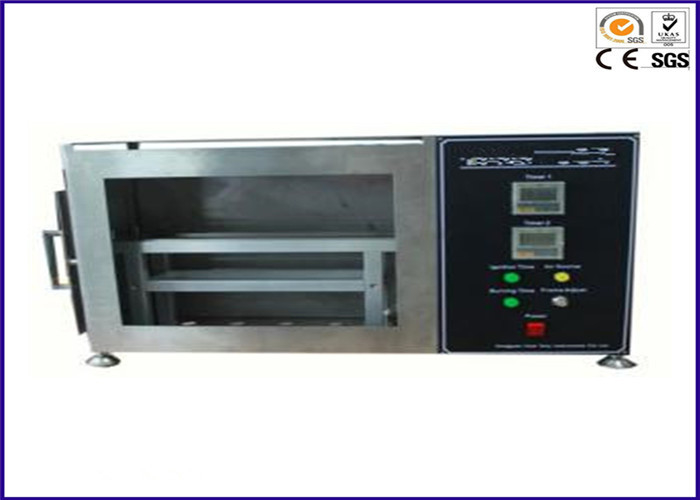

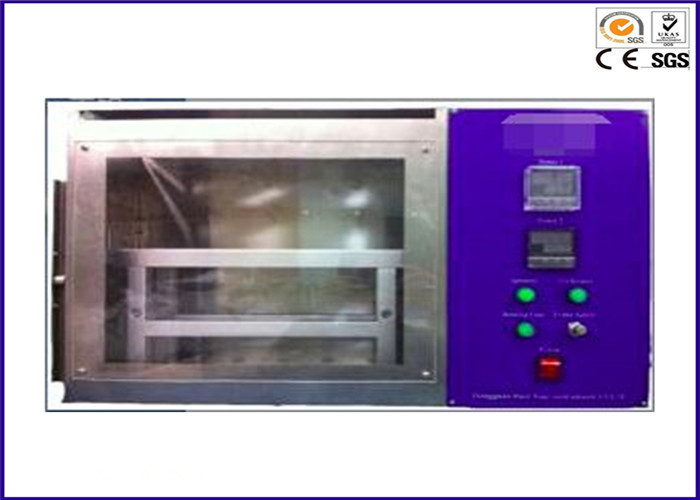

Automotive Interior Horizontal Flammability Test Chamber For Burn Resistance

Automotive Interior Horizontal Flammability Test Chamber Flammability Testing Equipment

Description:

The instrument consists of two parts: the control box and the combustion box. The sample is clamped flat by the clamp and placed on the bracket of the combustion box. The flame is ignited by the control box for a certain time, and the flame is extinguished. Observe the flame spread of the sample, measure the time it takes for the flame to spread a certain distance on the sample, calculate the spread speed of the flame, and evaluate the flame resistance of the sample.

Technical Parameters:

1. Test Chamber:381x203x356mm, bottom gas vent diameter: 19mm*10
2. Sample fixture:U shape,interior casing:330mmx50mm,thickness 10mm
3. Sample:356x100mm, thickness no more than 13mm
4. Samples: at least 5 pcs
5. Burner nozzle: inner diameter 9.5mm
6. Burner angle:90°
7. Burn flame altitude: 38mm
8. Burning time: 15s
9. Marker line distance: 254mm
10. Burning gases: natural gas,town gas or butane
11. Size: 64x21x37cm
12. Weight:18Kg
13. Power:1∮ AC 220V 50Hz 3A

Standards:

ISO 3795 ,FMVSS 302,DIN 75200 ,SAE J369, ASTM D5132, ECE R118 Annex 6

Maintenance and maintenance

1. The working environment of the instrument is standard laboratory degree, pay attention to waterproof and moisture proof.

2. To make the test thickness, please take the gas filling out of the gas filling device.

3. After use, you must cut off the power and clean the instrument.

4. Please turn off the power when not in use for a long time.

5. If there is a malfunction, please contact the factory for repair. It is not recommended to repair it yourself.
