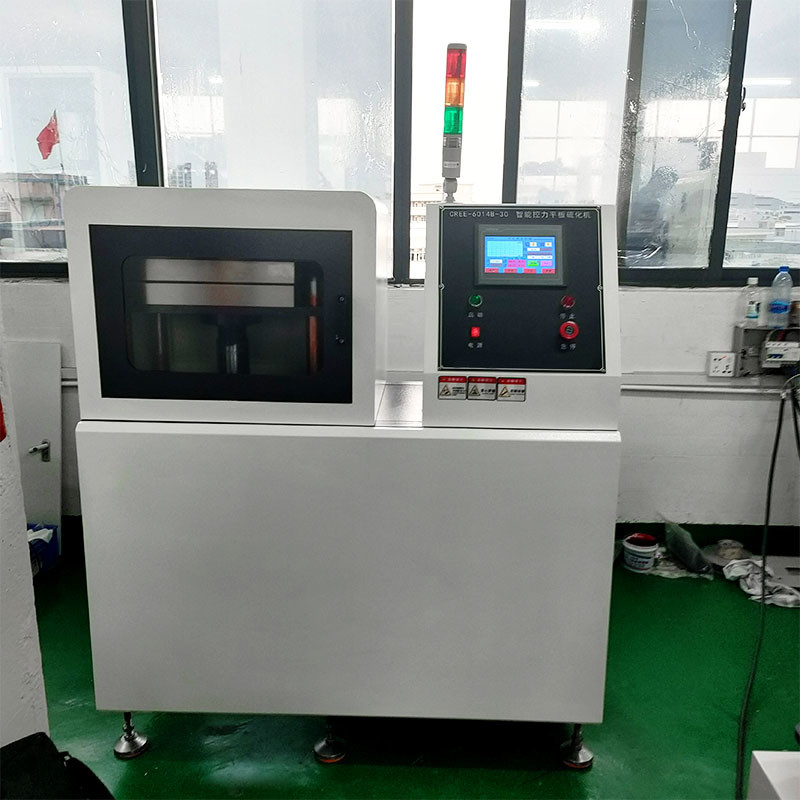

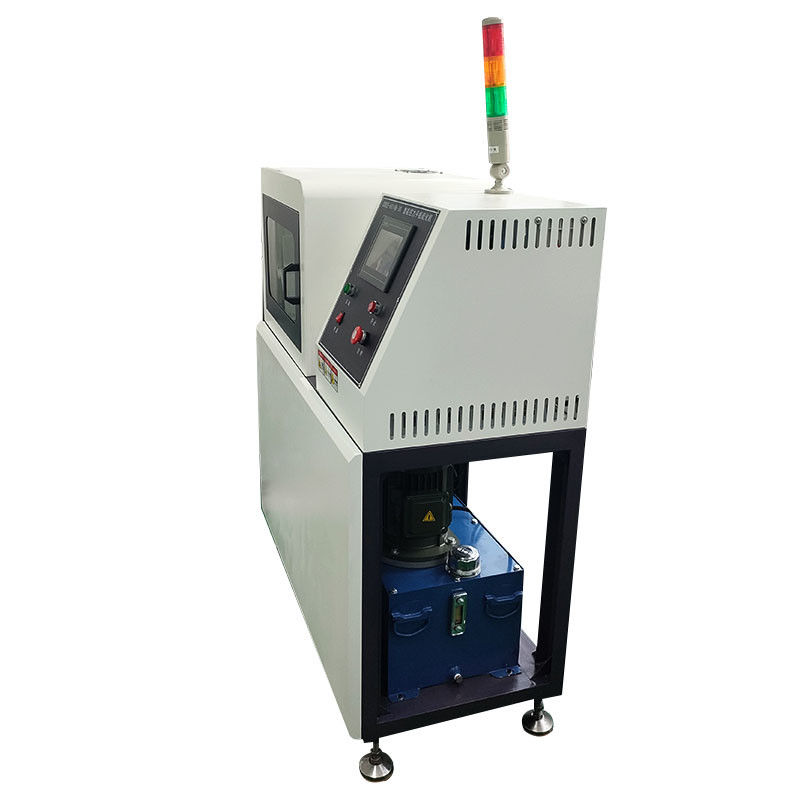

Rubber Plate Vulcanizing Press Machine Easy To Operate Lab Use Small Flat

Easy to Operate Lab Use Small flat Rubber plate vulcanizing press machine​

Introduction

This series of plate vulcanizing machine is used for pressing all kinds of rubber model products and non-model products, and also can be used for pressing all kinds of thermosetting plastics and foaming rubber and plastic products.With independent power mechanism and electrical system, using the button control.Working pressure and heating temperature can be adjusted within a certain range.This machine is divided into two types: manual and semi-automatic

Specification

1. Capacity: 5-25ton (adjustable) [with automatic exhaust function]

2, temperature range: RT to 300 ℃

3, the temperature precision: ±00.5 ℃

3. Temperature controller: PLC touch screen

4. Temperature control: PLC touch screen

5, heater: electric heat pipe heating

6. Working mode: electric heating.Heating method: electric heating.

7, the heating time: normal temperature to 160 ℃ about 15 min

8. Chronometer: PLC display, 0.01S ~ 999min ~ 999hr (adjustable)

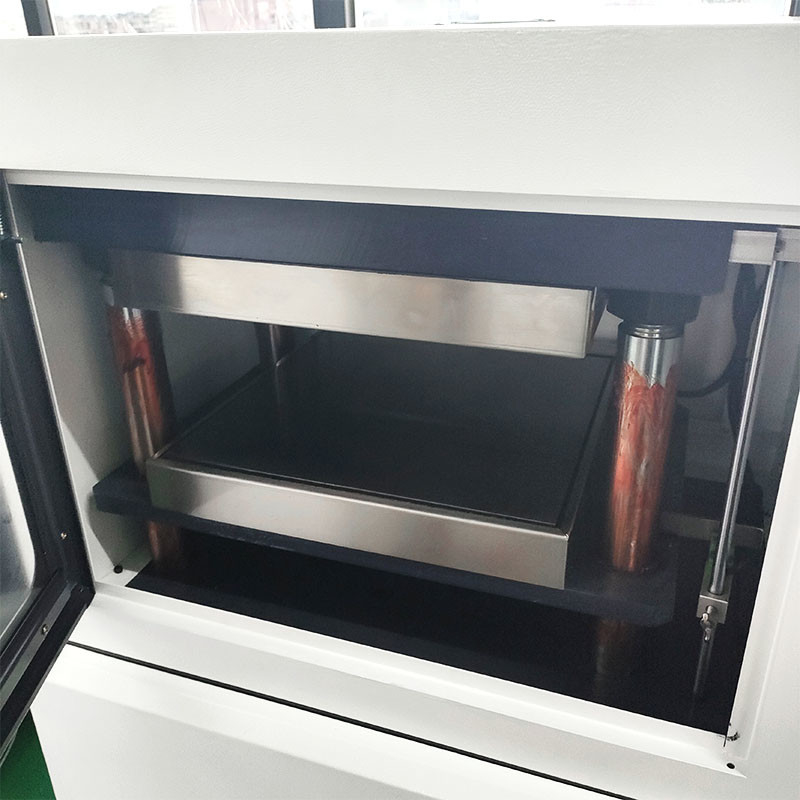

9. One layer of hot pressing plate: 350 350mm (specially treated high hardness steel plate) electric heating.

Cooling device: tap water cooling [optional]

10. Exhaust function: low pressure automatic exhaust can be adjusted 3 ~ 10 times per minute

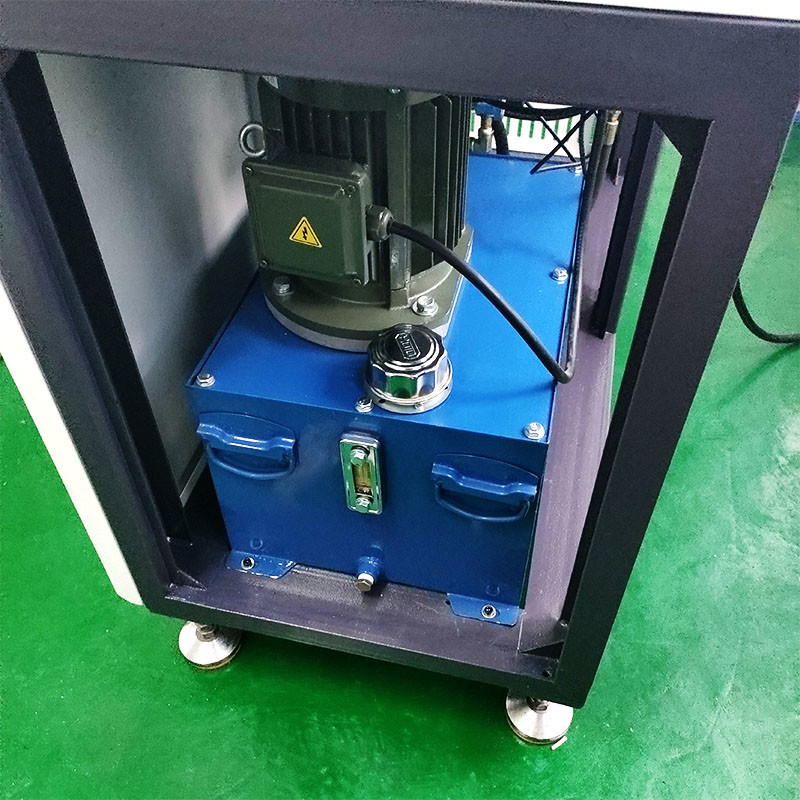

11, hydraulic system: proportional hydraulic flow closed loop control system, GPY oil pump (Japanese) drive high performance electric hydraulic with high precision of the resistance of cylinder piston implementation such as speed control mode (travel height can be set in a single freedom) with automatic pressure compensation function, pressure time can be preset, load power, steady lifting, automatic pressure, pressure, pressure relief

12. Cylinder stroke: Max 300mm

13. Oil cylinder speed: 11mm/s

14. Pressure table: 0 ~ 200kg/sq.cm

15. Volume :(W ×D× H)1700× 750× 1460 mm

16. Electric source: 3 metrics, AC380V, 15A

17. Weight: about 430kg
