Program Control Electrical Test Set Total Magnification 30-230X Dimension 500*700*1100

Product Description:

Program Control Electrical Test Set Total Magnification 30-230X Dimension 500*700*1100

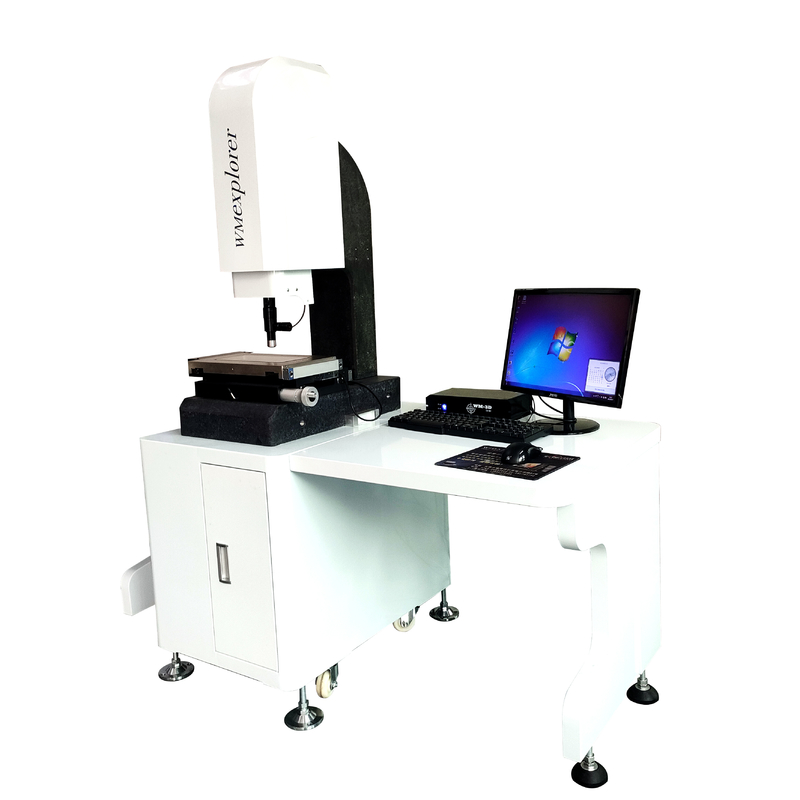

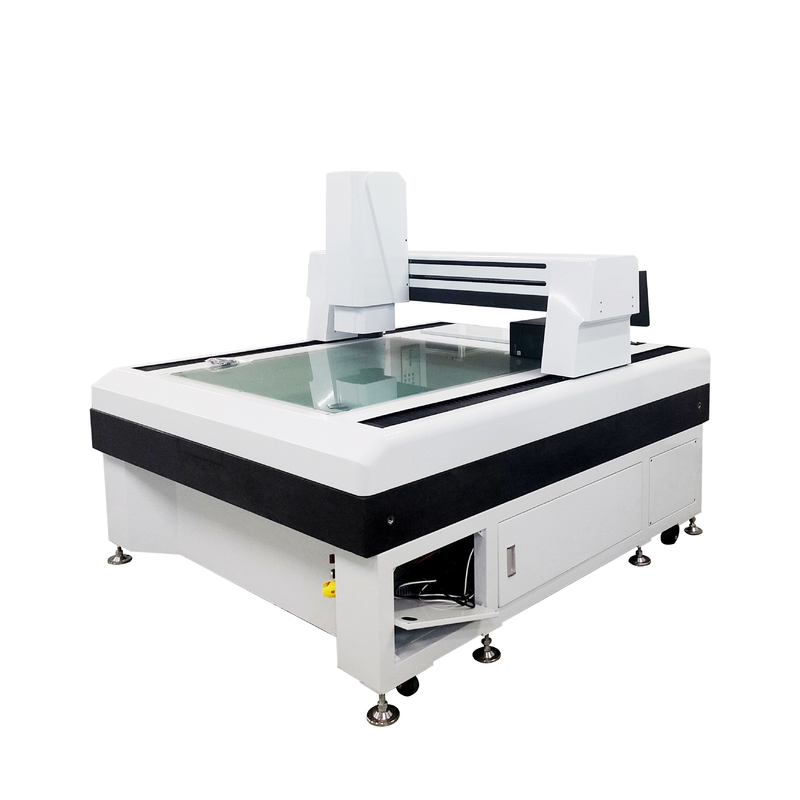

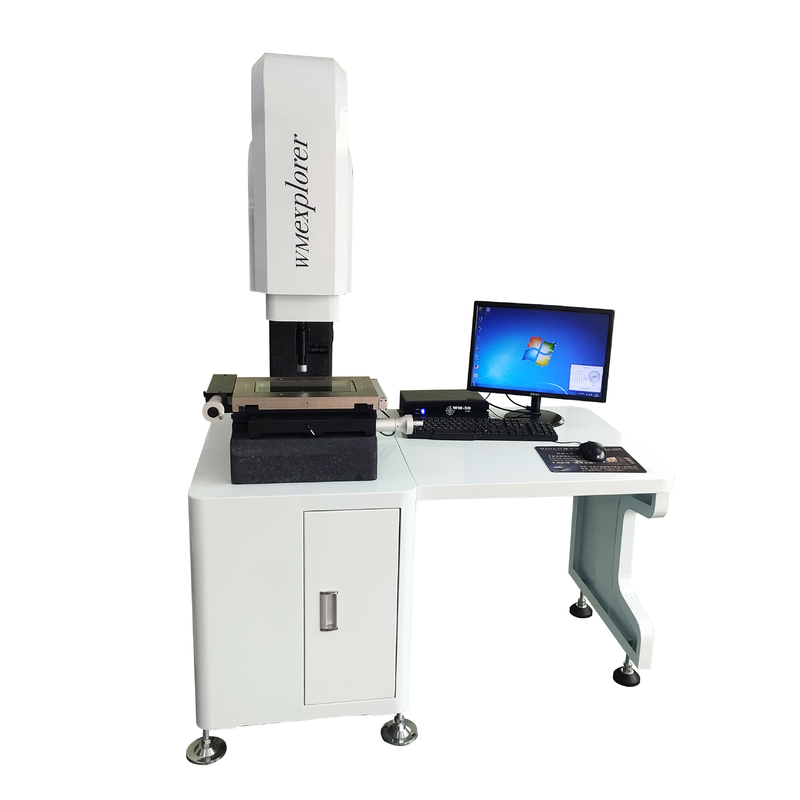

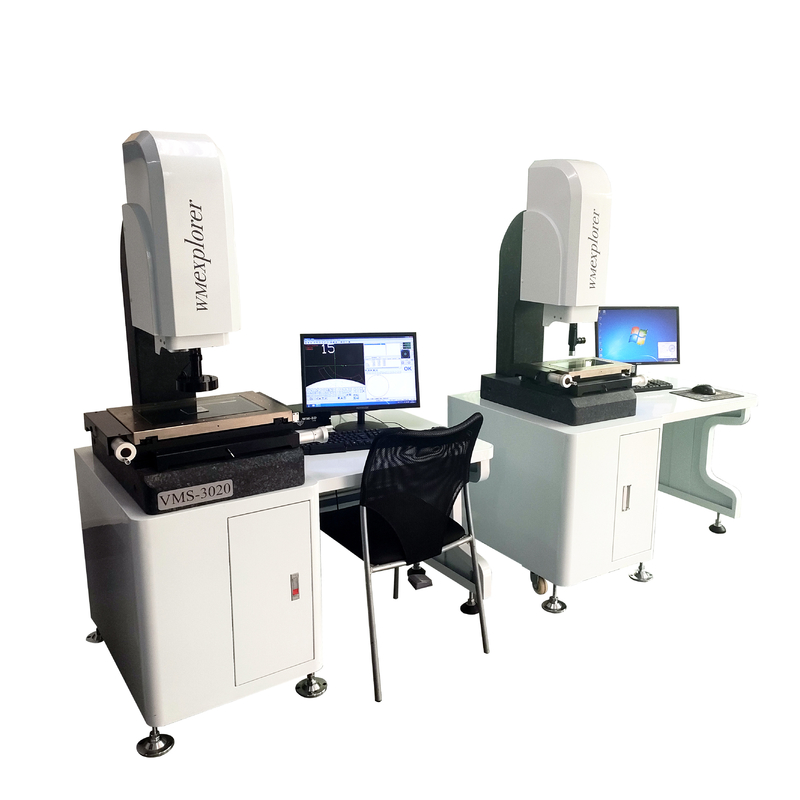

Optical Image Measuring Instrument is a high-precision, high-efficiency and high-reliability measuring instrument integrating optical, mechanical, electronic and computer image processing technologies. It enlarges the measured object through the optical amplification system, and then the CCD camera system collects the image characteristics and sends them to the computer for analysis. Optical Image Measuring Instrument is mainly used in various complex precision parts of the contour and surface shape of the size, angle and position of the detection and microscopic inspection and quality control.

The following are the main features of optical image measuring instrument:

• High precision: Optical Image Measuring Instrument adopts advanced optical and electronic technology, which makes the measurement precision reach micron level;
• Rapid detection: automatic identification and processing of image features through the computer to achieve rapid detection;
• Easy to operate: user-friendly operation interface and automation functions make the measurement process easier and more convenient;
• Widely used: optical image measuring instrument is widely used in electronics, machinery, mold, automotive and other industries in the detection of precision parts. Optical image measuring instrument is a very important measuring tool in modern manufacturing industry, which greatly improves the quality of products and production efficiency.

Features:

Optical Image Measuring Instruments have numerous advantages:

First and foremost, it is possible to detect complex parts. Optical image measuring instrument can detect a range of shapes such as curves, surfaces and holes, and can measure multiple parts at once.

Furthermore, the instrument can carry out non-contact measurements. When taking measurements this way, the object is not subject to any contact, hence protecting it from error due to contact.

The degree of automation this instrument offers is high. Image processing via computer enables automated measurements, much faster and with higher accuracy.

In addition, it is easy to maintain. The size and design of the optical image measuring instrument is user-friendly and requires minimal upkeep for a long time of continuous functioning.

Technical Parameters:

The X-axis includes a travel of 200mm, the Y-axis a travel of 100mm, and the Z-axis a travel of 200mm (for focus). The measuring accuracy is 3+L/200um, and the resolution for the X-axis and Y-axis is 0.001 mm. The screen size is Ø 312, with a used range that is more than Ø 300 and includes the meter line. The screen rotary range is 0°~360°, and the resolution for the X-axis and Y-axis is 1´, or 0.01°.

The lens magnifications have multiple options of 10X, 20X, 50X, and 100X. The object view includes Ø30, Ø15, Ø6, and Ø3. The working distance is 77.7, 44.3, 38.4, and 25.3 (mm, respectively). The max. workpiece height is 90mm.

The Data Processing System is DP-100multi-function data processing system appearing in English, which can be used to gather the data and measure the point, line, circle, angle, and distance. The illumination of transmission and reflection is a 24V/150W-halogen lamp. The power runs on 110V/220V (AC), 50/60HZ, with a total power of 400W. The product is cooled by forced air cooling. The dimensions are 1750*920*1700mm, and it weighs 170kg.

Applications:

YUYANG YYM-2010 Manual Video Measuring System is a reliable and perfect image measuring instrument manufactured by DONGGUAN. It is widely used in industrial manufacturing processes to measure the size and 3D geometry of various parts and components. It features a SONY 1/3" Color CCD Camera and a 0.7~4.5X Lens Magnification, which ensures the accuracy of measurements with error margin of ±3.5μm. The data resolution can reach 0.001mm with the power input of 220/110V(AC),50HZ 30W. With its state-of-the-art design, YUYANG YYM-2010 provides a highly efficient and precise manual video measuring system, making it the first choice for industrial measurement and inspection.

Support and Services:

We are dedicated to providing our customers with top-notch technical support and service. Our Electrical Test Set is designed to provide the highest level of accuracy and reliability, and we are here to help keep it that way.

Our team of experts is available for both pre- and post-sales technical support and service. We can help you troubleshoot any issues you may be experiencing with your Electrical Test Set, and help you to identify and resolve potential problems before they become an issue.

We also offer extended service plans to help keep your Electrical Test Set running in peak condition for years to come. Our service plans include preventive maintenance, calibration, and spare parts replacement.

If you have any questions or need assistance with your Electrical Test Set, please contact us at your earliest convenience. We are here to help.

Packing and Shipping:

Electrical Test Set should be packaged and shipped in a way that will protect it from the elements and potential damage. It should be shipped in a box with at least 2 inches of cushioning material around it, and with the packaging clearly labeled with the product name, weight, and contents.

Care should be taken to ensure that the product does not become damaged during transit, as this could compromise the accuracy of the product. It is also important to ensure that the packaging is secure to prevent any items from becoming lost in transit.
