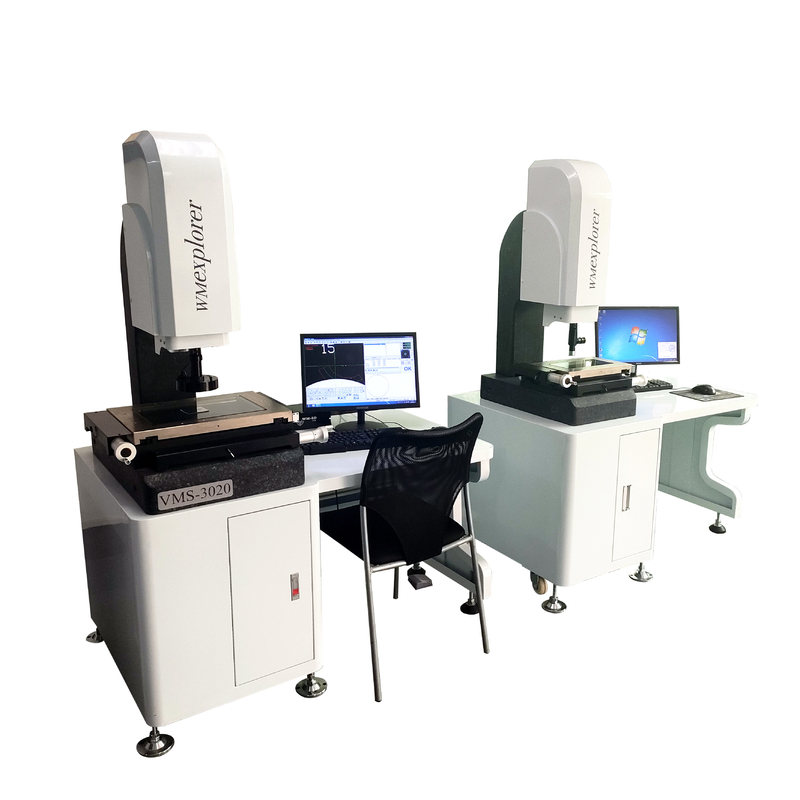

Precision 2D Optical Coordinate Measuring CNC Machine With SONY 1/3" Color CCD Camera

Product Description:

Precision 2D Optical Coordinate Measuring CNC Machine With SONY 1/3" Color CCD Camera

Optical Image Measuring Instrument is a high-precision, high-efficiency and high-reliability measuring instrument which combines optical, mechanical, electronic and computer image processing technologies. The object to be measured is first magnified by the optical amplification system, and then the CCD camera system captures the image characteristics and sends the data to the computer for analysis. This instrument is mostly used in inspection and quality control of various complex precision parts, such as determination of contour and surface shapes, size, angle and position.

The features of optical image measuring instrument include: high accuracy, due to the use of advanced optical and electronic technology that can measure objects at a micron level precision; rapid detection through the automatic identification and processing of image features via computer; easy operation through user-friendly operation interface and automation functions; and finally, it is used in many industries such as electronics, machinery, mold, automobile and others for the detection of precision parts. Overall, the optical image measuring instrument is a very important tool in modern manufacturing industry as it efficiently enhances the product quality and increases the productivity.

Features:

The optical image measuring instruments offer many advantages, such as being able to detect complex parts, including curves, surfaces, holes, etc. It also provides non-contact measurement so as to protect the object to be measured and avoid errors due to contact. It has a high degree of automation that enables automated measurement and improves the speed and accuracy of the process. In addition, its compact design ensures ease of maintenance and repair and the ability to work stably for long hours.

Technical Parameters:

The X-Axis has a travel of 200mm, the Y-Axis has a travel of 100mm, and the Z-Axis has a travel of 200mm (for focus) with a measuring accuracy of 3+L/200 um.

The resolution in the X-Axis and Y-Axis is 0.001mm, and the max. workpiece height is 90mm. The screen size is Ø 312 with a rotary range of 0°~360°, and the resolution in the X-Axis and Y-Axis is 1´ or 0.01°.

The Lens Magnification options are 10X, 20X, 50X, and 100X with object views of Ø30, Ø15, Ø6, and Ø3, and working distances of 77.7, 44.3, 38.4, and 25.3 respectively. It has a DP-100multi-function data processing system, in English, which can be used to gather data and measure the point, line, circle, angle, and distance.

Furthermore, the illumination of transmission and reflection is 24V/150W-halogen lamp, the power is 110V/220V(AC), 50/60HZ, and the total power is 400W. It has a cold forced air cooling system, dimensions of 1750*920*1700mm and a weight of 170kg.

Applications:

The YUYANG YYM-2010 Manual Video Measuring System is a 2D Optical Coordinate Measuring CNC Machine that is designed and produced in Dongguan. It is equipped with a total magnification of 30~230X and a measurement accuracy of ±3.5μm. The resolution of this machine is 0.001 (mm). The mode of operation is program control and the dimension of the machine is 500*700*1100. It is a perfect tool for manual video measuring system and 2D optical coordinate measuring.

Support and Services:

We provide technical support and service for Electrical Test Set. Our technical support and service team is available 24/7 to assist you with any questions you may have about the product. We have a team of trained professionals that can help you with installation, troubleshooting, and maintenance of the product. We also offer product training and education to ensure that you are able to use the product efficiently and effectively. Our technical support and service team is committed to providing the best customer service experience possible.

If you have any questions regarding our Electrical Test Set, please contact us at [support@example.com] and we will respond as quickly as possible.

Packing and Shipping:

Packaging and Shipping of Electrical Test Set

The Electrical Test Set should be packaged as follows:

• Place the product in its original packaging and seal it.
• Place the product in a box and fill with packing materials to protect it from shocks during transit.
• Label the box as “Electrical Test Set”.

The Electrical Test Set should be shipped by a reliable courier service and should include tracking information to ensure that it arrives safely and on time.
