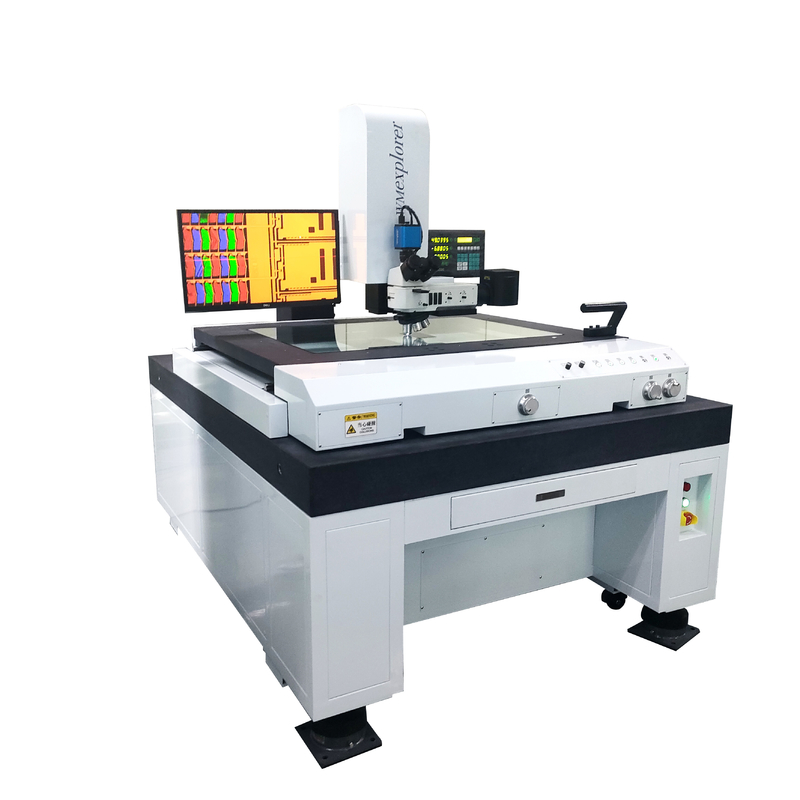

Highly Accurate Manual Video Measuring System Measurement Accuracy ±3.5μM

Product Description:

Highly Accurate Manual Video Measuring System Measurement Accuracy ±3.5μM

Optical Image Measuring Instrument is a highly precise, efficient and reliable instrument that combines optical, mechanical, electronic and computer image processing technologies. It utilizes an optical amplification system to enlarge the measured object, and the CCD camera system is responsible for collecting image characteristics. The collected data is then sent to the computer for further analysis. This instrument is commonly used to detect and inspect the size, angle and position of complex precision characteristics of surface and contour, as well as for quality control.

The main advantages of optical image measuring instrument are its high precision, rapid detection capabilities, user friendliness and broad range of applications. Its advanced optical and electronic technology allows the system to achieve a precision of up to the micron level, and automatic identification of images through the computer allows for rapid measurement results. Additionally, user friendliness of the operating interface and its automation functions eases the entire measuring process. Optical image measuring instrument is applicable for the detection of precision parts in many industries such as electronics, machinery, molding, automotive and many others. It is a fundamental tool for modern manufacturing industry, which is indispensable for high quality product and boosted production efficiency.

Features:

Optical Image Measuring Instruments have many advantages including the ability to detect complex parts such as curves, surfaces, holes and more. What is more, these instruments also provide non contact measurement which protects the object from any error due to contact. Lastly, automation plays an important part in this technology as measurement is kickstarted faster with higher accuracy. Not to mention, the maintence and repair costs are kept low due to the smalls size of the machine.

These instruments have high degree of automation that analze images processed through computers to measure with greater speed and acuracy. Also, the optical image measuring instrumetns are easy to maintain and have the ability to deliver stability over a long period of time.

Technical Parameters:

The X-axis travel on this instrument is 200 mm while the Y-axis travel is 100 mm. Furthermore, the Z-axis travel for focus is 200 mm. The measuring accuracy is 3+L/200 um and the resolution on the X-axis and Y-axis is 0.001 mm. The screen size is Ø 312, used range above Ø 300 with the meter line. Screen rotary range is 0° - 360°, with resolution stipulated as 1´ or 0.01°. There are lens magnification options varying from 10X-100X and object views in Ø30, Ø15, Ø6 and Ø3 respectively. The working distance ranges between 77.7-25.3mm. The maximum workpiece height is 90 mm and the data processing system is DP-100multi-function data processing system that can be deployed in English. It is capable of gathering data and measure point, line, circle, angle and distance. Illumination is provided by a 24V/150W-halogen lamp and power supplied by 110V/220V (AC), 50/60HZ (total power 400W). The instrument is cooled by forced air and weighs 170 kg with dimensions of 1750*920*1700 mm.

Applications:

YUYANG YYM-2010 CNC Video Measuring Machine is a high precision gear measuring machine ideal for vision inspection machine and electronic projector. It is equipped with a SONY1/3" Color CCD Camera, surface light and transmission light are used LED with brightness adjustable, and has a power of 220/110V(AC),50HZ 30W for its mode of operation. It has three axis travels of 200*100mm, making it highly accurate and precise.

This YUYANG YYM-2010 CNC Video Measuring Machine is perfect for measuring gears and other machinery parts. It is highly accurate and can perform complex measurements with ease. It is extremely durable and reliable due to its high quality components and materials. Its accuracy and precision makes it an ideal choice for quality control and precision inspection applications.

This product from YUYANG is manufactured in DONGGUAN and has been tested to ensure that it meets the highest quality standards. With its precise control, high accuracy, and reliability, it is the perfect choice for quality control and precision inspection applications.

Support and Services:

We provide technical support and service for Electrical Test Set products. Our technical support and service include:

• On-site and remote troubleshooting
• Maintenance and repair services
• Product installation and setup
• Software and hardware upgrades
• Data backup and recovery

Our team of experienced technicians is available 24/7 to provide the highest level of technical support and service. We provide personalized service and customized solutions to meet your needs.

For more information about our technical support and service, please contact us today.
