| Place of Origin: | DONGGUAN |
| Brand Name: | YUYANG |
| Model Number: | YYM-2010 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood case |
| Delivery Time: | 5-8days |
| Payment Terms: | T/T |
| Supply Ability: | 100 per month |
| Data Resolution: | 0.001mm | Lens Magnification: | 0.7~4.5X WD:95mm |
|---|---|---|---|
| Object View: | 7~1.1mm | Lighting: | Surface Light And Transmission Light Are Used LED, Brightness Adjustable |
| Weight(kg): | 170 | Total Magnification: | 30~230X |
| Power: | 220/110V(AC),50HZ 30W | Resolution: | 0.001 (mm) |
| High Light: | High Precision Electrical Test Set,Electrical Test Set With Three Axis |
||
Optical Image Measuring Instrument is a high-precision, high-efficiency and high-reliability measuring instrument which integrates optical, mechanical, electronic and computer image processing technologies. It uses an optical amplification system to enlarge the measured object and then a CCD camera system collects the image characteristics and sends them to a computer for analysis. This instrument is used mainly for detecting the size, angle and position of complex precision parts and making quality control and microscopic inspection.
The main features of Optical Image Measuring Instrument include: high precision, rapid detection, easy to operate, and wide application in various industries. With advanced optical and electronic technologies, the instrument can measure up to micron level precision. The automated image feature identification and processing is able to achieve rapid detection. The user-friendly operation interface and automation functions make measurement easier and faster. Optical Image Measuring Instrument is widely used in electronics, machinery, mold, automotive and other industries for precision part detection. It is an important measuring tool in modern manufacturing which helps improve product quality and production efficiency.
Optical Image Measuring Instruments have various advantages. For example, they can detect complex parts, like curves, surfaces and holes, and it is even possible to measure multiple components simultaneously. Additionally, they provide non-contact measurements, which makes it possible to protect the object and avoid consequential errors of contact. Moreover, they are highly automated: thanks to the use of a computer, these instruments can identify and process image features automatically, thus increasing the speed and precision of the measurement. Lastly, their compact design is easy to maintain and repair, meaning they can work reliably for a long time.

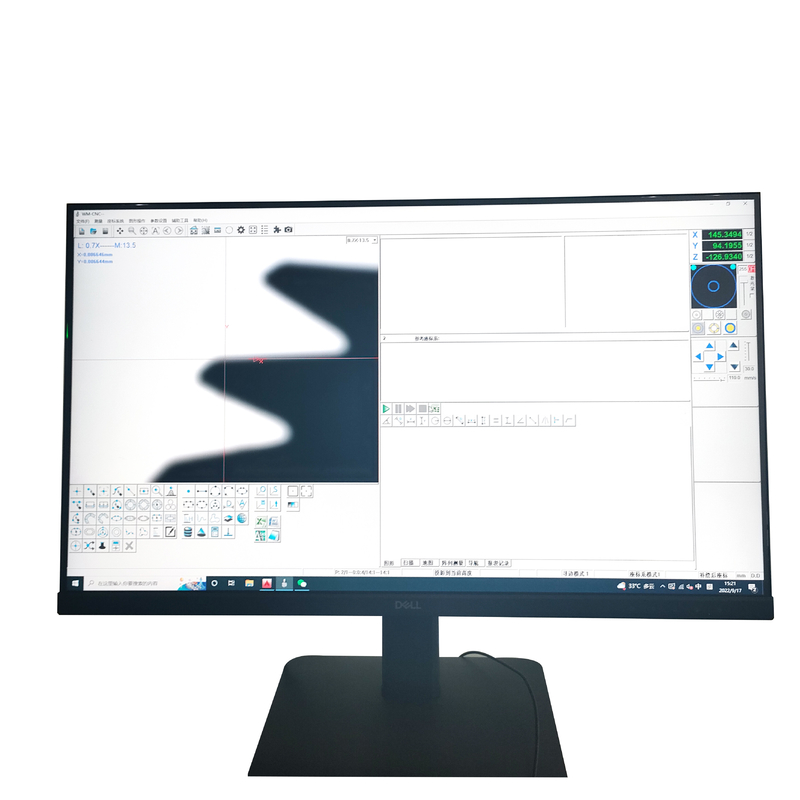

The XYZ axis can travel 200mm, 100mm and 200 (for focus), respectively, with a measuring accuracy of 3+L/200 um and a resolution of 0.001mm. The rotary range of the screen size is 0° to 360° with a resolution of 1´ or 0.01°. Multiple lens magnification options (10X, 20X, 50X and 100X) and object views (Ø30, Ø15, Ø6 and Ø3) are available, together with the corresponding working distances (77.7, 44.3, 38.4 and 25.3). The max. workpiece height of all axes is 90mm. The DP-100multi-function data processing system, which is displayed in English, can be used to measure the point, line, circle, angle and distance.
The illumination is provided by a 24V/150W-halogen lamp, with a power of 110V/220V(AC) and 50/60HZ and a total power of 400W. The machine runs on cold forced air cooling and has a dimension of 1750*920*1700mm and a weight of 170kg.

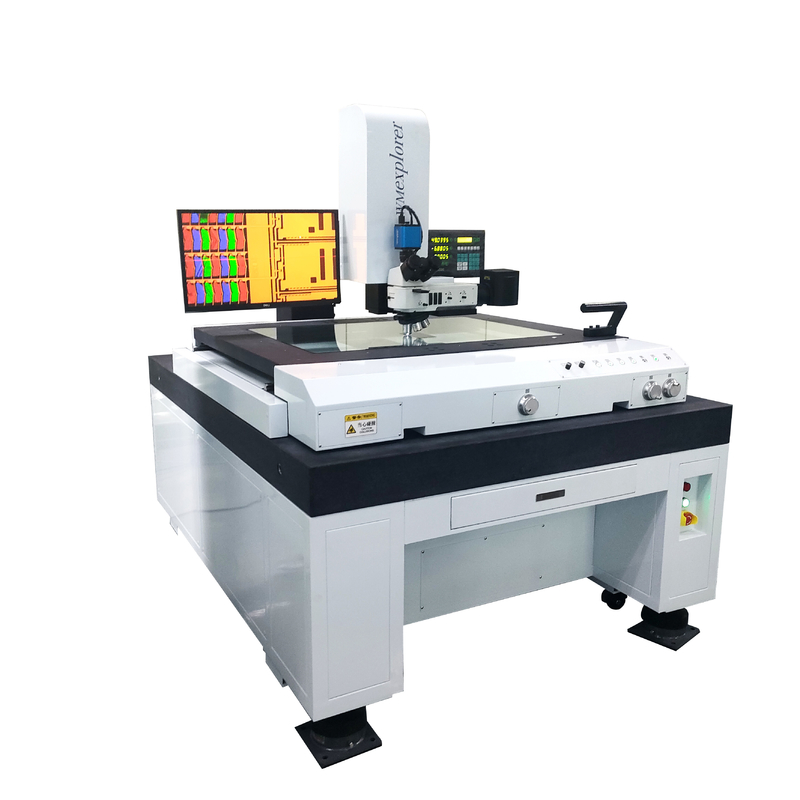

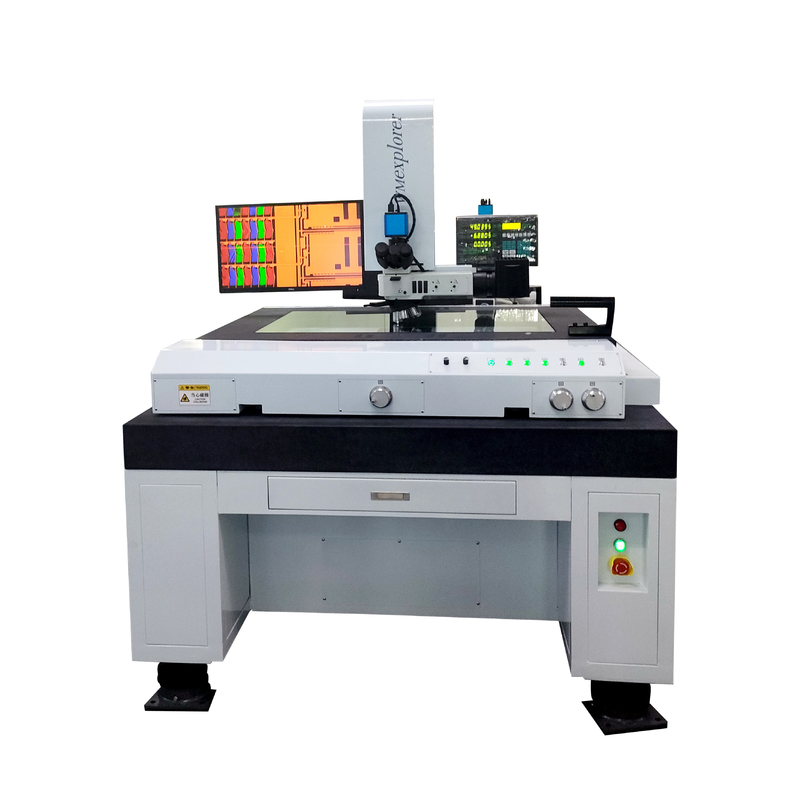

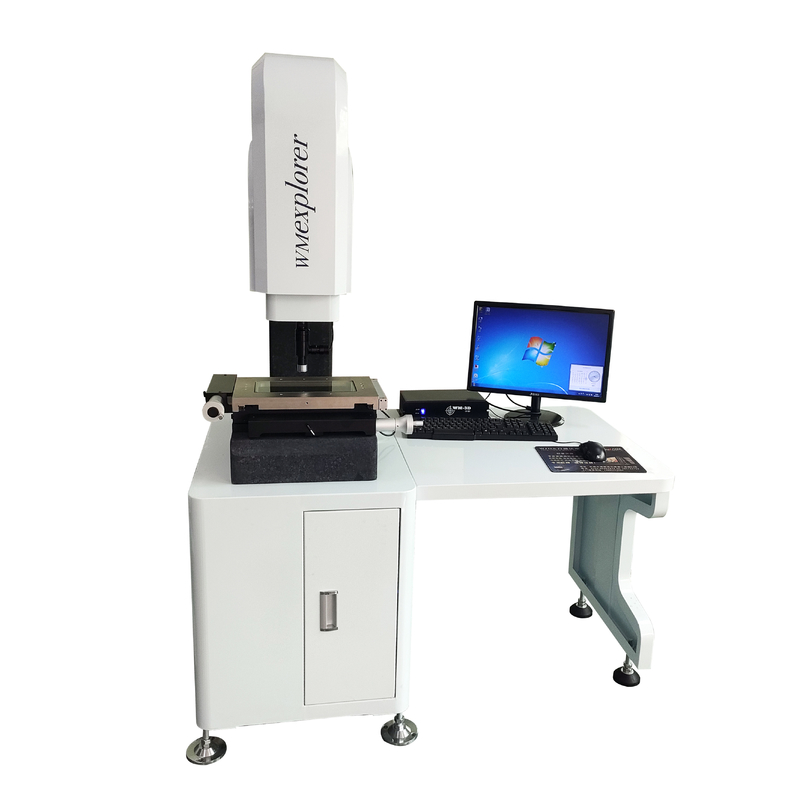

YUYANG's YYM-2010 Electrical Test Set is a high-performance profile projector and image measuring instrument. It is stylish and compact, and has been developed to meet the needs of accurate measurement in the production environment. Compared with other ordinary profile projectors, it has a larger measuring range and higher accuracy.
The YYM-2010 Electrical Test Set is made of high-quality materials from DONGGUAN. Its dimension is 500*700*1100mm, and its weight is 170kg. It has an adjustable magnification range of 0.7x~4.5x and WD of 95mm. The surface light and transmission light are used LED, and the brightness is adjustable. It has a high and stable performance with a measurement accuracy of ±3.5μm.
The YYM-2010 Electrical Test Set is widely used in a variety of industries, such as automotive, aerospace, medical, electronics, etc. It is an ideal instrument for measuring the profiles of complex parts and components. Its excellent accuracy and stability make it the preferred choice for precision image measuring.
We provide technical support and services for our Electrical Test Set product. Our technical support team is available 24/7 to provide customers with the best possible service. We can help customers troubleshoot any issues they may have with the product, answer any questions they may have, and provide advice on how to use the product more effectively. We also provide regular updates to ensure the product is running at its optimal performance.
The Electrical Test Set should be packaged in a sturdy cardboard box, making sure that all the components are secured in place and none of the items can move freely in the box.
The box should then be sealed with packing tape. The shipping label should be affixed securely to the package. Make sure to include the customer address and any other necessary information.
The package should be shipped via a reliable courier service, such as FedEx, UPS, or USPS.
