| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | IEC60529 |
| Model Number: | YY157 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5000 |
| Packaging Details: | Plywood Box |
| Delivery Time: | 10 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5 sets per month |
| Apply To The Product: | IPX1, IPX2 Test | Drip Head Size: | 800mm*800mm*75mm (H) |
|---|---|---|---|
| Drip Head Material: | 304# Stainless Steel | Hole Spacing: | 20mm |
| Lifting Height Of Drip Head: | 200mm~2000mm (Electric Adjustment) | Rainfall: | 1-3 Mm/min(+0.5mm/min) |
| Water Volume Regulation: | Manual Control | Raindrop Board Lift Range: | 800-1800mm Adjustable |
| Turntable Lift Range: | Non-adjustable, Fixed | Turntable Loads: | 50kg |
| Angle Of The Turntable: | 0°OR 15°(Horizontal Direction) | Turntable Speed: | 1 R/min(IPX1) |
| Test Time: | 0-999 Min | Body Material: | All 304# Stainless Steel |
| High Light: | Vertical Drip Test Equipment,Ipx2 Drip Test Equipment |
||

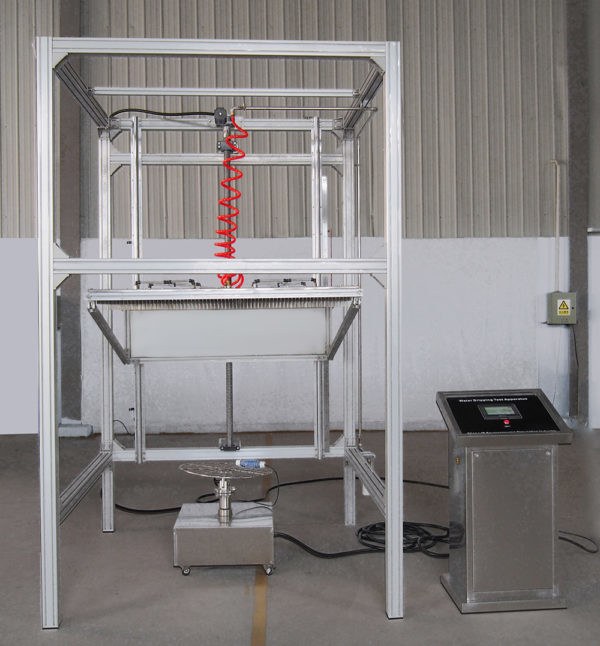

Vertical Drip Test Equipment Ipx1 Ipx2 Waterproof And Dustproof Laboratory Instrument Waterproof Tester
Product Description
It is used to the waterproof test of drip-proof and splash-proof equipment (products). It is applicable to the test to be performed when the second digit of degrees of protection by enclosures is 1 or 2.
Main parameters
|

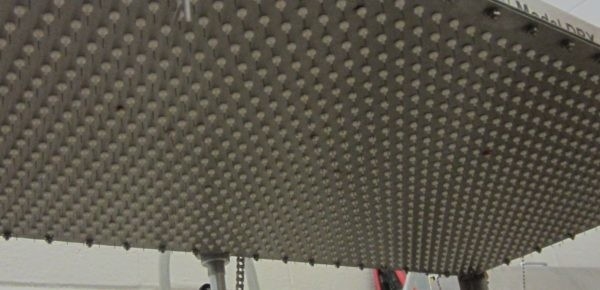

Drip head size |
800mm*800mm*75mm (H) |
|
Drip head material |
304# stainless steel |
|
Drip hole diameter |
¢0.4mm, safe and convenient to remove and install replacement type (non-needle type) |
|
Hole spacing |
20mm |
|
Rainfall |
|
|
Lifting height of drip head |
200mm~2000mm (electric adjustment) |
|
Sample table |
tilt angle 0°/15° can be replaced (convenient for testing), rotation rate 1r/min |
|
Sample table load |
≥100KG |
|
Test time |
10min or settable (reflected in centralized control system); |
|
Body material |
all 304# stainless steel |
|
Equipped with a set of rainfall measuring cylinders for calibration and self-calibration |
|
|
Dimension(L*D*H) |
about 1200X1400X2400mm |
|
Machine structure |
wall-mounted |
Features
1. Rain dripping area: 1m x 1m (Can be customized upon request)
2. Turntable: Tilt 0° or 15°, Dia 60cm (Can be customized upon request)
3. Dripping aperture: 0.4mm.
4. Rainfall: 15mm/Min(±0.5mm/min)
5. Water flow rate adjustment mode: manual setting
6. Turntable diameter: 600 mm
7. The distance between holes: 20mm x 20 mm
8. Drop of rain tank lifting height: 1000*1800 adjustable
9. Turntable bearing: 50KG
10. Turntable Speed: 1 r/min
11. Turntable lifting range: Fixed
12. Testing time: 999min
13. Protective device: Leakage, water shortage, short circuit
Standards
IEC60529:1989 +A1:1999 +A2:2013
GB/T4208-2017 Housing Protection Rating (IP Code) 14.2.1, 14.2.2 and Figure 3
GB7000.1 Lamps Part I: General Requirements and Trials 9.2.3
