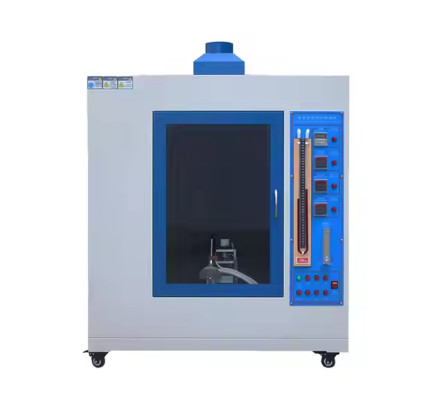

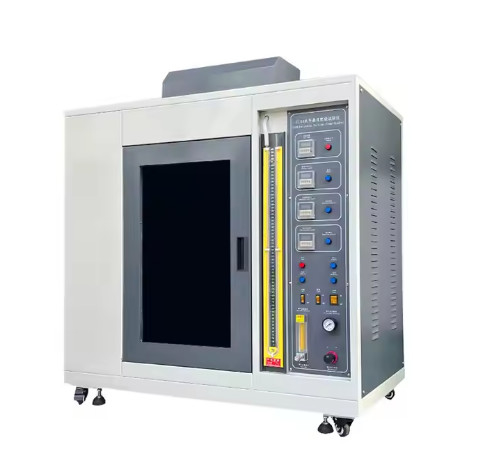

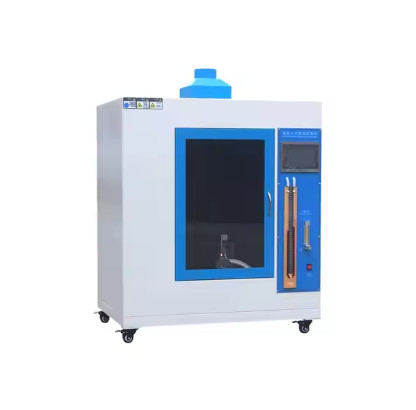

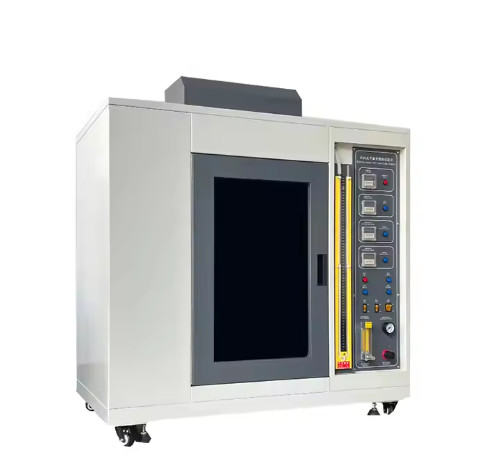

Flammability Tester Complying with UL94 Horizontal and Vertical Assessments
Description:
UL-94 Flame Retardant Tester is used for the flammability testing of plastic materials such as V-0 V-1 V-2, HB, 5V, HF-1 HF-2, HBF material or foam, and used in consumer electric devices and appliances for flammability rating assessment. Such as insulating housing of household appliances, switch panel, the printed circuit board and insulating material etc.
Main specification:
Test room: 0.85 m³
Time adjustment of continuous flame: 0 ~ 99minutes99seconds
Time adjustment of afterflame: 0 ~ 99minutes99seconds
Time adjustment of afterglow: 0 ~ 99minutes99seconds
Flame height: is easy to adjust, from 20mm to 175mm according to the standard.
Timer: 0~999.9s+/-0.1 s (adjustable)
Burn angle: 20 °,45 °,90 ° (that is 0 °) adjustable
Burner: inner diameter Ø9.5mm±0.3mm, (Bunsen burner) length of 100mm
Gas: 98% methane
Temperature testing range: 0~1000 degree
Power: AC 220V,50Hz
Size:1100mm×700mm×1300mm
Accessories: Micro gas tanks, Micro gas cylinders 2pcs, lighting device, air extractor
Gas flow control valve, Gas pressure gauge, Gas pressure regulator, Gas flow meter, Gas u-shaped pressure gauge and specimen clamp,, power line 1pcs
Standards:
ISO1210, GB4609, IEC 707, IEC695-2-2 UL94 "Fire Test" GBT2408-2008 "Determination of burning properties of plastics - Horizontal method and
vertical method" IEC60695-11-10 "Fire Test" GB/T8333-2008 "Test method for burning rigid foams - Vertical combustion method"
|
Model
|
DR-C313
|
|
Test room size
|
≥0.5CBM, with observation window
|
|
Casting time
|
0 ~ 999.9S can be set
|
|
Residual flame time
|
0 ~ 999.9S can be set
|
|
After-burning time
|
0 ~ 999.9S can be set
|
|
Burning Angle
|
20 °, 45 °, 90 ° (0 °) is adjustable
|
|
Size of the burners
|
Nozzle Ø 9.5±0.3 mm, inner diameter nozzle effective length to 100 ± 10 mm, have air conditioning
|
|
Flame height
|
20mm to 175mm adjustable
|
|
Control System
|
PLC + Touch Screen auto & manual control + Printer
|
|
Product Features
|
Equip with Lighting fixtures, Exhaust gas installations, Gas flow regulating valves, Gas pressure gauges, Gas pressure regulating
valves, Gas flow meters, Gas u-type pressure gauges and Sample fixtures
|
|
Power
|
220V±10% 50HZ
|
|
|
The Horizontal and Vertical Flammability Test Chamber is a dual-axis testing unit, meticulously crafted for assessing materials' resistance to fire.
It features an integrated design, simplifying both on-site installation and calibration processes.Constructed with stainless steel for the chamber shell and critical components,
the unit is built to withstand cigarette smoke and corrosive gases, ensuring longevity and durability. The control system is highly automated, offering seamless operations.
Equipped with an automatic ignition feature, the chamber is capable of conducting tests on samples in both vertical and horizontal positions, with an automatic flame tracking function that adjusts during the test as needed.
It provides clear displays of time and temperature, facilitating easy observation and record-keeping. The system is designed for stability and reliability, making it a dependable solution for flammability testing.
