Optical Fiber Diameter Measurement Toolmakers Vision Measurement Machine
Designed for rapid precision measurement & batch test in machinery, electronics, mould, etc
1. To measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function with clear observation.
2. Coordinate measurement, translation and coordinates straighten out.
3. Make measurement data directly into AutoCAD drafting
4. Record user program, editing and execute command.
5. In metrology terms, the machine can test width, length, height, thickness, straightness, flatness, perpendicularity, circular degree, coaxiality, etc.
6. The machine can test products as below:
1) Machinery: sheet, mould & die, gear, turning parts like bearings, shaft.
2) Electronics: phone& tablet sheet, PCB, watch parts, etc.
3) Plastics: mobile phone camera plate, cover, front bezel, slide plate, etc.
II. Features
1. Double closed-loop motion control performs micron-level precision motion
2. 8 regional LED surface light source
3. Grade 00 JINANQING granite base, column, high stability
4. Specific CNC software has wonderful measurement efficiency.
Applications:

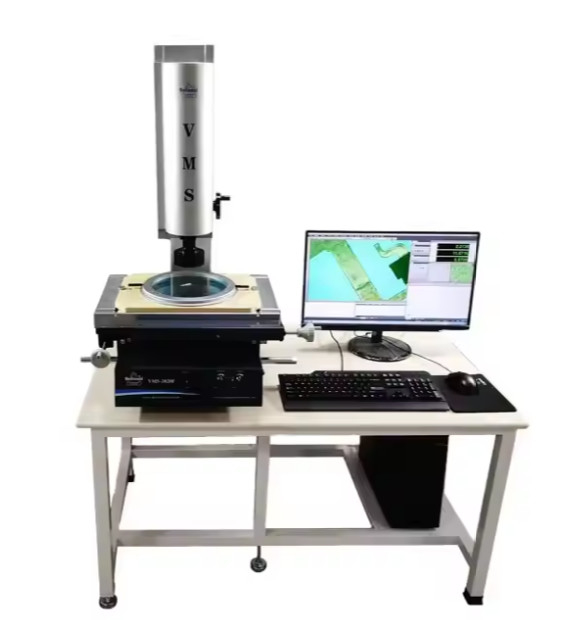

YUYANG YYM-2010 Manual Video Measuring System is an ideal solution for industrial measurement applications. It is manufactured in DONGGUAN with a three-axis travel of 200*100 mm and a resolution of 0.001 mm. The measurement accuracy reaches up to ±3.5μm, and the dimension is 500*700*1100. The system is equipped with surface light and transmission light using LED, with brightness adjustable. It is especially perfect for profile projector and manual video measuring system.
The YUYANG YYM-2010 Manual Video Measuring System provides a reliable and accurate measurement solution for various industries. The high precision and resolution of this system ensures the accuracy and repeatability of the measurement results. It also features a user-friendly design with adjustable brightness and easy operation, making it an ideal choice for industrial measurement applications. With its high performance and durability, the YUYANG YYM-2010 Manual Video Measuring System is a great tool for measuring accurately and efficiently.
Support and Services:
Electrical Test Set Technical Support and Service
We provide technical support and service for Electrical Test Set. Our experienced technicians provide personalized service for each customer. We guarantee timely and reliable service to ensure that your Electrical Test Set is up and running as soon as possible.
We provide the following services:
- Installation and setup assistance
- Troubleshooting and repair
- Calibration and verification
- Software and firmware updates
- Preventive maintenance
We also provide technical support over the phone and through our online helpdesk. Our technicians are available 24/7 to answer your questions and walk you through any issues you may be having with your Electrical Test Set.
Packing and Shipping:
Packaging and Shipping
The Electrical Test Set is securely packaged to prevent any damage during transportation. The packaging material is designed to protect the product from any external impacts, dust, moisture, and other environmental conditions. The product is then shipped in a secure box or carton to its destination.
High quality with great originality and fine-tuning
Aluminum work stage, makes the motion control fast reacting and flexible. Standard with precise linear slide way, offers smarter mechanical structure and higher accuracy. Integrated control system, embedded with motion control, and all signal control as illumination and linear scale reading, ensures the performance of the machine is extremely stable.
