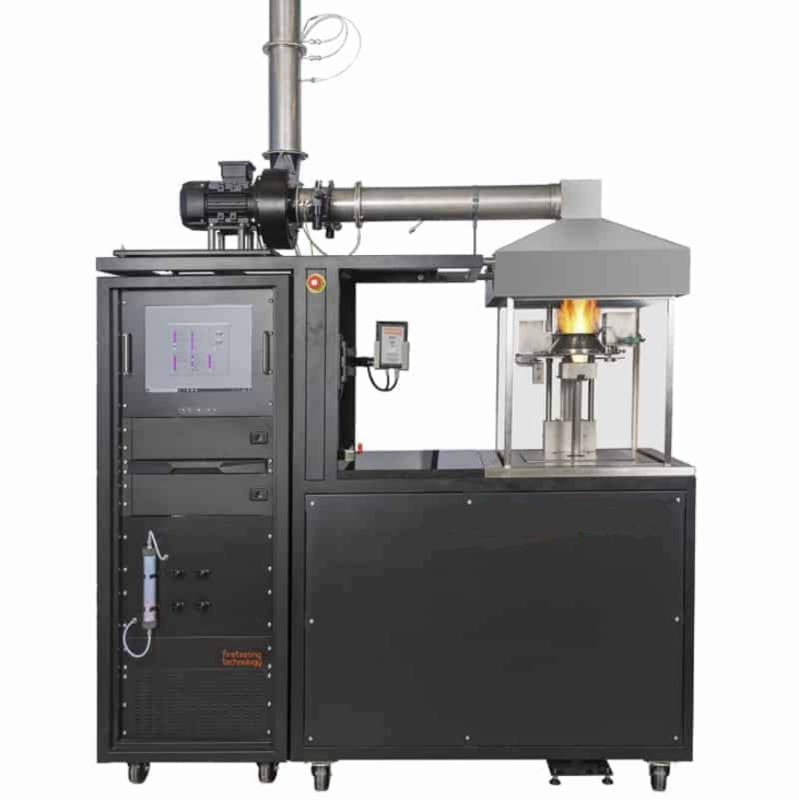

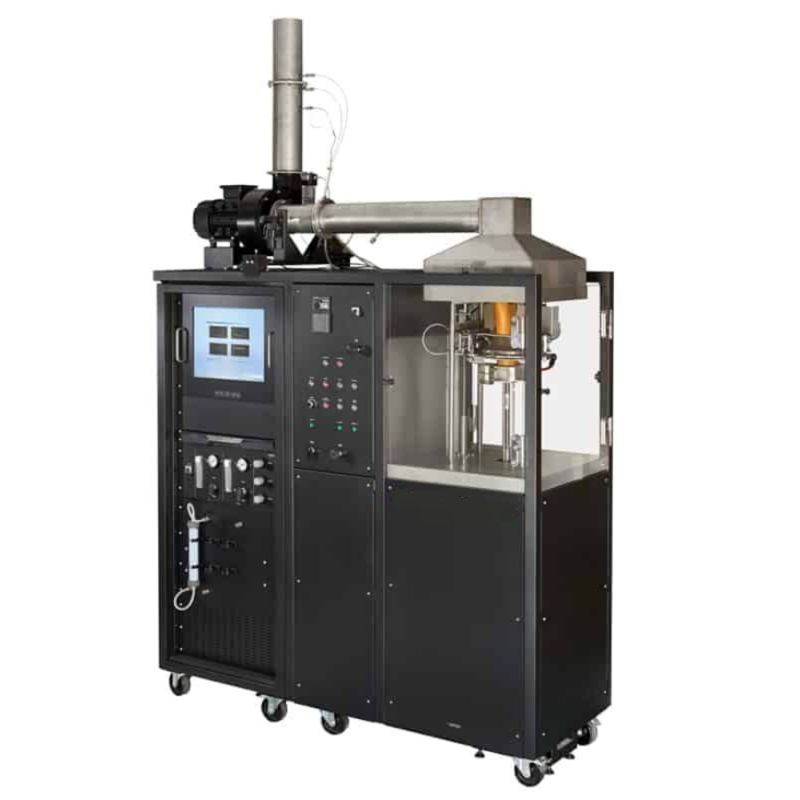

Building Materials Cone Calorimeter ISO 5660 With Control Chamber

Building Materials Cone Calorimeter ISO 5660

Introduction:

Cone Calorimeter is to inspect test specimen (100mm*10mm) with flux up to 100kW/m2 for the bench scale oxygen depletion of his development. Building Materials Cone Calorimeter ISO 5660 is based on the theory that pure combustion calories are in proportion to a necessary amount of oxygen for combustion and 13.1 MJ/kg is generated whenever oxygen 1kg is consumed, and heat emission, ignition time, oxygen consumption, CO and CO2 generation, and flow of ignited gases as generated from test materials are measured. Building Materials Cone Calorimeter ISO 5660 is made for easily controlling the whole parts with DAQ (Data Acquisition) Program in a laboratory. And 19’’ touch screen helps to test automatically as well as reduce installation space. Additionally, Conical Heater 5 Step Heat Flux Controller (optional part for R&D purpose) helps to measure combustion characteristic about specimen by temperature change and temperature rising time after setting up virtual temperature of real fire conditions. This option helps to measure various results similar to real fire environment. User can set up the user's temperature, rising speed and lasting time after rising with 5 Step Heat Flux Controller and use easily.

Standards:

• ISO 5660 : Reaction to fire tests – Heat release, smoke production and mass loss rate

• ASTM E 1354 : Standard Test Method for Heat and Visible Smoke Release Rates for Materials and Products Using an Oxygen Consumption Calorimeter

• BS 476 Pt.15 : Fire tests on building materials and structures – Method for measuring the rate of heat release of products

Features:

1. Integrated standard cabinet.
2. 10kv spark igniter, the system automatically ignites, automatically timing, automatically cuts off the gas.
3. Axial flow fan, stainless steel smoke exhaust pipe, diffuser plate, smoke collecting hood, exhaust pipe, orifice flow meter and thermometer constitute the exhaust system.
4. Ring sampler, suction pump, particulate filter, cold trap, exhaust valve, moisture filter and co2 filter constitute the gas sampling system.
5. Paramagnetic oxygen analyzer, linear response.
6. Laser system measures smoke density.
7. High-precision load-bearing sensor measures the weight change of the sample during the test.

Main Parameters:
