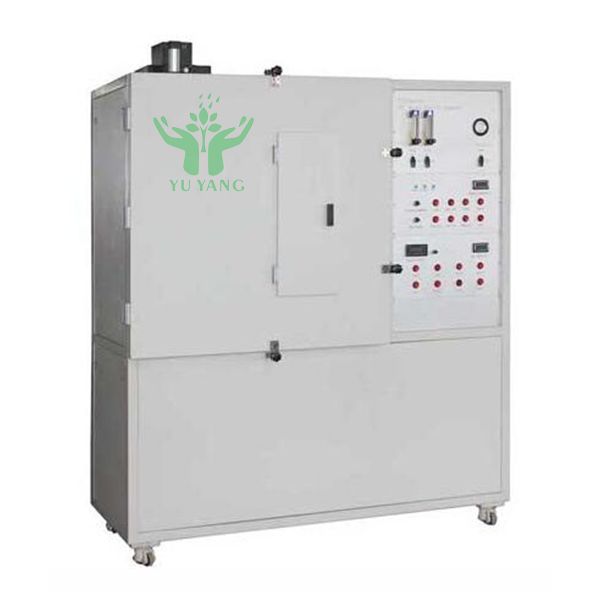

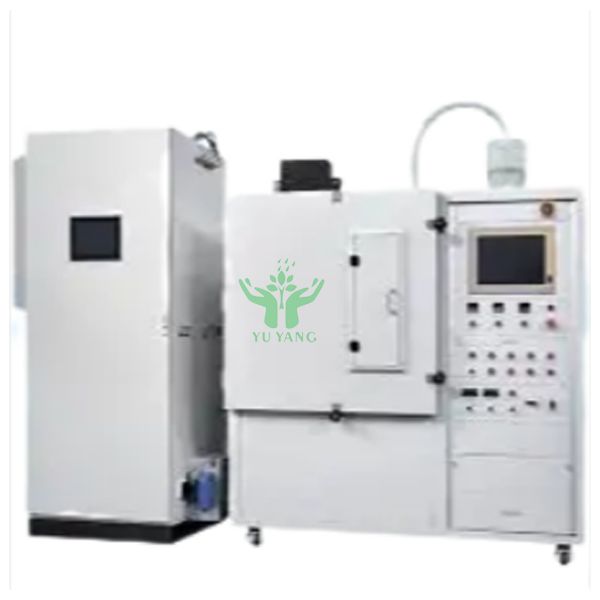

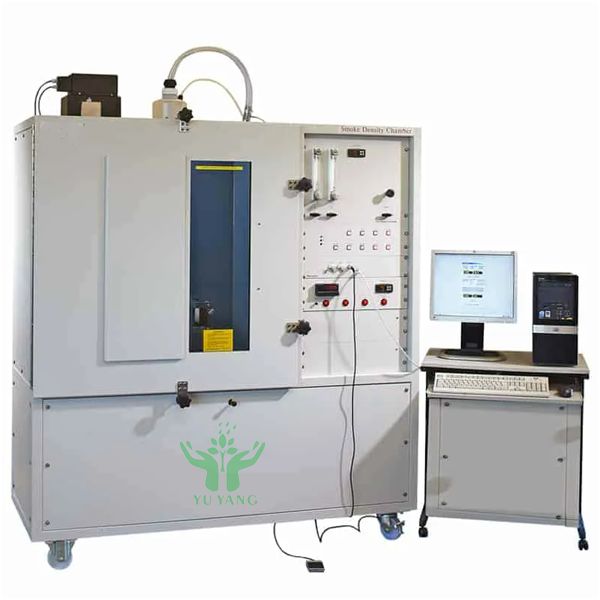

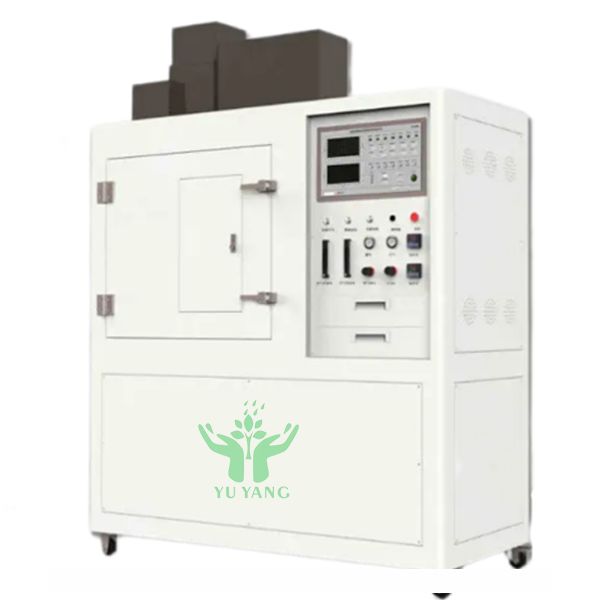

ASTM E 662 Nbs Smoke Density Chamber Of Plastic Fire Testing Equipment

ASTM E 662 Nbs Smoke Density Chamber Of Plastic Fire Testing Equipment

Nbs Smoke Density Chamber

ASTM E 662 Smoke Density Chamber

Plastic Fire Testing Equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYF027

Contact Us
Request A Quote
Product Details
Product Name:
NBS Fire Tester Smoke Density Chamber For Plastic
Standard:
ASTM E 662; ISO 5659-2; NES 711
Application:
NBS Fire Tester Smoke Density Chamber For Plastic
Exhaust:
50 L/s
Utilities:
Compressed Air, Propane Gas, Personal Computer
Power:
220 V AC, 60 Hz, 15 A
Packing:
Wooden Packing
Warranty:
12 Months
Highlight:

Nbs Smoke Density Chamber

,

ASTM E 662 Smoke Density Chamber

,

Plastic Fire Testing Equipment

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Wooden Boxes
Delivery Time
25 days accrording the quantity
Payment Terms
T/T
Supply Ability
5 Unit/Units per Month
Product Description
ASTM E 662 Nbs Smoke Density Chamber Of Plastic Fire Testing Equipment

Introduction:


Smoke Box (NBS Fire Tester Smoke Density Chamber For Plastic) measures optical density of smoke generated from test sample when test sample of certain thickness is exposed to heat source(2.5W/cm2, 2KW/m2 using by ASTM E 662 furnace) or fire in a chamber.



Using ISO 5659 conical radiant heat furnace, we can change the heating condition from 10KW/m2 to 5KW/m2 or 70kW/m2 according to different requirements.


Details:

The main principle of smoke density measurement is that in a specific space, cables or materials generate smoke under specific burning on radiating conditions. and the beam will decay after passing throuah the smoke. Measure the liaht transmittance of the beam and calculate the specific optical density And smoke density

Standard:

ASTM E 662: Standard Test Method for Specific Optical Density of Smoke Generated by Solid Materials

ISO 5659-2: Plastics-Smoke generation -Part 2: Determination of optical density by a single-chamber test


Features

1.  Integrated body and 19” analysis rack (Saving space).
2.  Air cylinder type movement to load sample or automatically open the up/down vent(highly resistant to pollution from test).
3.  Coating of the test chamber convenient in cleaning and resistant to chemicals.
4.  Lock designed to close the chamber door at a time.
5.  Indication of transmission rate and smoke density with improved accuracy.
6.  Chamber preheat system to facilitate test with more accuracy.
7.  Safety blow-out panel system to protect user when pressure is sharply increased during test.
8.  Port, heated filter, and heated line to measure toxic gases.
9.  Manometer gauge with increased accuracy by using the MFC(Mass Flow Controller) and DPT(Differential Pressure Transducer) enabling auto leakage test.
10.  Portable water cooling system without need for waterworks and plumbing when using the Heat Fluxmeter (for ISO 5659).
11.  Load cell with increased accuracy to measure mass loss rate in ISO 5659 test.

Specification

Product name ASTM E 662 NBS Smoke Density Chamber of Plastic Fire Testing Equipment
Size 1,600(w) × 820(D) × 2,150(H)
Power 220 V AC, 60 Hz, 15 A
Weight 350 kg
Exhaust 50 l/s
Utilities Compressed Air, Propane Gas, Personal Computer, Dust Collector

Cabinet structure:


1. The test box consists of a box, a sample box, a radiation cone, an igniter, a light transmission and measurement device and other related
control devices.
2. Ergonomic structure desian and control desian; the box body adopts the desian method of full open door; the door lock desian is convenient to
close the box door at one time, optimize the operation process.
3. The test box door can be fully opened, which is convenient for loading and unloading samples and cleaning the box.
4. The front door school mallet is installed. equipped with a window and a movable opaque light shielding plate that can block the window to
prevent light from entering the sealed box.
5.the controller is located on the side of the box for easy operation.When the door is closed it does not affect the viewina controler
6. Safety flameout board, easy to replace, safer operation
7. Gas measurement port can be provided for testing gas toxicity
8.The coating of the test box is easy to clean and resistant to chemical corrosion


Burning device:


1.Heating vertebra: Power 2600W, input temperature range 0~1000℃.stable within+2 ℃ within 50 minutes, and can provide radiance of
10KW/m2-50KW/m2

2 sing a mass flow controller and a differential pressure sensor can improve the accuracy of the manometer and achieve automatic leak
testing.
3. The igniter is equipped with an automatic ignition device; the flame length is 30mm±5mm. According to the standard, the blue flame has a
yellow top.


Test Results:


• Laboratory Information
• User’s CI
• Specimen Conditions
• Time from start of test, t(s)
• Transmission(%) and specific optical density, Ds
• Maximum Ds and time to maximum Ds
• Correction Ds
• Current range setting and filter position
• Current mass(g) for ISO 5659


ASTM E 662 Nbs Smoke Density Chamber Of Plastic Fire Testing Equipment 0

Our Services:


Consulting support.

Sample testing support

Training support

Installation support
