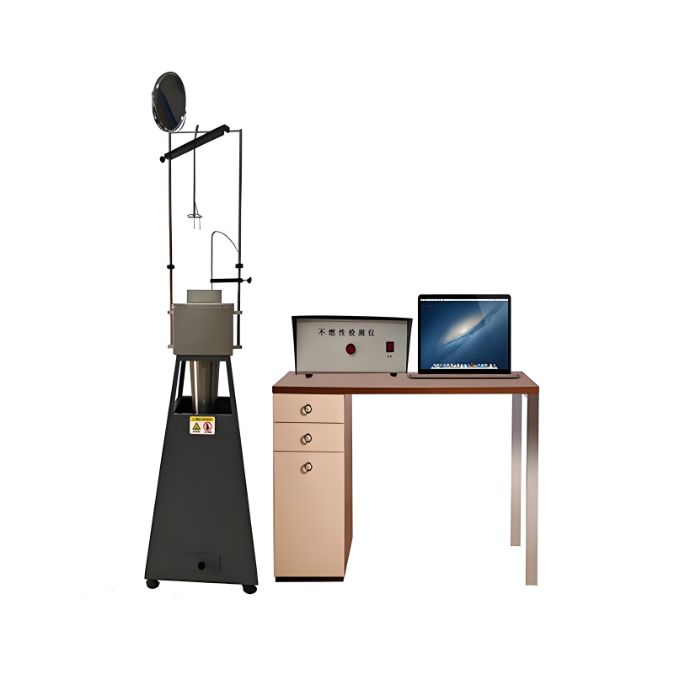

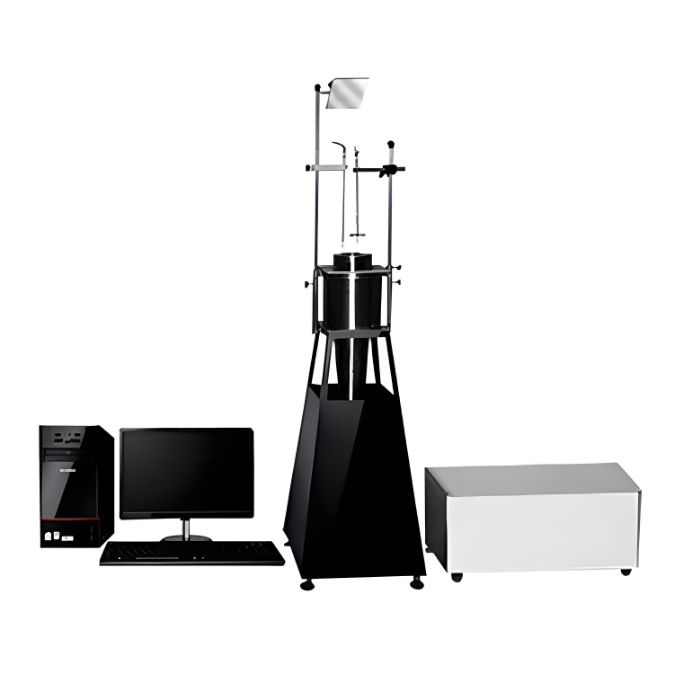

En Iso 1182 Building Materials Non Combustibility Test Apparatus

En Iso 1182 Building Materials Non Combustibility Test Apparatus

Overview:

Micro-control Building Material Non-Combustibility Test Apparatus meets the test standards of BS 476-4 "Testing methods for non-combustibility of building materials", and ISO 1182:2002 "Fire response test of building materials - non-flammability test" to determine whether the building material is non-flammable under the specified conditions.

Application:

Suitable for determining whether the building materials flammability test under specified conditions.

Standards:

ISO 1182: building products --- incombustible fire reaction test test
BS 476-4 & 11 ASTM E 136

Technical parameters:

Feature:

1. Detecting and analyzing seldom-occurring yarn faults, and classifying yarn faults.

2. Using microcomputer technology and thyristor technology to adjust the temperature of the furnace body through power.

3. The degree of automation is high, the temperature in the furnace, the center of the sample, and the surface of the sample are displayed and recorded during the test, and the operation prompt will automatically jump out of the test step.

4. The historical curve can be inquired, and the temperature balance can be automatically judged.

5. The testing process is safe, reliable and easy to operate.

6. Customized mold forming refractory hearth, good heat insulation performance.

7. Using high-quality strip heater, the furnace temperature can be raised to 900 ℃.

8. The PLC+NAbview professional software displays the furnace temperature, sample center temperature and sample surface temperature curve in real time, which can realize automatic control, data acquisition and processing, data storage and output measurement results.

9. The top is equipped with an observation mirror, which is convenient for users to safely observe the combustion state of the sample in the furnace.

Structure:

1. The apparatus is made of combustion chamber and control chamber;

2. Combustion dimension: L700 * W400 * H850 (mm);

3. Combustion chamber and control chamber are made of high quality static-electronic steel plate, plastic-spray surface treatment and perfect appearance;

4. Internal parts are made of high quality stainless steel, and anti-rust.
