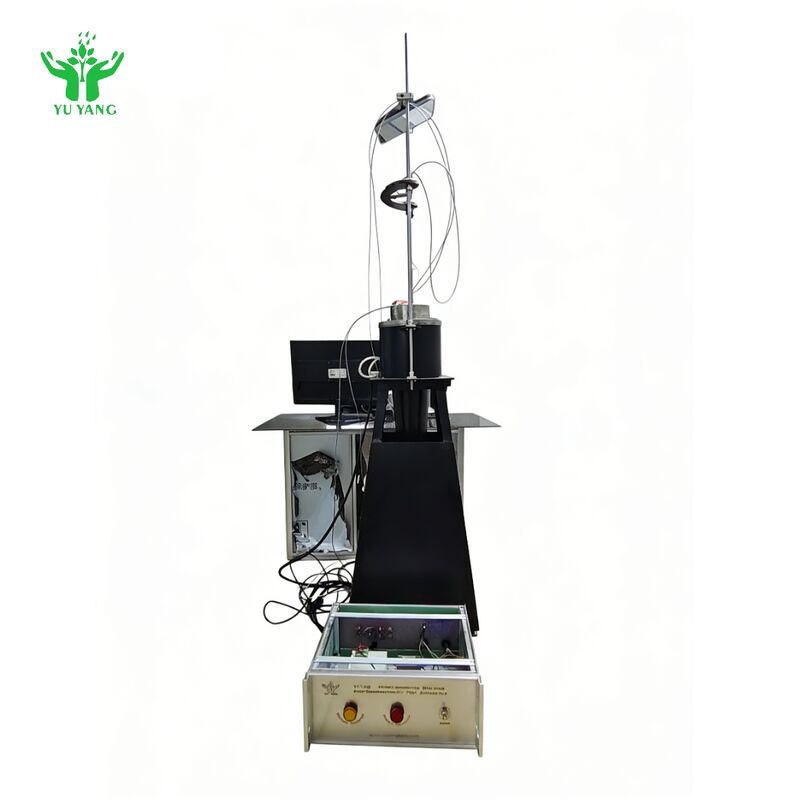

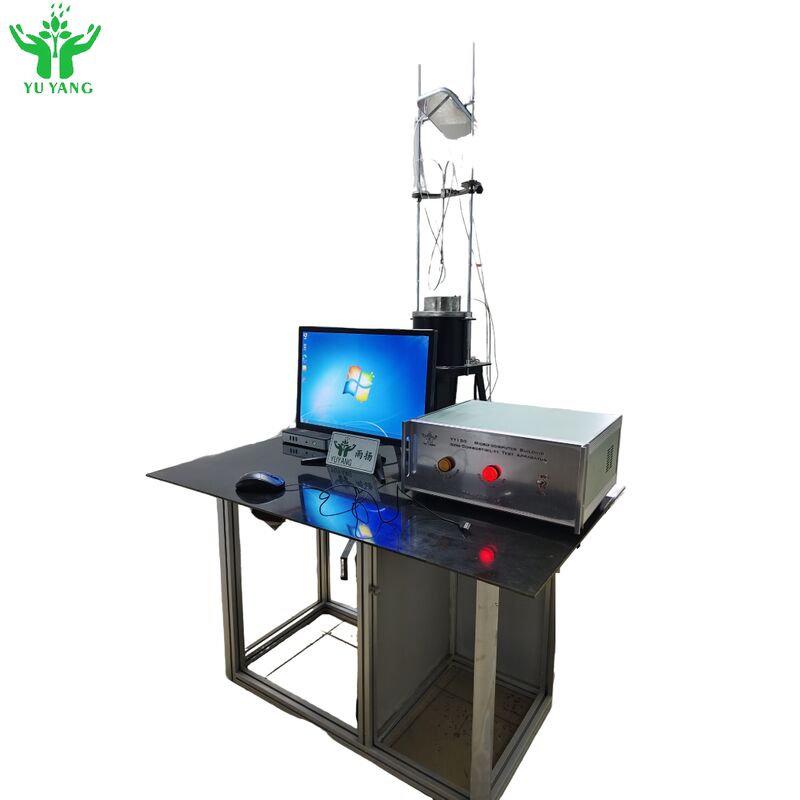

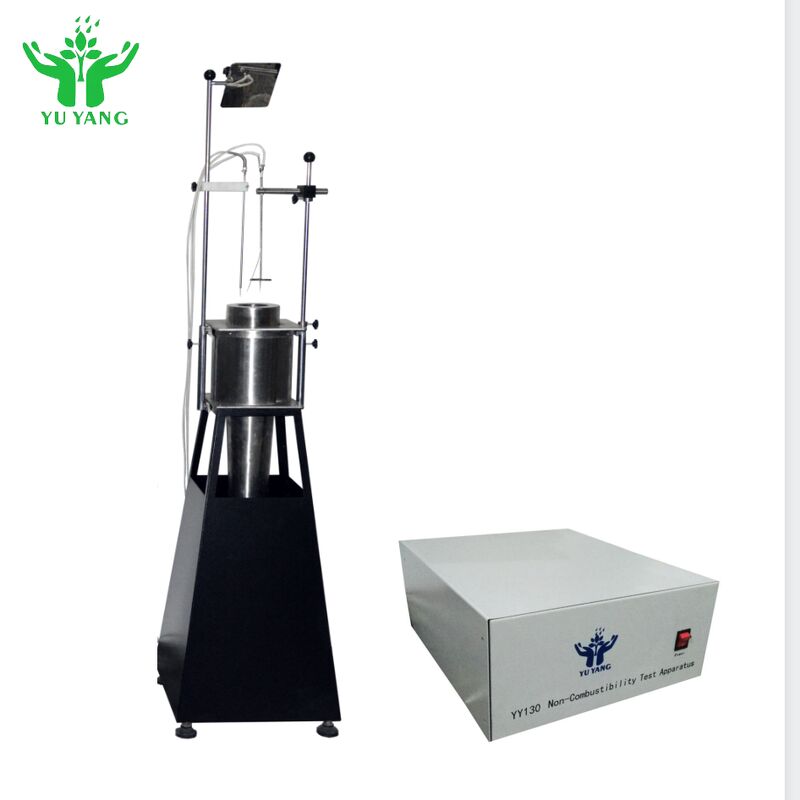

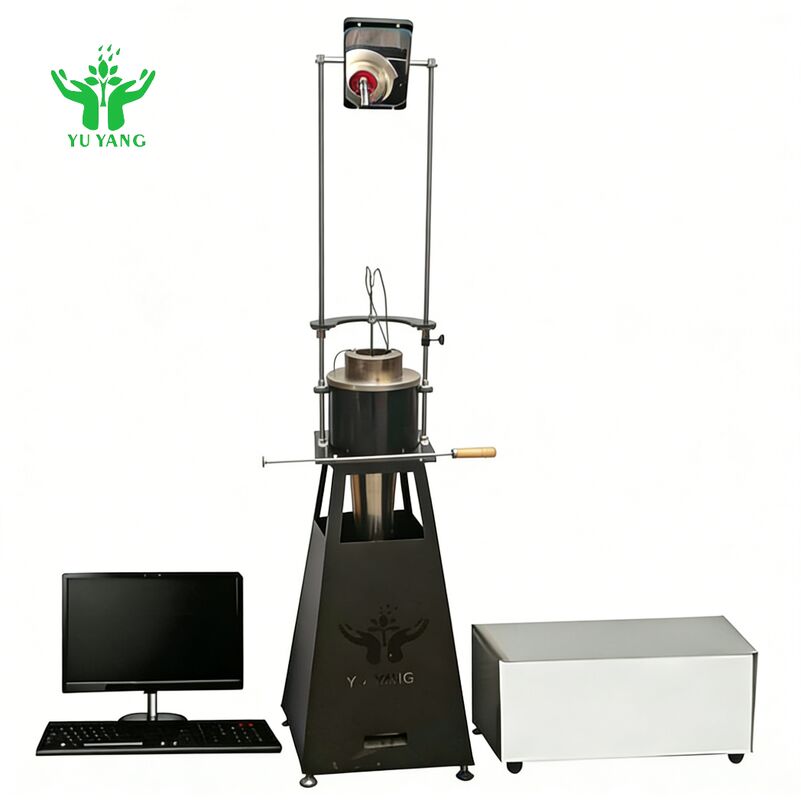

Iso Certified Computer-Controlled Non-Combustible Testing Furnace For Building Fire Resistance

Iso Certified Computer-Controlled Non-Combustible Testing Furnace For Building Fire Resistance

Introduction:

The ISO 1182 Non-combustibility test is part of the Euroclass test series. This test specifies a procedure for determining whether or not a material will contribute directly to fire development and is relevant to the classification of all building products (including floorings) into classes A1 and A2.

Application:

Determine the non-combustibility of homogeneous and non-homogeneous building materials in the furnace at a temperature of 750℃.

Features:

1. Abrasive molding heat-resistant furnace for long life.

2. Heating element of Nickel Chrome for a high temperature of 900 ºC.

3. Heat-resistant processing for safety.

4. 2 thermocouples for the center and surface of the specimen.

5. PC software control.

6. Viewing the mirror on the top for monitoring the flame performance is optional.

7. The temperature of the inside furnace calibration is optional.

8. Temperature error ±0.5ºC.

9. One-year warranty of after-sales service.

Standards:

ISO 1182: Reaction to fire test for building material---Non-combustibility test.

BS 476-4: Fire Tests on Building Materials and Structures. Part 4: Non-combustibility Test for Materials.

BS 476-11: Fire tests on building materials and structures - Part 11: Method for assessing the heat emission from building materials.

ASTM E 136

Technical parameters:

Structure:

1. The apparatus is made of a combustion chamber and a control chamber.

2. Combustion dimension: L700 * W400 * H850 (mm);

3. The combustion chamber and control chamber are made of high-quality static-electronic steel plate, plastic-spray surface treatment, and perfect appearance;

4. Internal parts are made of high-quality stainless steel and are anti-rust.
