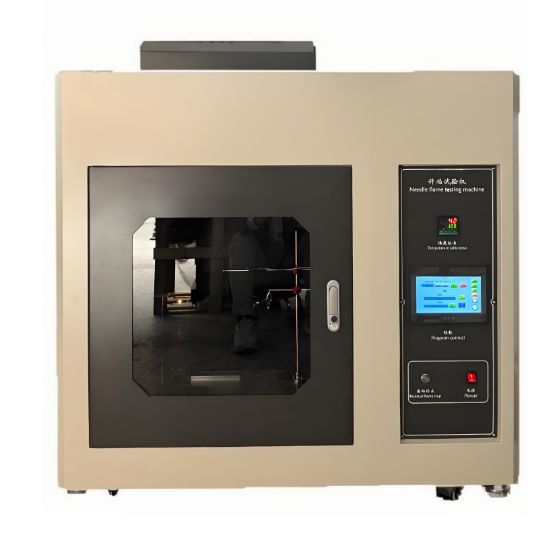

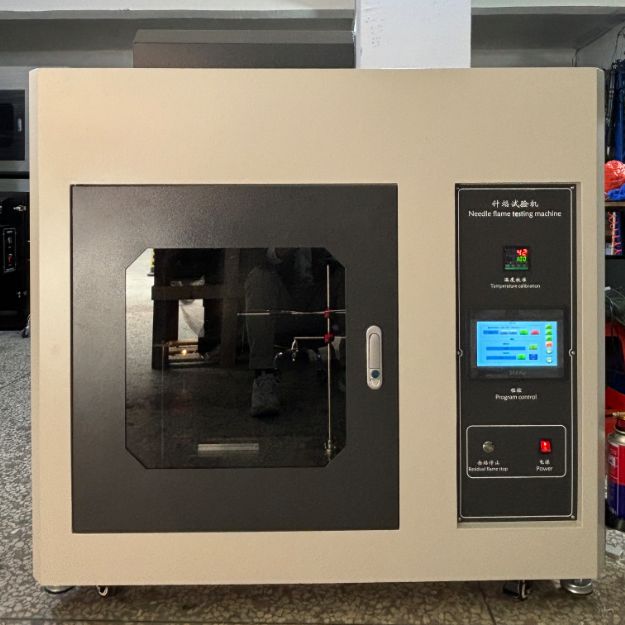

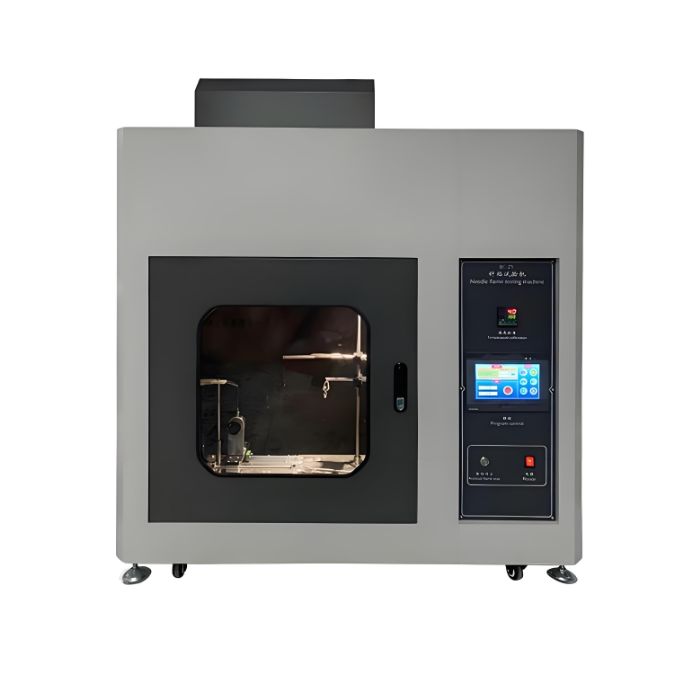

Iec 60695 Needle Flame Combustion Tester
Description:
The flame test instrument is the simulated test item specified in IEC60695-2-2 1991 (second edition), GB5169 and the first amendment to IEC60695-2-2 (March 1994). The needle flame test apparatus uses a needle burner of specified size (Φ0.9mm) and a specific gas (butane or propane). It is directed at the test specimen at a 45° angle for combustion. The ignition hazard of small flames caused by internal fault conditions in the equipment is evaluated based on whether the specimen and the ignition cushion layer ignite, the duration of ignition, and the length of combustion.
Applications:
The flame test apparatus is suitable for the research, production, and quality inspection of electrical and electronic equipment and its components, including lighting, low-voltage electrical appliances, household appliances, machine tool electricals, motors, electric tools, electronic instruments, electrical instruments, information technology equipment, electrical service equipment, electrical connectors, and auxiliary parts. It is also applicable to the industries of insulating materials, engineering plastics, or other solid flammable materials.
Parameters:
|

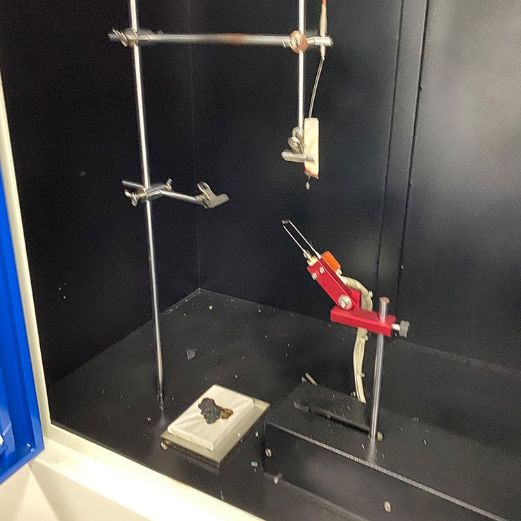

Needle burner
|
Stainless steel, inner hole Φ 0.5mm ± 0.1mm, outer diameter Φ 0.9mm, length Φ 35mm
|
|
Burner Angle
|
Can be vertical (when adjusting and measuring flame height) and tilted 45° (during testing)
|
|
Ignite the bedding layer
|
The thickness is more than 10mm, the white pine board is covered with standard silk paper of 12g /m 2 ~ 30g /m 2, and the distance from the flame application place is 200mm ± 5mm
|
|
Shut off the gas
|
95%, butane gas (baseline gas)
|
|
Gas flame temperature gradient
|
100℃±2℃ ~ 700℃±³℃ (room temperature ~ 999℃), 23.5s±1.0s (1s ~ 99.99s)
|
|
The flames were high
|
12mm ± 1mm (adjustable)
|
|
Ignition time
|
5s,10s,20s,30s,60s,120s-1 +0s (1s ~ 999.9s digital display is preset)
|
|
Hold the flame time
|
1s ~ 99.99s (digital display, can manually pause and maintain the digital display)
|
|
Experimental space
|
≥0.5m3, background black
|
|
Outline dimension
|
Length 1000mm x width 650mm x height 1140mm, exhaust hole Φ 115mm;
|
Test operation steps:
1. Clamping of samples: clamp the samples according to the standard requirements and adjust the height of the samples mounted on the fixture.
2. Flame regulation: Press the "open gas" (automatic ignition) button to open the gas source, open the flowmeter valve, put the flame height indicator on the top of the combustion seat, adjust the flowmeter valve to achieve the standard flame height (12mm±1).

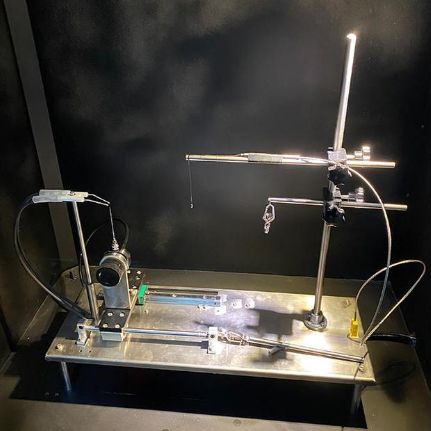

3. This machine is equipped with a flame intensity verification device. The method of use is as follows: First, place the thermocouple wire, which carries the temperature measurement copper block, directly above the needle. Then, press the 'Start Gas (Automatic Ignition)' button to start the temperature calibration. After pressing the button and the flame stabilizes, place the temperature probe over the burner's ignition point and simultaneously monitor the thermometer and timer. When the temperature reaches 100℃, the timer starts automatically. When the temperature reaches 700℃, the timer stops automatically. Check if the time on the timer is 23.5S±1.0S. (Standard requirement: 23.5S±1.0S).
4. Angle adjustment: Click on the screen to start (you need to click at the origin) automatically open to the bottom of the limit product to form a 45 degree.
5. Ignite the flame. Set the "fire supply time", adjust the position of the sample and burner.
Start the test. The burner will automatically move to the right and begin supplying heat to the sample once it is in position.
