Name: IEC60332 Single Wire And Cable Vertical Flame Testing Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY610
Price: 2150 USD
Availability: InStock

Home > products > Fire Testing Equipment >

IEC60332 Single Wire And Cable Vertical Flame Testing Machine

IEC60332 Flame Testing Machine

IEC60332 Vertical Flame Testing Machine

Cable Vertical Flame Testing Machine

Place of Origin:

China

Brand Name:

YUYANG

Model Number:

YY610

Request A Quote

IEC60332 Single Wire And Cable Vertical Flame Testing Machine

Product Details

Product Name:

Single Cable Vertical Flame Spread Tester

Control Method:

Press Button Control

Torch Burner:

1KW Combustion Nozzle

Standard:

GB/T18380.11-2008,IEC60332-1-1:2004

Blue Flame Height:

50mm ~ 60mm

Power:

AC 220V, 50/60Hz, 3A

Size:

600(W)×450(D)×1250(H) Mm

Weight:

60kg

Warranty:

12 Months

Highlight:

IEC60332 Flame Testing Machine

IEC60332 Vertical Flame Testing Machine

Cable Vertical Flame Testing Machine

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$2150

Packaging Details

Wooden Box

Delivery Time

7-15 Days

Payment Terms

T/T

Supply Ability

10 sets/per month

ISO 9239-1 ASTM E 648 Flooring Radiant Heat Flux Test Machine Tester

Get Best Price

10-80KW/M2 Adjustable Protective Clothing Tester Against Radiant Heat Test

Get Best Price

BS 476-6 Propagation Flammability Testing Machine For Building Materials and Structures

Get Best Price

ISO 6941 Flammability Test Equipment , Laboratory Textile Fabric Fire Testing Machine

Get Best Price

+86-13825723571

sales002@yuyangtest.com

86-769-26622869

Contact Now

Product Description

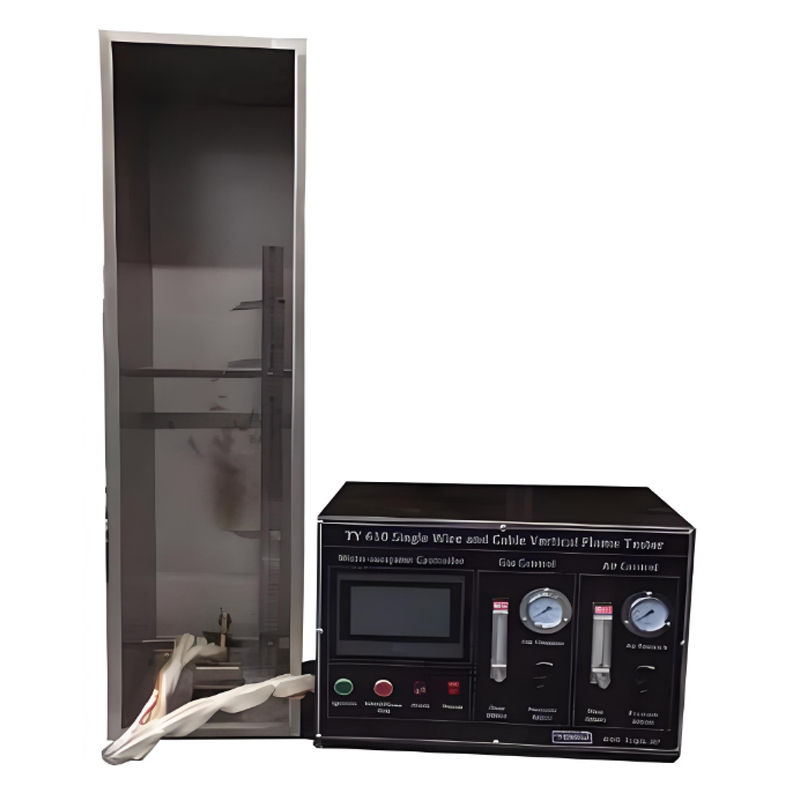

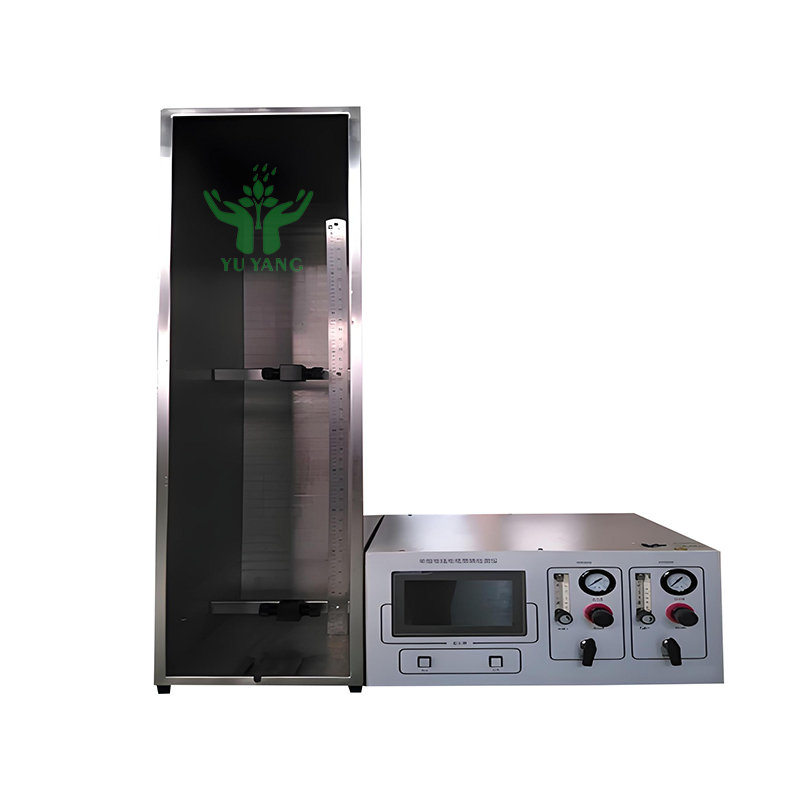

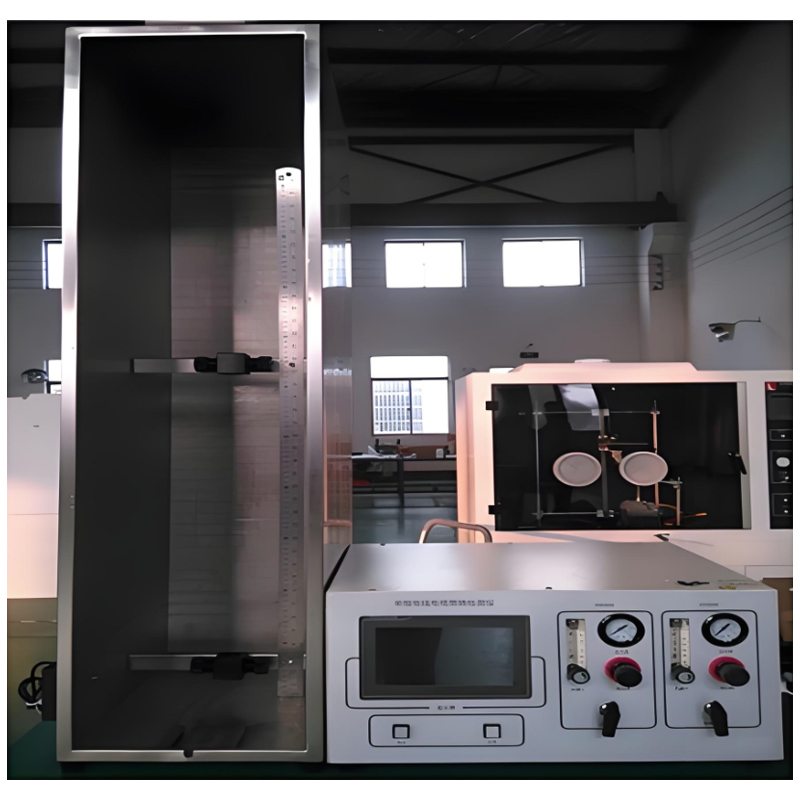

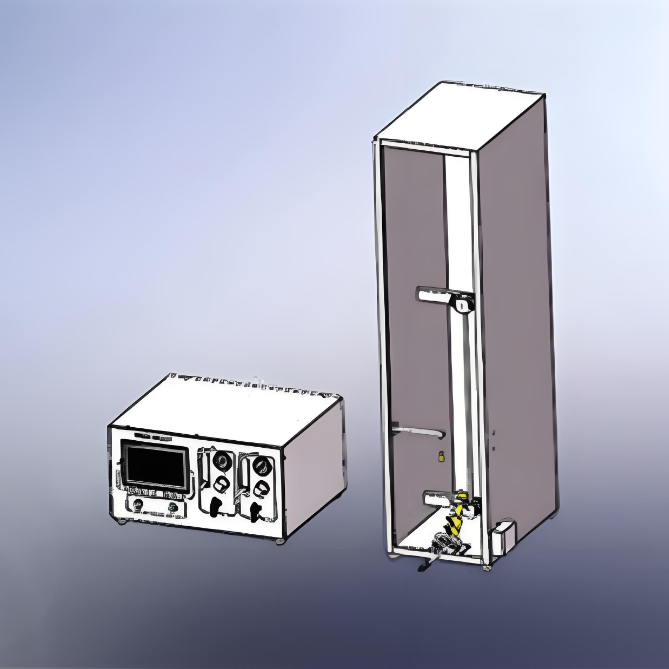

IEC60332 Single Wire And Cable Vertical Flame Testing Machine

IEC60332 Single Wire And Cable Vertical Flame Testing Machine 0

Description:

Single Cable Vertical Flame Spread Testing Machine is the most widely used and lower cost of cable fire performance test equipment; It meets the standards IEC 60332-1-1:2004 in the provisions of technical indicators and requirements. Single cable combustion Tester is used to test the flame retardant property of the cable's insulating layer under abnormal conditions such as overheat and over current. It can be used in vertical cable or fiber flame spread test, also can be test the state of flaming droplets during combustion.

Application:

This machine is suitable for the flammability test of various wire and cable insulation covering material PE, PVC and SRPVC. During the test, according to GB/t18380.11-2008 test standard. The two ends of the specimen are fixed and perpendicular to the metal cover of the metal plate. Lighted torch, make the tip of the blue inner cone touch the specimen surface and keep burner and vertical axis 45 °.

Standards:

GB/T 18380.11-2008 Test for combustion of cables and optical cables under flame conditions - Part 11: Vertical flame spread test for single insulated wire and cable

IEC60332-1-1:2004 Tests on electric and optical fibre cables under fire conditions-Test for vertical flame propagation for a single insulated wire or cable.

Specifications:

Combustion chamber	The size of the box body is 300x, 1200 x depth and 450mm
Combustion burner	1KW combustion nozzle (based on GB/t5169.14-2007 / iec60695-11-2:2003 standard), the blue flame height is 50 ~ 60mm, and the total height of the flame is 170 ~ 190mm
Gas	the gas with a high purity of 95%
Sample installation	Sample length: 600-plus / 25mm; The distance between the upper bracket of two horizontal supports and the upper margin of the lower bracket was 550mm
For fire time	0.1-999.9S continuous setting, the flame can be continuously burnt during the set time.
Installation position of the burner	The upper bracket of the blue flame contact point distance is 475mm, and the vertical axis of the spray lamp and the sample is 45 degree Angle
Control function	manual or automatic
Range of gas flow	100-1000ml/min
Air flow range	1-10l/min
Pressure gauge	0~0.75kpa range adjustment
Ignition mode	High voltage automatic ignition

Advantages:

It is to use a Bunsen burner of a specified size and a specific gas source (propane) to ignite the test sample in a vertical state at a certain flame height and a certain flame application Angle at regular intervals. The flammability and fire hazard of the test sample are evaluated based on the duration of ignition and combustion of the test sample and the length of combustion.
