Fmvss 302 Flammability Of Interior Materials Laboratory Fire Testing Equipment
Product overview:
This machine complies with the test methods of GB8410-2006, American standard FMVSS571.302, and DIN7520 "Combustion Characteristics of Automotive Interior Materials". Interior materials include single materials or layered composite materials used for automotive interior parts, such as seat cushions, seat backrests, seat covers, seat belts, headrests, armrests, movable folding roofs, all decorative panels, instrument panels, glove boxes, indoor cargo racks, or rear window sills, curtains, floor coverings.
Application:
Motor vehicles interior accessories
Standard:
DIN 75200 Flammability Test to Motor Vehicle——Determination of burning behaviour of interior materials in motor vehicles
ISO 3795 Road vehicles, and tractors and machinery for agriculture and forestry -- Determination of burning behaviour of interior materials
FMV SS302 Flammability of Interior materials
SAE J369 Flammability of Polymeric Interior Materials - Horizontal Test Method
Feature:
1. FMVSS 302 Flammability of Interior Materials for Laboratories Fire Testing is suitable to determination for flammability, after burning, flame resistance and burning speed for motor vehicles organic materials.
2. Comply with ISO 3795, ASTM D5132, FMVSS 302 etc.

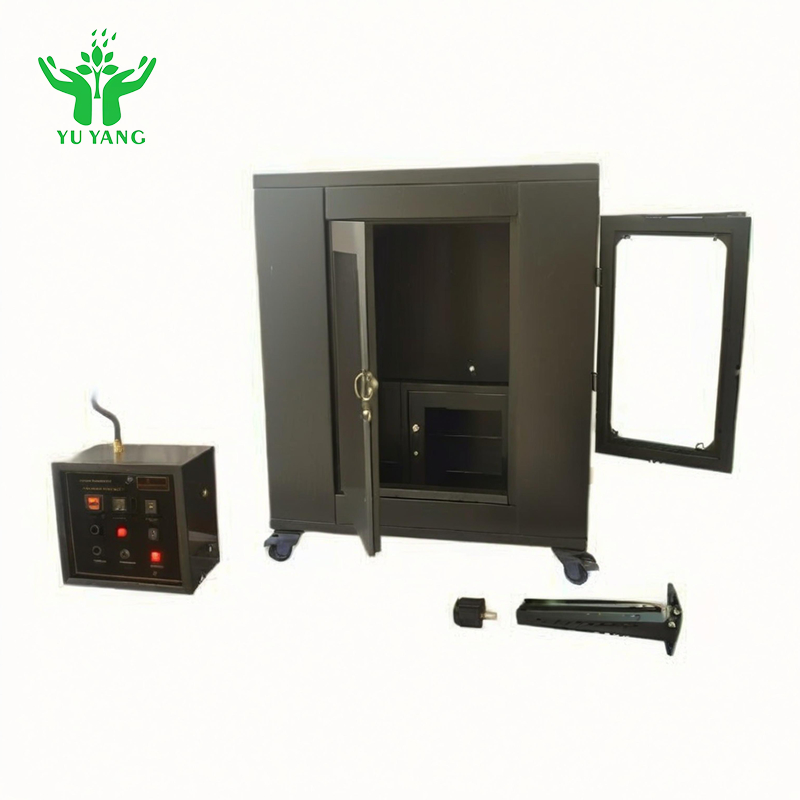

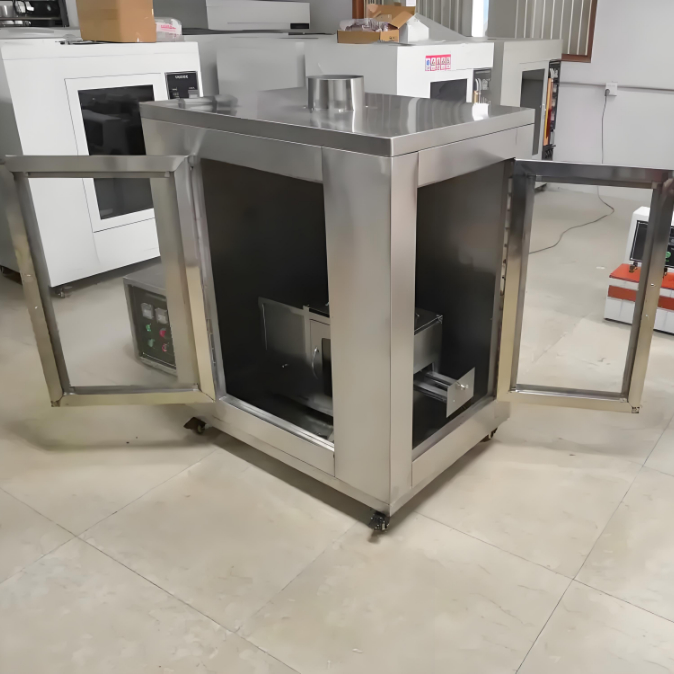

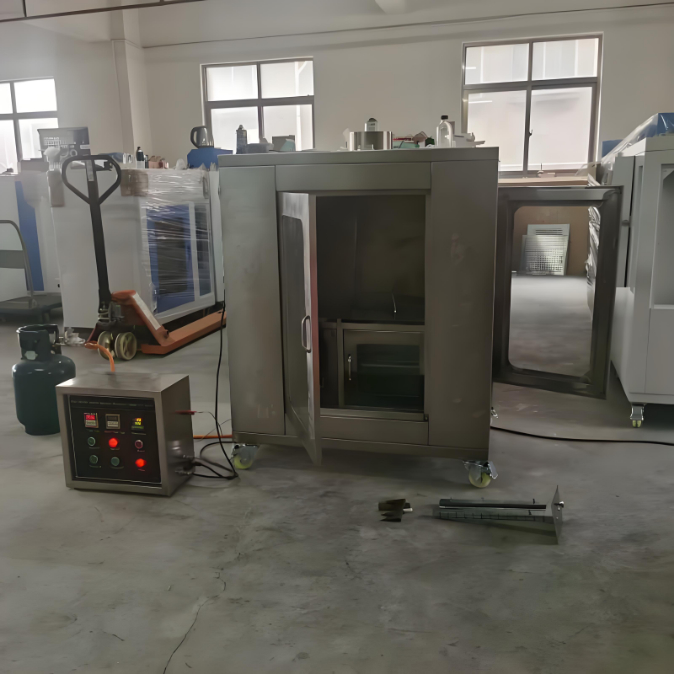

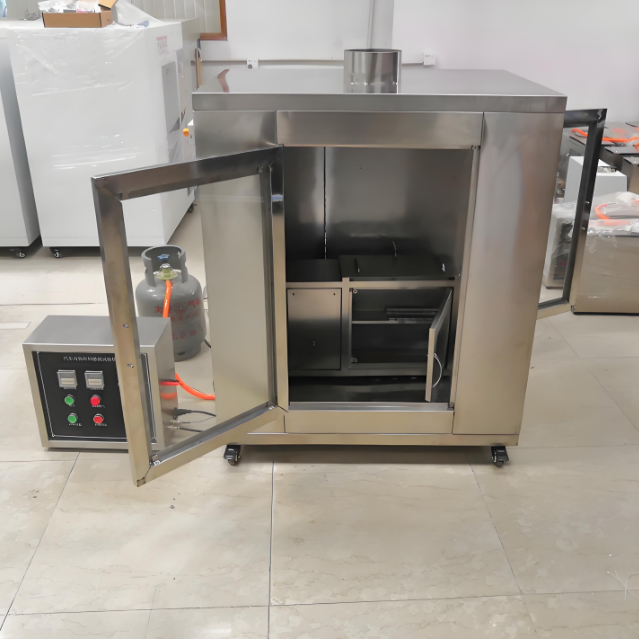

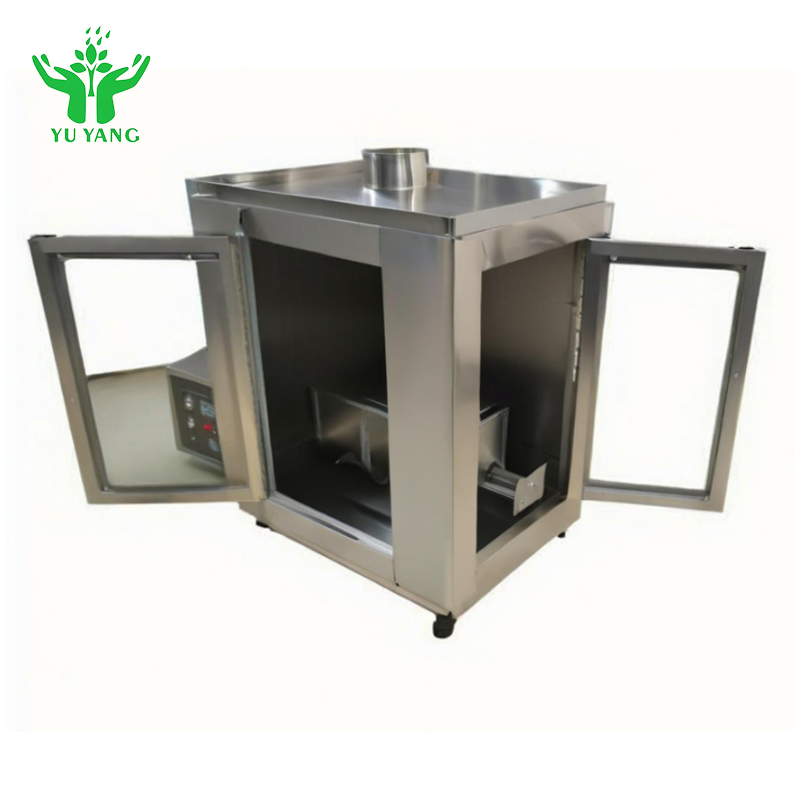

3. Comprised of draft free stainless steel cabinet with observation window, sample holder and door mounted burner.
4. Automatic control of timing and gas supply.
Technical parameter:
|
Combustion box
|
Stainless steel plate structure, steel plate thickness 1.0mm
|
|
|
Combustion chamber size: width x height x depth: 385 x 360 x 204mm
|
|
|
There are 10 ventilation holes with a diameter of 19mm at the bottom,
and ventilation slots with a width of 13mm around the four walls near the top.
|
|
|
Test bracket: made of two U-shaped corrosion-resistant metal steel plates,
with dimensions of 361 x 100mm in length and width
|
|
Control box
|
Combustion time: 0~99.99/S/M/H can be set arbitrarily
|
|
|
Continuation time: Combustion time: 0~99.99/S/M/H can be set arbitrarily
|
|
Combustion lamp
|
Inner diameter of nozzle: 9.5mm
|
|
|
Gas source: Gas (to be provided by the customer)
|
|
|
Flame height: 38mm
|
