Name: Copper Wire and Cable Elongation Tester, Copper Material Cable and Wire Elongation Tester/Test Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYW-005
Price: 25,000.00 USD
Availability: InStock

Home > Products > Wire Testing Equipment >

Copper Wire and Cable Elongation Tester, Copper Material Cable and Wire Elongation Tester/Test Machine

copper wire elongation tester

cable elongation test machine

wire testing equipment with warranty

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YYW-005

Request A Quote

Copper Wire and Cable Elongation Tester, Copper Material Cable and Wire Elongation Tester/Test Machine

Product Details

Diameter Range:

0.08~0.8mm

Drawing Speed:

250~300mm/minu

Starting Length:

250mmu

Extended Range:

0~48%

Display Accuracy:

0.1%

Input Power:

AC220V 50/60Hz

Size:

50×21×24(cm)

Weight:

23KG

Highlight:

copper wire elongation tester

cable elongation test machine

wire testing equipment with warranty

Payment & Shipping Terms

Minimum Order Quantity

Set/Sets

Price

pending

Delivery Time

Payment Terms

L/C, T/T

Supply Ability

Wire Bending Test Machine/ Plug Lead Bending Tester/ Plug Bending Tester

Get Best Price

Video

Latest 220V Electronic Spark Tester For Wire And Cable 1-Year Warranty On Insulation Wrap

Get Best Price

Video

Ventilation Type Aging Test Chamber For Wire Testing Equipment With Huge Tempered Glass Windows

Get Best Price

Video

Copper Wire Cable Spark Tester , 250-300mm/Min Elongation Testing Machine

Get Best Price

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contact Now

Product Description

Copper Wire and Cable Elongation Tester, Copper Material Cable and Wire Elongation Tester/Test Machine

Product Specifications

Attribute	Value
Diameter range	0.08~0.8mm
Drawing speed	250~300mm/min
Starting Length	250mm
Extended range	0~48%
Display Accuracy	0.1%
Input Power	AC220V 50/60Hz
Size	50×21×24(cm)
Weight	23KG

Product Description

The instrument is used to test the elongation characteristics of aluminum, copper, iron and other metal materials. This machine is made of metal materials do damage elongation test; advanced software design and sophisticated electronic sensor technology to measure the amount of tensile test, and automatically converted to LED than the numerical display, easy to read accurate, simple, popular.

Technical Specifications

Sample sampling length	250mm
Specimen diameter	φ0.03-φ1.0mm
Extension range	0-60mm
Measurement Accuracy	±1%
Working power	AC220V, 50Hz, 2A
Machine size	650250250mm

Usage Instructions

Connect the AC110V power supply to the elongation test stand.

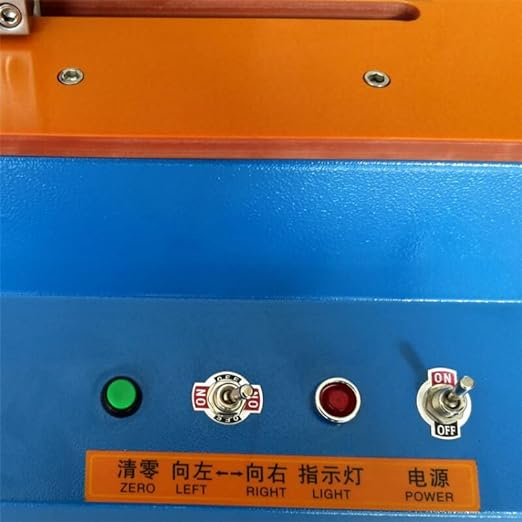

Pull out the power switch to the ON position.
Pull the steering switch to the left. After the motor limit stops, take the 250mm long test object and put it in the left fixture for fastening, then straighten it and put it in the right fixture for fastening.
Press the reset switch to reset, pull the direction switch to the right, the motor slowly tensile test, the counter will be counted according to the percentage of frequency.
The test product is broken after stretching a certain length, the motor will automatically stop, the counter will stop counting, save the test value end of the test. The value displayed by the LED is the stretch length of the product.

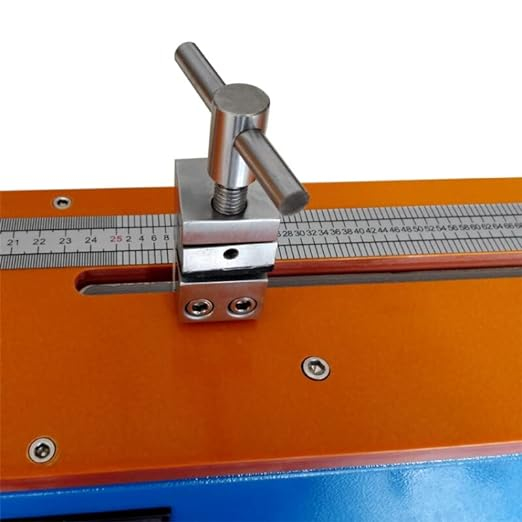

For the accuracy of the test, the machine is equipped with a scale. After the test, the scale value corresponding to the indicator can be compared with the display value. To ensure the error of test results.
After the test, turn off the power switch and unplug the power cord.

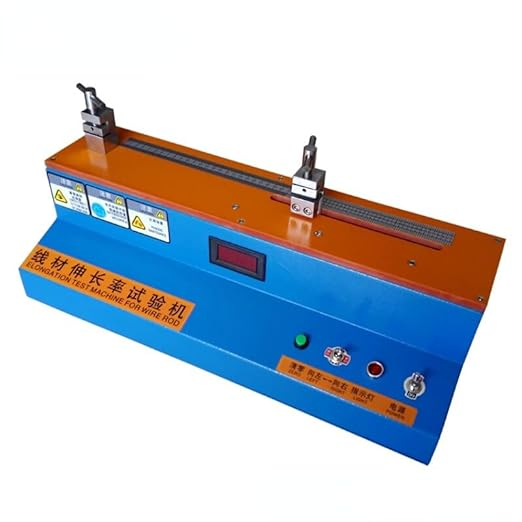

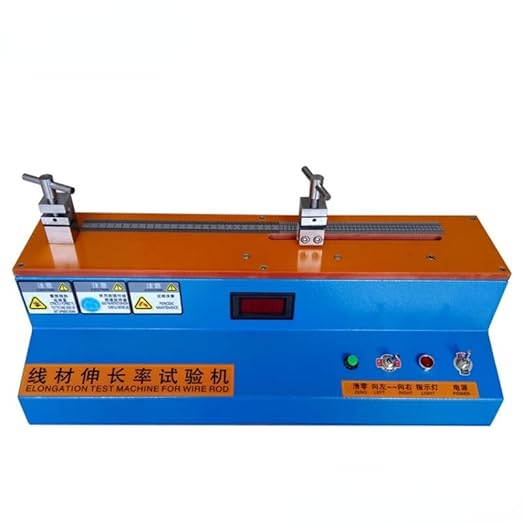

Product Images
