YY-121 Building Materials Difficult Flammability Test Equipment

YY-121 Building Materials Difficult Flammability Test Equipment

flammability test equipment for building materials

difficult flammability testing equipment

building materials flammability tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY121

Contact Us
Request A Quote
YY-121 Building Materials Difficult Flammability Test Equipment YY-121 Building Materials Difficult Flammability Test Equipment YY-121 Building Materials Difficult Flammability Test Equipment YY-121 Building Materials Difficult Flammability Test Equipment YY-121 Building Materials Difficult Flammability Test Equipment YY-121 Building Materials Difficult Flammability Test Equipment
Product Details
Flow Meter:
Methane: 5 ~ 45L/min Adjustable, Air: 3 ~ 30L/min Adjustable, Precision Level: 2.5 Grade
Power Supply:
380V AC 50HZ Using Gas: Methane (purity Over 95%)
Thermocouple:
3.0mm Diameter And 1.5mm Armored Thermocouple
Burner Nozzle Diameter:
3.5mm, Dimensions: 200 X 200 (mm) From The Bottom Of 1000mm
Gas Source:
>95% Propane Gas;（user Should Provide For Themselves）
Gas Pressure:
10kpa~50kpa
Highlight:

flammability test equipment for building materials

,

difficult flammability testing equipment

,

building materials flammability tester

Payment & Shipping Terms
Minimum Order Quantity
Set/Sets
Price
pending
Delivery Time
5
Payment Terms
L/C, T/T
Supply Ability
20
RELATED PRODUCTS
Good price Building Materials Ignitability Flammability Tester for Single Flame Source Test online

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Get Best Price
Good price Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment online

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

Get Best Price
Good price YY-121 Building Materials Difficult Flammability Test Equipment online

YY-121 Building Materials Difficult Flammability Test Equipment

Get Best Price
Good price Class II A2 Biological Safety Cabinet with 780mm Depth online Video

Class II A2 Biological Safety Cabinet with 780mm Depth

Get Best Price
Contact Us
86-769-26622869
Contact Now
Product Description

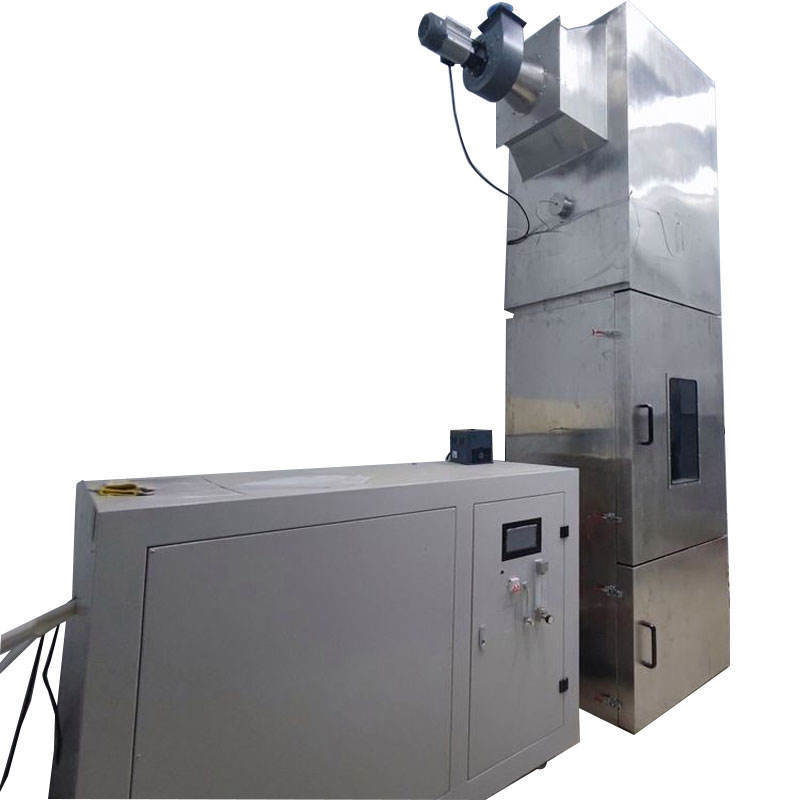

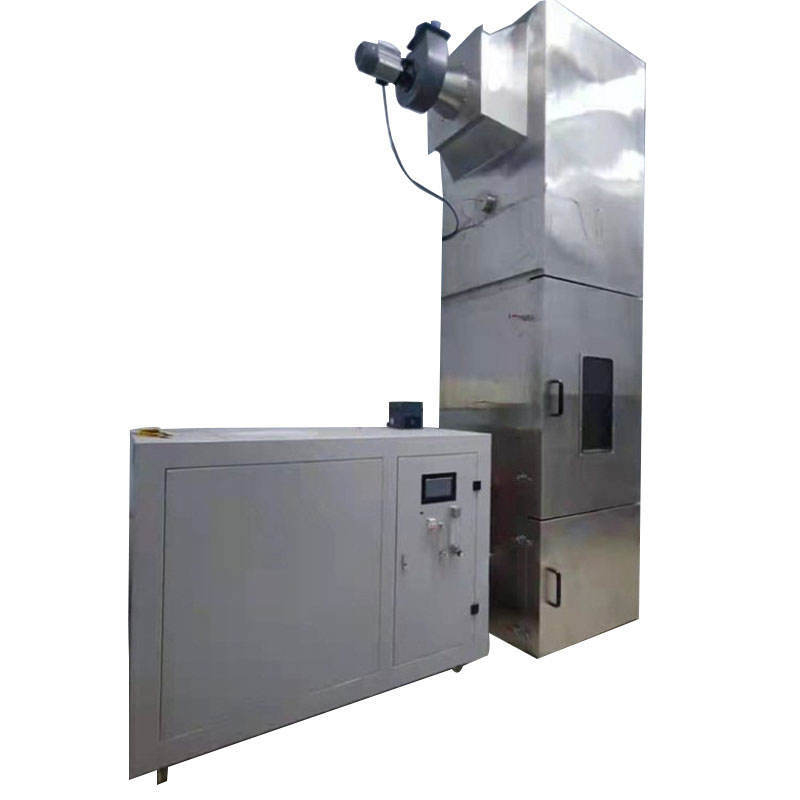

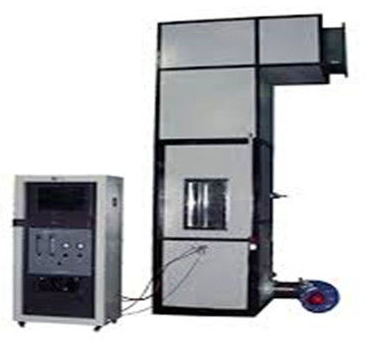

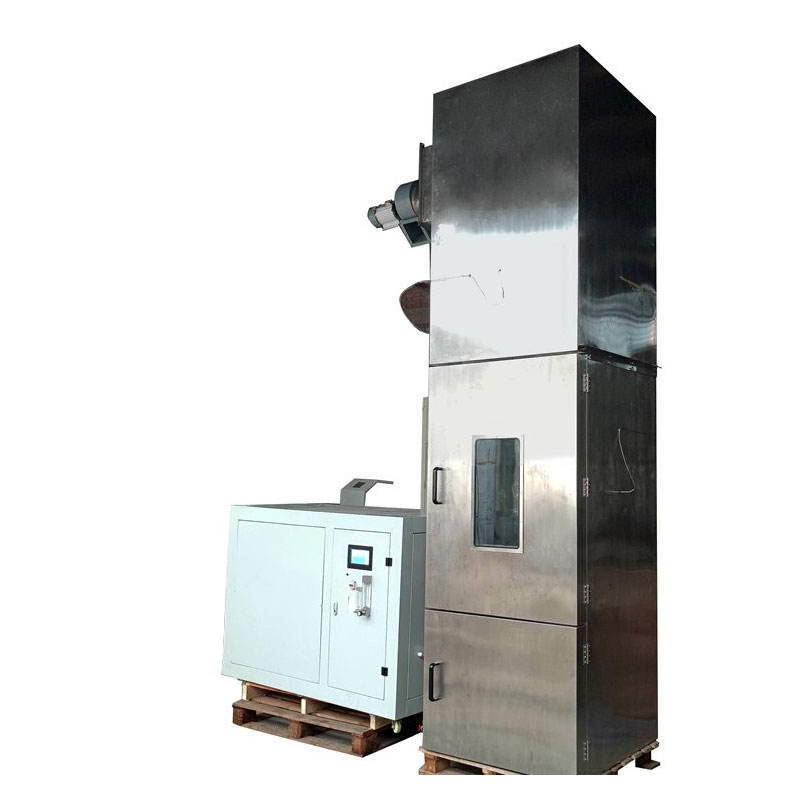

YY-121 Building Materials Difficult Flammability Test Equipment
YY-121 Building Materials Difficult Flammability Test Equipment 0 YY-121 Building Materials Difficult Flammability Test Equipment 1
The YY-121 Building Materials Difficult Flammability Test Apparatus is designed for flame retardant performance testing of building materials. This computer-controlled equipment offers high automation for accurate fire resistance performance evaluation.
Compliance Standards
  • GB/T 8625 Test method of difficult-flammability for building materials
  • DIN 4102-15 Fire behavior of building materials and elements Brandschach
Key Features
  • Complete burning shaft furnace system including combustion chamber, burner, specimen support, air current stabilizer, and flue
  • Computer-controlled operation for precise furnace temperature and pressure management
  • High degree of automation for consistent test results
Working Principle
The testing process begins with four conditioned specimens vertically fixed on the test bracket, forming a vertical square flue. The specimens are positioned at (250±2) mm intervals. A uniform airflow is created in the combustion chamber through a 200mm diameter pipeline, maintaining a constant rate of (10±1) m³/min at controlled temperature.
Gas flow is adjusted to (35±0.5) L/min and air flow to (17.5±0.2) L/min before automatic ignition. The 10-minute test concludes when either the average flue gas temperature exceeds 200°C across five thermocouples or the maximum measured value surpasses 200°C.
Technical Parameters
Parameter Specification
Power supply 380V AC 50HZ
Gas requirement Methane (purity > 95%)
Flow meter range Methane: 5-45L/min, Air: 3-30L/min (2.5 grade precision)
Specimen size 190 x 1000mm (four specimens per test, thickness ≤80mm)
Thermocouple 3.0mm diameter and 1.5mm armored thermocouple
Burner specifications Nozzle diameter: 3.5mm, dimensions: 200 x 200mm (positioned 1000mm from bottom)
Combustion furnace dimensions 1020 x 1020 x 3930mm (external), 800 x 800 x 2000mm (internal)
Weight 1 ton
YY-121 Building Materials Difficult Flammability Test Equipment 2 YY-121 Building Materials Difficult Flammability Test Equipment 3
