Name: EN817 Water Flow Testing Machine - 30L/min Flow Rate Tester with 0.6 MPa Pressure and Real-Time Data Display
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYE099
Price: 25,000.00 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

EN817 Water Flow Testing Machine - 30L/min Flow Rate Tester with 0.6 MPa Pressure and Real-Time Data Display

30L/min Water Flow Testing Machine

0.6 MPa Pressure Flow Rate Tester

Real-Time Data Display Flow Rate Testing Equipment

Place of Origin:

CHINA

Brand Name:

YUYANG

Certification:

Model Number:

YYE099

Request A Quote

Product Details

Method:

Hot&Cool Water Regular Test

Standards:

GB, ASTM, EN 200,EN 1112，EN 817

Function:

6bar Regular Pressure Flow Test Hose Sprinkler Angle Valve Flow Test

Range:

2.5～30L/min

Water Temperature Range:

Room Temperature-60℃

Power:

380V 50HZ 2.5KW

Material:

304 Stainless Steel

Highlight:

30L/min Water Flow Testing Machine

0.6 MPa Pressure Flow Rate Tester

Real-Time Data Display Flow Rate Testing Equipment

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiation

Packaging Details

Wooden Box

Delivery Time

7-30 Days

Payment Terms

L/C,D/A,D/P,T/T,MoneyGram,Western Union

ISO3795 FMVSS 302 Road Vehicles Interior Materials Horizontal Flammability Tester

Get Best Price

Electronic Limiting Oxygen Index for Test Apparatus 220V with 1 Year Warranty

Get Best Price

ISO5660 Cone Calorimeter Heat Release Tester Machine for Building Materials 220V 1 Year Warranty

Get Best Price

BS EN 13823 Single Burning Item Test Apparatus (SBI) for Building Materials

Get Best Price

8613825728654

sales09@yuyangtest.com

86-769-26622869

Contact Now

Product Description

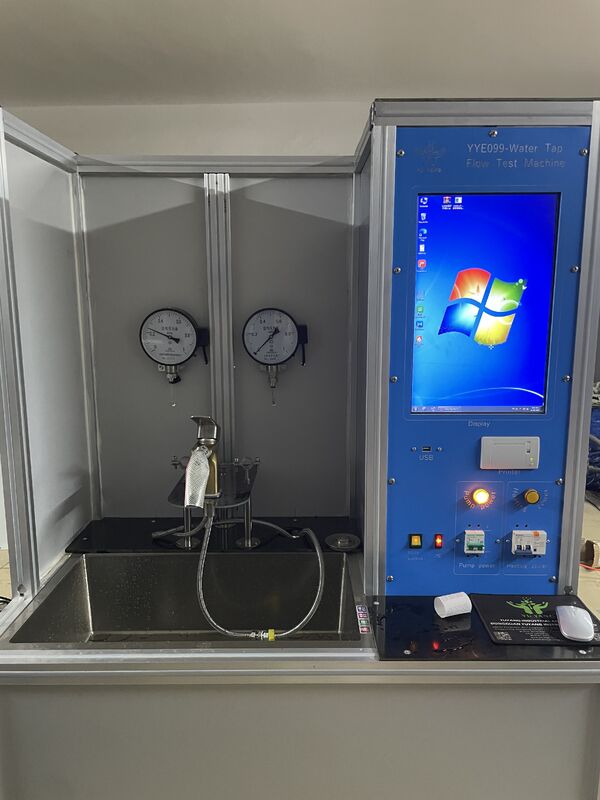

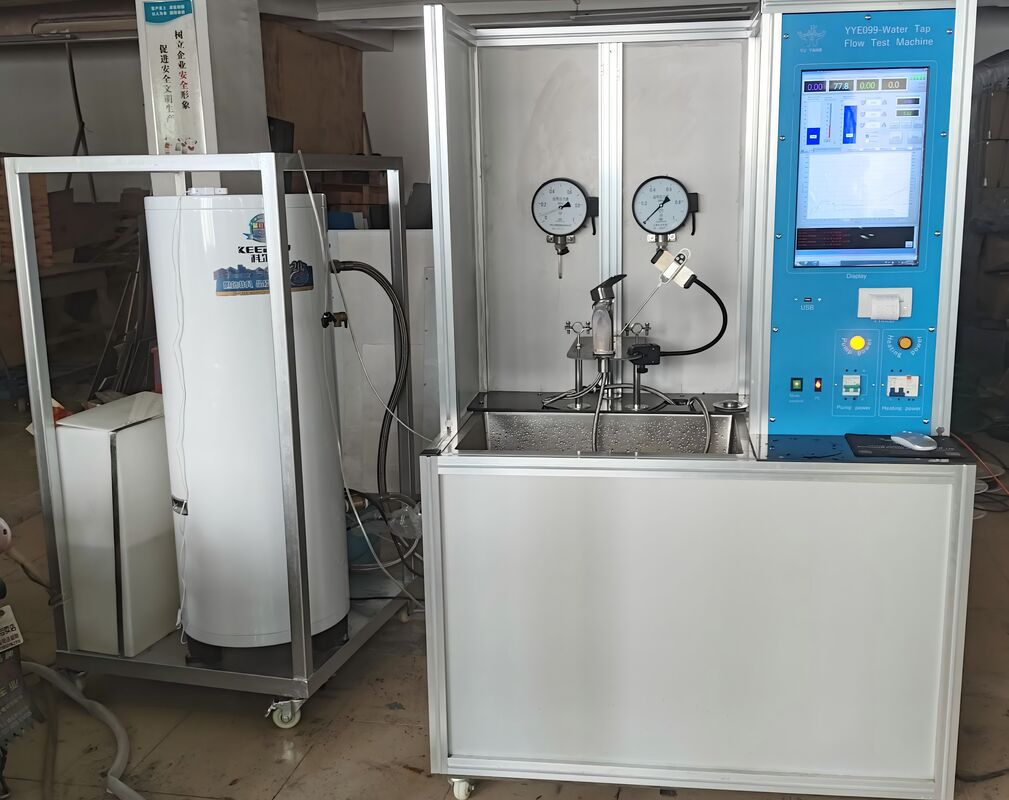

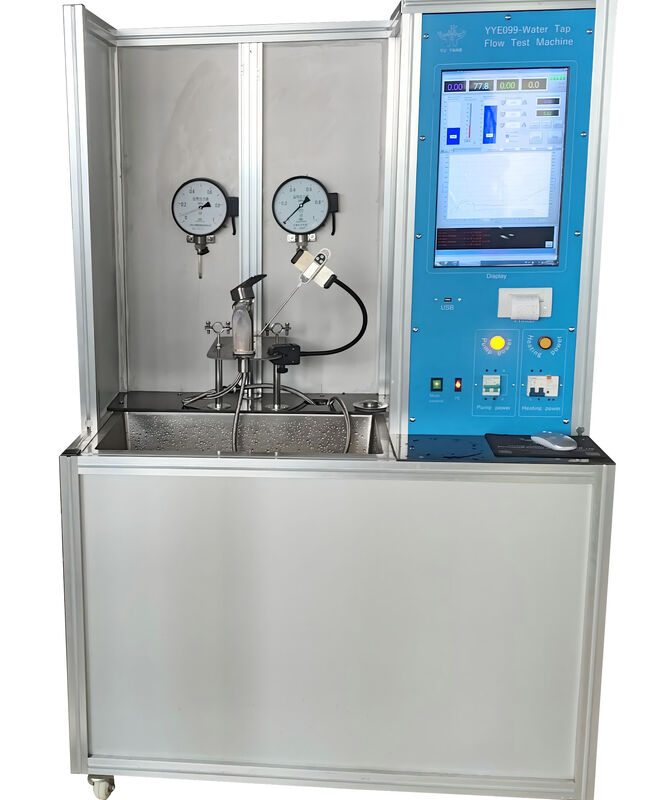

EN817 Professional Water Flow Testing Machine YYE099

Advanced automatic faucet flow rate testing equipment with PLC control, thermal printer, LED lighting, and exhaust fan. Designed for comprehensive testing of hoses, nozzles, pipes, and angle valves.

Application Scope

Ideal for testing water hoses, nozzles, pipes, angle valves, and similar components with flow rates up to 30 liters/minute and dynamic pressure less than 0.6 MPa.

Technical Specifications

Frame Construction	Aluminum frame with water recycling system and storage tank
Water Supply System	Stainless steel water tank, stainless steel multi-stage pump, and piping
Pressure Regulation	Frequency converter for precise pressure and flow rate control
Mobility & Features	Four swivel casters for easy movement, LED lighting, and exhaust fan in testing chamber
Control System	PLC and host computer with real-time data display and thermal printer
Valve Compatibility	Multi-functional valve mounting plate accommodates most commercial faucets

Flow Rate Testing Capabilities

Minimum flow rate test: 0.14 MPa (20 psi)
Maximum flow rate test: 0.41 MPa
Nozzle maximum flow rate test: 0.55 MPa

Key Functions

Automatic adjustment of flow rate and pressure
Low-pressure flow rate testing capability

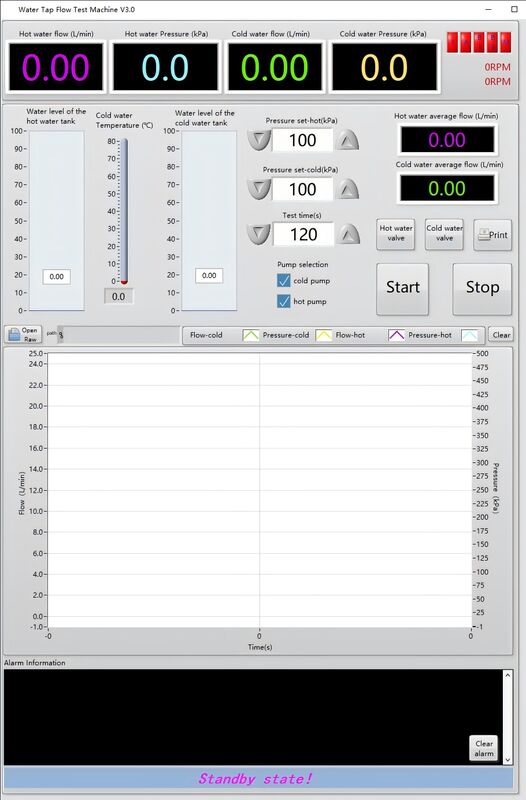

Real-time display of flow rate and pressure data
Time-flow curve plotting
Automatic test result printing

Professional Testing Solution: Complete water flow testing system with comprehensive data analysis, real-time monitoring, and automated reporting for quality control and compliance testing.
