Name: EN817 Professional Faucet Switch Life Tester, Automatic Water Circulation with Heating, 2-Station Simultaneous Testing for Faucet Durability Evaluation
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY511
Price: 25,000.00 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

EN817 Professional Faucet Switch Life Tester, Automatic Water Circulation with Heating, 2-Station Simultaneous Testing for Faucet Durability Evaluation

automatic faucet durability tester

2-station faucet switch tester

water circulation faucet life tester

Place of Origin:

CHINA

Brand Name:

YUYANG

Certification:

Model Number:

YY511

Request A Quote

Product Details

Method:

Hot&Cool Water Regular Test

Standards:

GB, ASTM, EN 200,EN 1112，EN 817

Function:

The Solenoid Valve Automatically Detects And Automatically Adds Water, Circulates The Water, And Provides Adjustable Test Speed.

Range:

70,000 Times Triangular Or Rectangular Action Life Test

Water Temperature Range:

Room Temperature-60℃

Power:

380V 50HZ 2.5KW

Material:

304 Stainless Steel

Highlight:

automatic faucet durability tester

2-station faucet switch tester

water circulation faucet life tester

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiation

Packaging Details

Wooden Box

Delivery Time

7-30 Days

Payment Terms

L/C,D/A,D/P,T/T,MoneyGram,Western Union

Automated Induction Hardening Machine For Flammability Testing Equipment

Get Best Price

Video

Ultra High Frequency Fuels Advantages 6kw Capacitor Induction Heating Machine

Get Best Price

Video

High-Frequency (30-80 kHz) Induction Heater for Melting Gold at 1600°C

Get Best Price

Video

High Frequency Welding Machine Quenching Equipment Induction Heating Equipment Customized 70KW CN;GUA Yuyang

Get Best Price

8613825728654

sales09@yuyangtest.com

86-769-26622869

Contact Now

Product Description

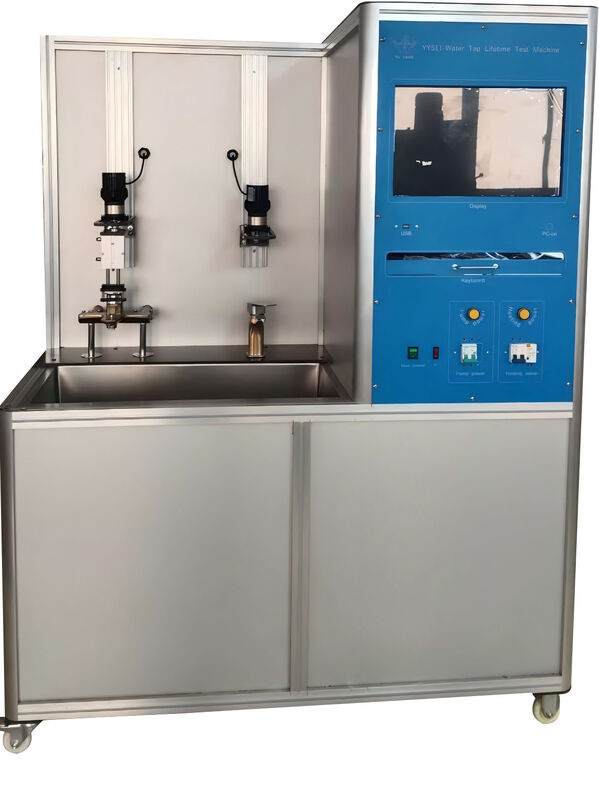

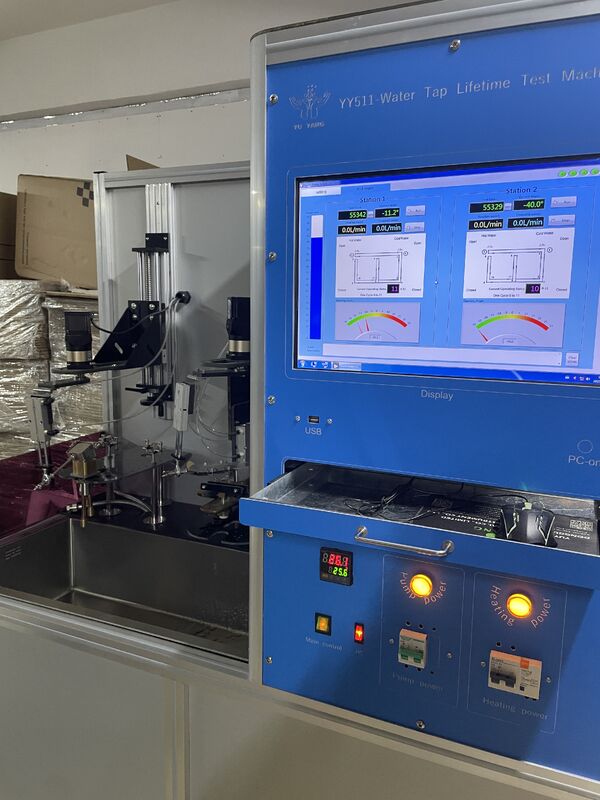

EN817 Professional Faucet Switch Life Tester

This advanced faucet life testing system simulates daily operational cycles to evaluate the lifespan of customer-provided faucets. The unit features dual-station simultaneous testing capability with independent counting for each faucet group. An automated system controls water circulation, detection, and adjustable testing speeds.

Technical Specifications

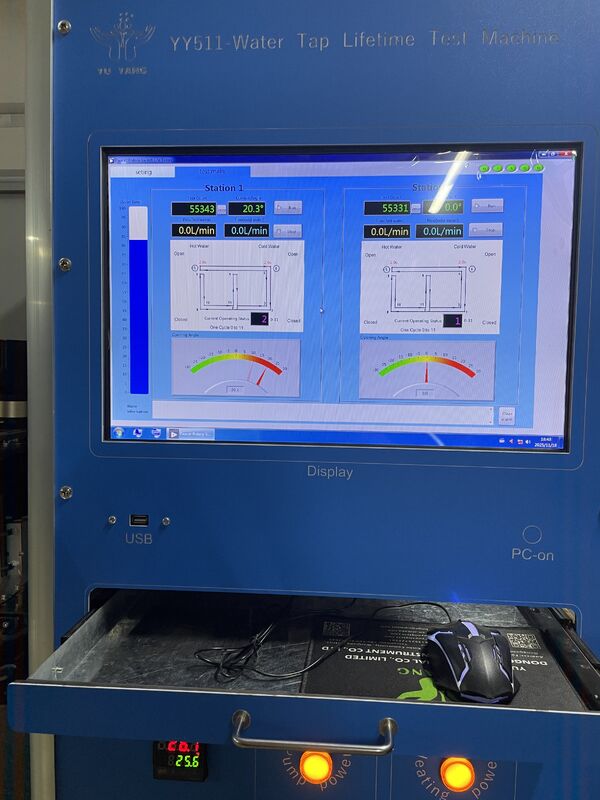

Control System	Computer-controlled with six-digit counter (0-999,999 cycles), selectable stop function
Speed Range	Configurable from 0 to 15 cycles per minute
Stroke	Adjustable from 0 to 10 revolutions
Return Water System	Automatic water addition and discharge for continuous circulation
Control Method	Precision stepper motor control
Operating Voltage/Current	380V/50Hz
Operating Pressure	Adjustable from 0 to 4 bar
Surface Material	Stainless steel construction
Surface Treatment	Electrostatic powder coating, chrome plating, and oxidation treatment
Water Tank	Stainless steel reservoir
Water Pump	3kW high-power centrifugal pump generating 4 bar pressure
Filtration System	Three-stage filtration device at water inlet to remove impurities and extend pump service life

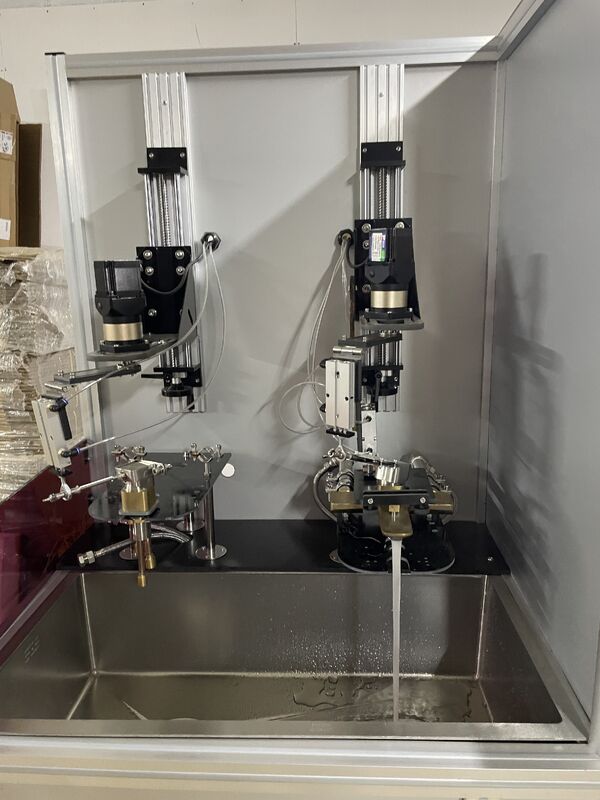

Work Fixture	Two-station configuration based on final product design
Safety Protection	Alarm protection for leakage, short circuit, and water shortage conditions
Heating System	Integrated water heater providing hot water at 65°C ±2°C

Lifetime Testing Capabilities

Single handle double control spool valve (shower): 70,000 cycles triangular or rectangular action life test
Single handle double handle (single hole): 10,000 cycles life test
Swing pipe outlet: 80,000 cycles life test
Quick open 90 degrees spool valve: 200,000 cycles life test

This device is designed for testing the mechanical endurance of cartridges and diverters in single-lever taps in accordance with EN 817:2008, clauses 12.1 and 12.2.
