EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction

EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction

Computer-Controlled Faucet Life Cycle Testing Machine

Adjustable Speed Faucet Switch Life Tester

Stainless Steel Faucet Endurance Tester

Place of Origin:

CHINA

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY511

Contact Us
Request A Quote
EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction
EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction
Product Details
Method:
Hot&Cool Water Regular Test
Standards:
GB, ASTM, EN 200,EN 1112，EN 817
Function:
The Solenoid Valve Automatically Detects And Automatically Adds Water, Circulates The Water, And Provides Adjustable Test Speed.
Range:
70,000 Times Triangular Or Rectangular Action Life Test
Water Temperature Range:
Room Temperature-60℃
Power:
380V 50HZ 2.5KW
Material:
304 Stainless Steel
Highlight:

Computer-Controlled Faucet Life Cycle Testing Machine

,

Adjustable Speed Faucet Switch Life Tester

,

Stainless Steel Faucet Endurance Tester

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiation
Packaging Details
Wooden Box
Delivery Time
7-30 Days
Payment Terms
L/C,D/A,D/P,T/T,MoneyGram,Western Union
RELATED PRODUCTS
Good price ISO3795 FMVSS 302 Road Vehicles Interior Materials Horizontal Flammability Tester online

ISO3795 FMVSS 302 Road Vehicles Interior Materials Horizontal Flammability Tester

Get Best Price
Good price Electronic Limiting Oxygen Index for Test Apparatus 220V with 1 Year Warranty online

Electronic Limiting Oxygen Index for Test Apparatus 220V with 1 Year Warranty

Get Best Price
Good price ISO5660 Cone Calorimeter Heat Release Tester Machine for Building Materials 220V 1 Year Warranty online

ISO5660 Cone Calorimeter Heat Release Tester Machine for Building Materials 220V 1 Year Warranty

Get Best Price
Good price BS EN 13823 Single Burning Item Test Apparatus (SBI) for Building Materials online

BS EN 13823 Single Burning Item Test Apparatus (SBI) for Building Materials

Get Best Price
CONTACT US
8613825728654
sales09@yuyangtest.com
86-769-26622869
Contact Now
Product Description

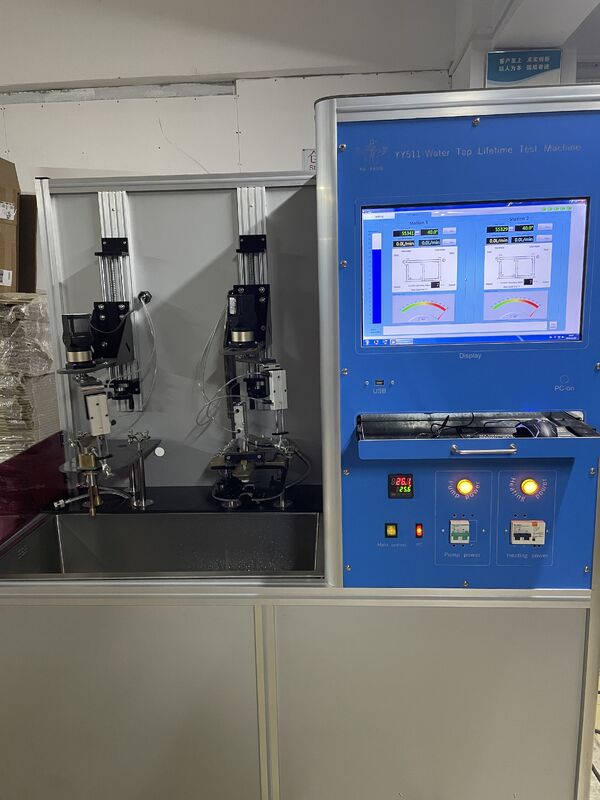

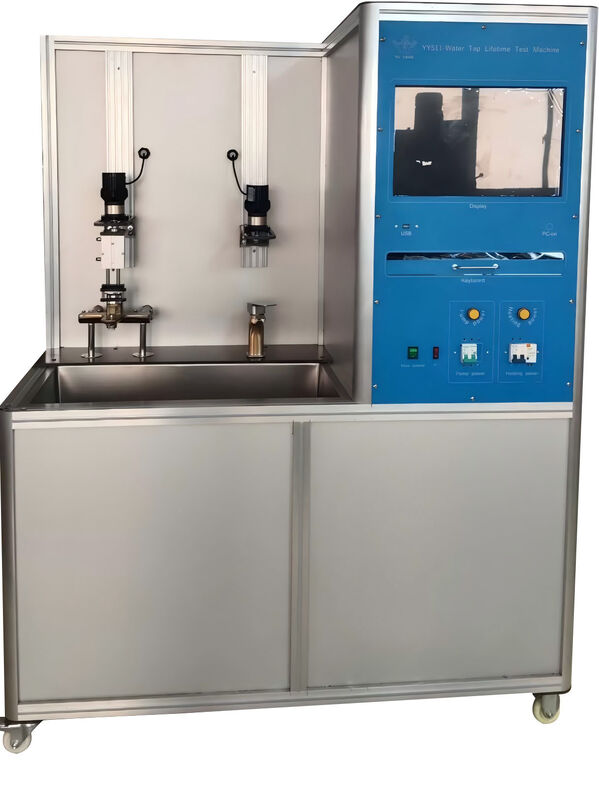

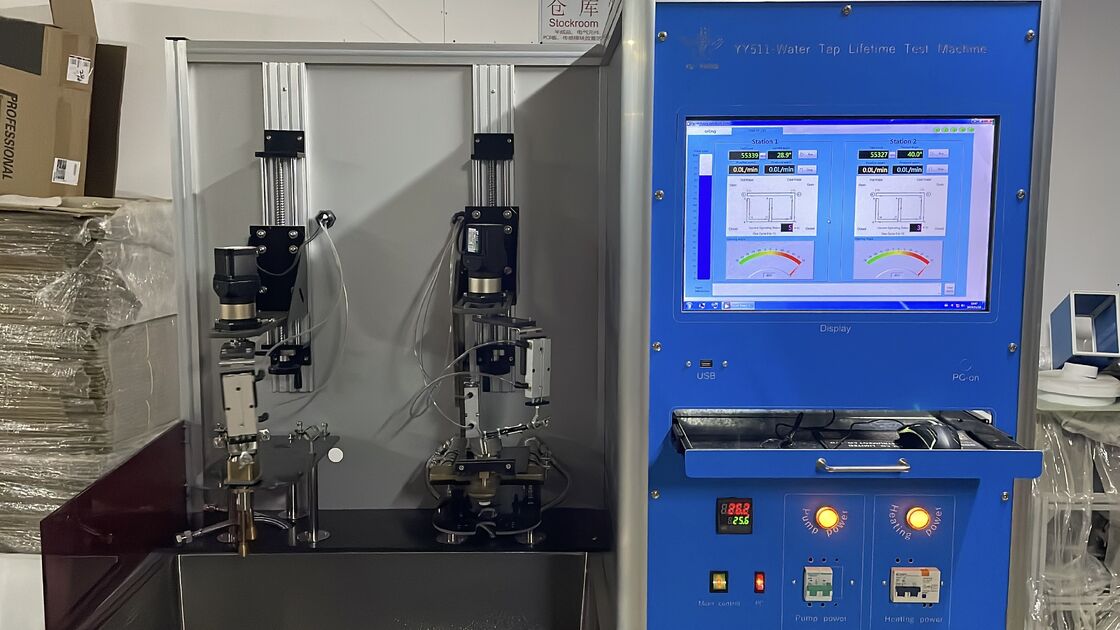

EN817 High-Precision Faucet Life Cycle Testing Machine
This computer-controlled faucet life cycle testing machine with stepper motor drive simulates daily lifespan testing of customer-provided faucets. Capable of testing two faucets simultaneously with separate counting for each group, it features automatic solenoid valve detection, automatic water addition, water circulation, and adjustable test speed.
EN817 Computer-Controlled Faucet Life Cycle Testing Machine with Adjustable Speed (0-15/min) and Stainless Steel Construction 0
Technical Specifications
  • Control System: Computer-controlled with six-digit counter (0-999,999 cycles) and selectable stop function
  • Speed Range: Adjustable from 0 to 15 cycles per minute
  • Stroke: Configurable from 0 to 10 revolutions
  • Return Water System: Automatic water addition and discharge for continuous circulation
  • Control Method: Precision stepper motor control
  • Operating Voltage: 380V/50Hz
  • Operating Pressure: Adjustable from 0 to 4 bar
  • Surface Material: Stainless steel construction
  • Surface Treatment: Electrostatic powder coating, chrome plating, and oxidation treatment
  • Water Tank: Stainless steel reservoir
  • Water Pump: 3kW high-power centrifugal pump generating 4 bar pressure
  • Filtration System: Three-stage filtration device to remove water impurities and extend pump life

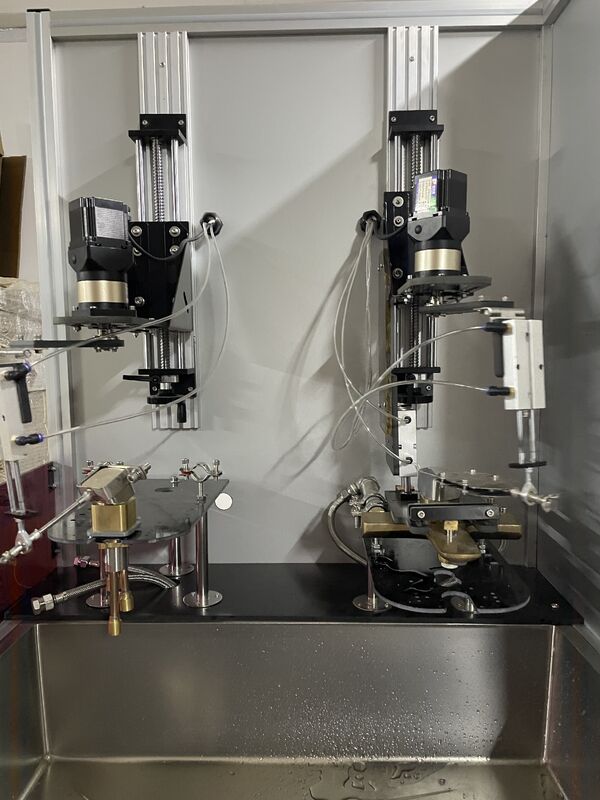

  • Work Fixture: 2-station configuration based on final product design
  • Safety Protection: Comprehensive alarm protection for leakage, short circuit, and water shortage
  • Water Heater: Included for hot water testing at 65°C ±2°C
Lifetime Testing Capabilities
Single handle double control spool valve (shower): 70,000 cycles triangular or rectangular action life test
Single handle double handle (single hole): 10,000 cycles life test
Swing pipe outlet: 80,000 cycles life test
Quick open 90 degrees spool valve: 200,000 cycles life test
This device is designed for testing the mechanical endurance of cartridges and diverters in single-lever taps in accordance with EN 817:2008, clauses 12.1 and 12.2.
