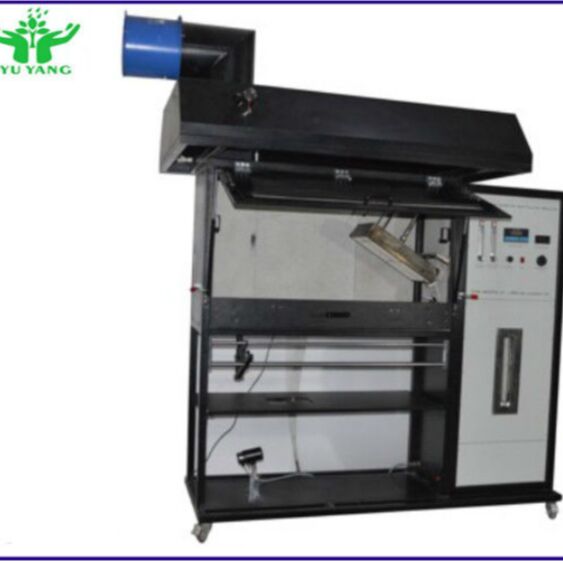

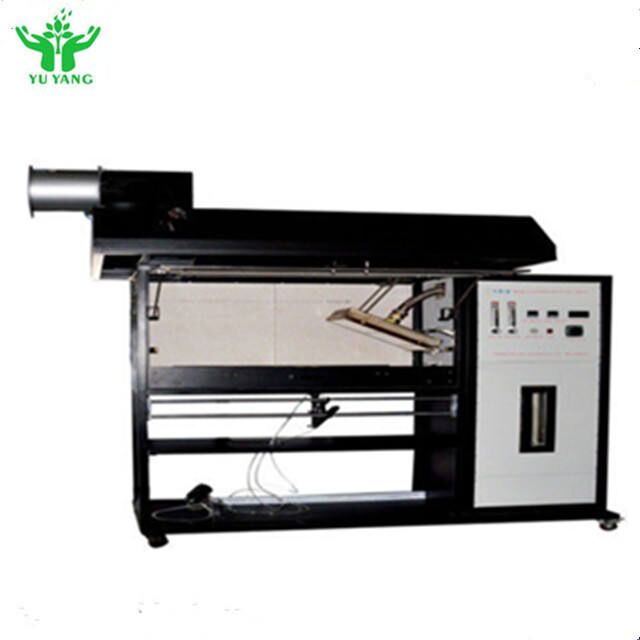

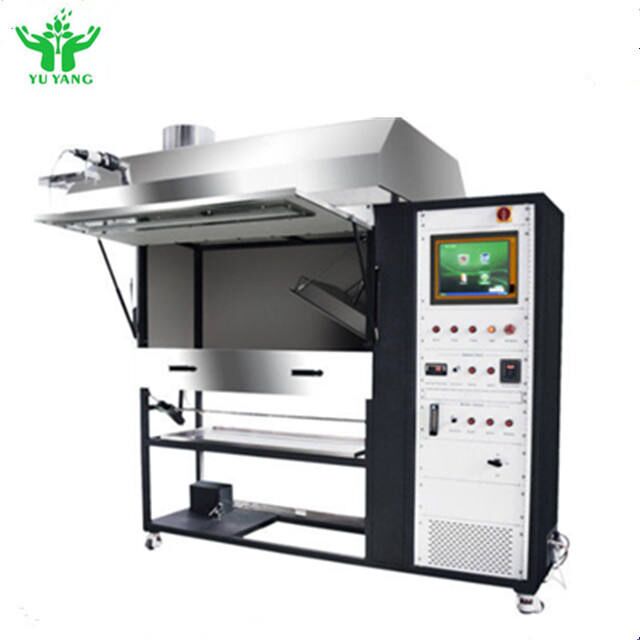

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

The ISO 9239 Radiant Flooring Panel test is the cornerstone of the flooring materials reaction to fire tests in the Euroclass system. The apparatus measures the spread of flame of the sample under thermal exposure using a radiant heat ignition source. The thermal exposure simulates a fire growing in the room of origin that radiates through a door opening onto flooring in an adjacent room or corridor.

This flooring radiant panel test apparatus can also be used for tests to standards ASTM E648 and DIN 4102; Part 14.

• GB/T 11785 "Flooring combustion performance measurement - a radiant heat source"
• ISO 9239-1:2002 "Flooring combustion performance Part 1 - the combustion performance is determined with radiant heat resource"
• ASTM E648: Standard Test Method for Critical Radiant Flux of Floor-covering Systems Using a Radiant Heat
• ASTM E970: Standard Test Method for Critical Radiant Flux of Exposed Attic Floor Insulation Using a Radiant Heat Energy Source
• NFPA 253: Standard Test Method for Critical Radiant Flux of Floor Covering Systems Using a Radiant Heat Energy Source

• Insulated test chamber with calcium silicate insulation board and temperature resistant observation window
• Stainless steel sample support assembly mounted on sliding platform for safe and easy sample loading

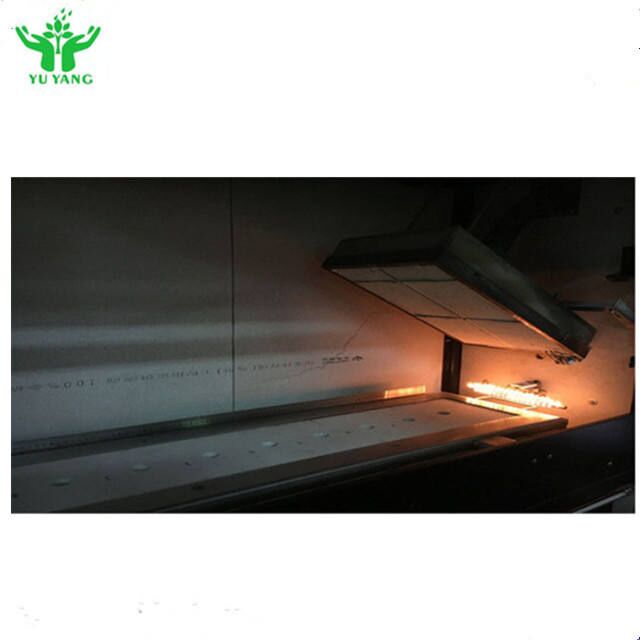

• Gas-fuelled radiant panel inclined at 30º, directed at horizontally mounted floor covering system specimen
• Radiant energy flux distribution ranging from nominal maximum of 10.9 kW/m² to minimum of 1.1 kW/m²
• Dummy calibration specimen with holder, calibrated heat flux meter and mounting
• Distance burned until flame-out converted into equivalent critical radiant flux in kW/m²
• Heat Flux Meter: Range 0-50 kW/m²; Surface emissivity: ε=0.95±0.05
• Smoke measuring system according to DIN 50055 mounted on separate frame at exhaust stack
• Control rack for convenient observation during equipment set-up and calibration
• Automatic ignition of radiant panel with safety cut-out
• Automatic moving T-type ignition burner
• Stainless steel hood with smoke measurement ports
