IEC 60754 Electric Cables Corrosion Halogen Acid Gas Release Tester

IEC 60754 Electric Cables Corrosion Halogen Acid Gas Release Tester

IEC 60754 halogen acid gas tester

electric cable corrosion tester

flammability testing equipment with warranty

Place of Origin:

China

Brand Name:

YUYANG

Certification:

IEC 60754

Model Number:

YY114

Contact Us
Request A Quote
IEC 60754 Electric Cables Corrosion Halogen Acid Gas Release Tester
IEC 60754 Electric Cables Corrosion Halogen Acid Gas Release Tester IEC 60754 Electric Cables Corrosion Halogen Acid Gas Release Tester IEC 60754 Electric Cables Corrosion Halogen Acid Gas Release Tester
Product Details
Product Name:
Electric Cables Halogen Acid Gas Release Tester
Standard:
IEC 60754
Air Flow Meter:
20mL~200mL Adjustable
Material:
Refractory Tube Made Of Silica, Resistant To Corrosive Gases
Sampling:
500mg~1000mg
Ambient Temperature:
Operating 10ºC To 35ºC
Power Supply:
220V 50HZ
Weight:
80kg
Highlight:

IEC 60754 halogen acid gas tester

,

electric cable corrosion tester

,

flammability testing equipment with warranty

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiation
Packaging Details
Plywood Box
Delivery Time
15 work days
Payment Terms
T/T
Supply Ability
5 sets per month
RELATED PRODUCTS
Good price ISO3795 FMVSS 302 Road Vehicles Interior Materials Horizontal Flammability Tester online

ISO3795 FMVSS 302 Road Vehicles Interior Materials Horizontal Flammability Tester

Get Best Price
Good price Electronic Limiting Oxygen Index for Test Apparatus 220V with 1 Year Warranty online

Electronic Limiting Oxygen Index for Test Apparatus 220V with 1 Year Warranty

Get Best Price
Good price ISO5660 Cone Calorimeter Heat Release Tester Machine for Building Materials 220V 1 Year Warranty online

ISO5660 Cone Calorimeter Heat Release Tester Machine for Building Materials 220V 1 Year Warranty

Get Best Price
Good price BS EN 13823 Single Burning Item Test Apparatus (SBI) for Building Materials online

BS EN 13823 Single Burning Item Test Apparatus (SBI) for Building Materials

Get Best Price
CONTACT US
+86-13825723571
sales002@yuyangtest.com
86-769-26622869
Contact Now
Product Description

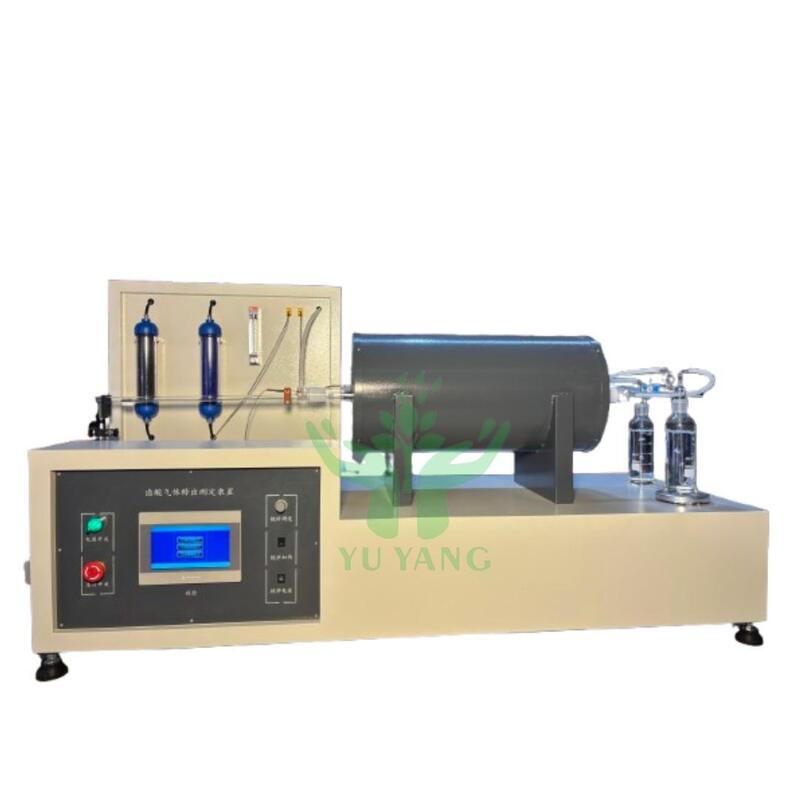

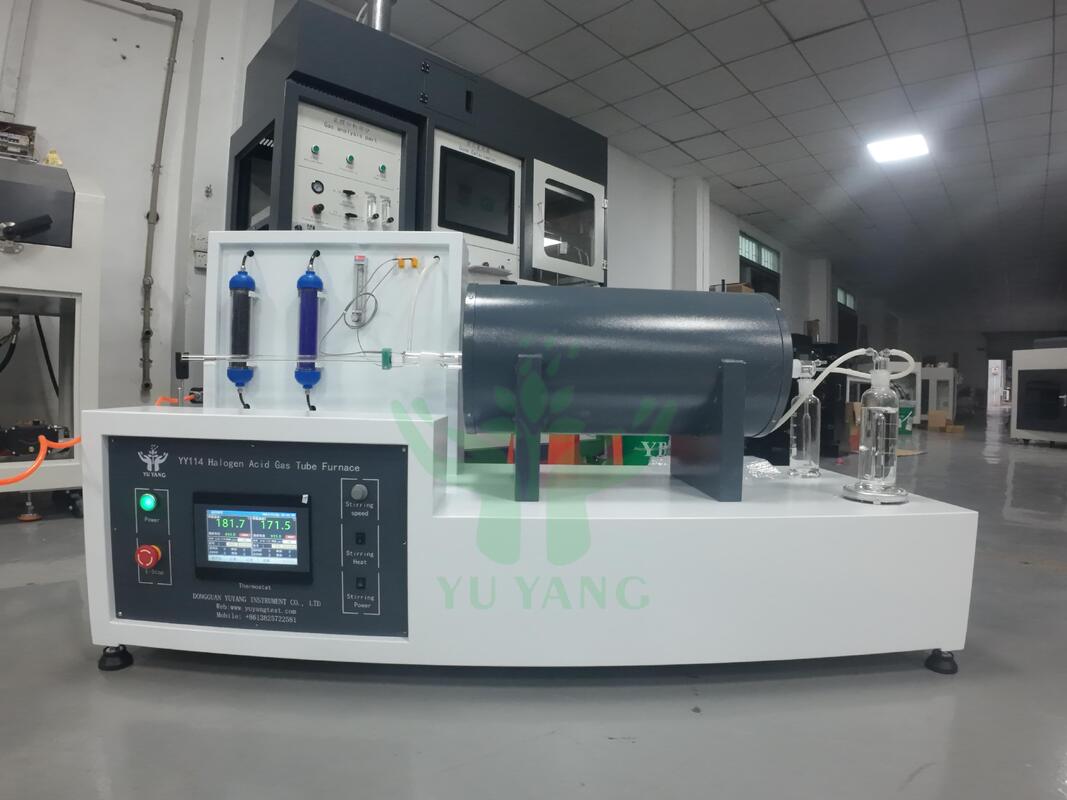

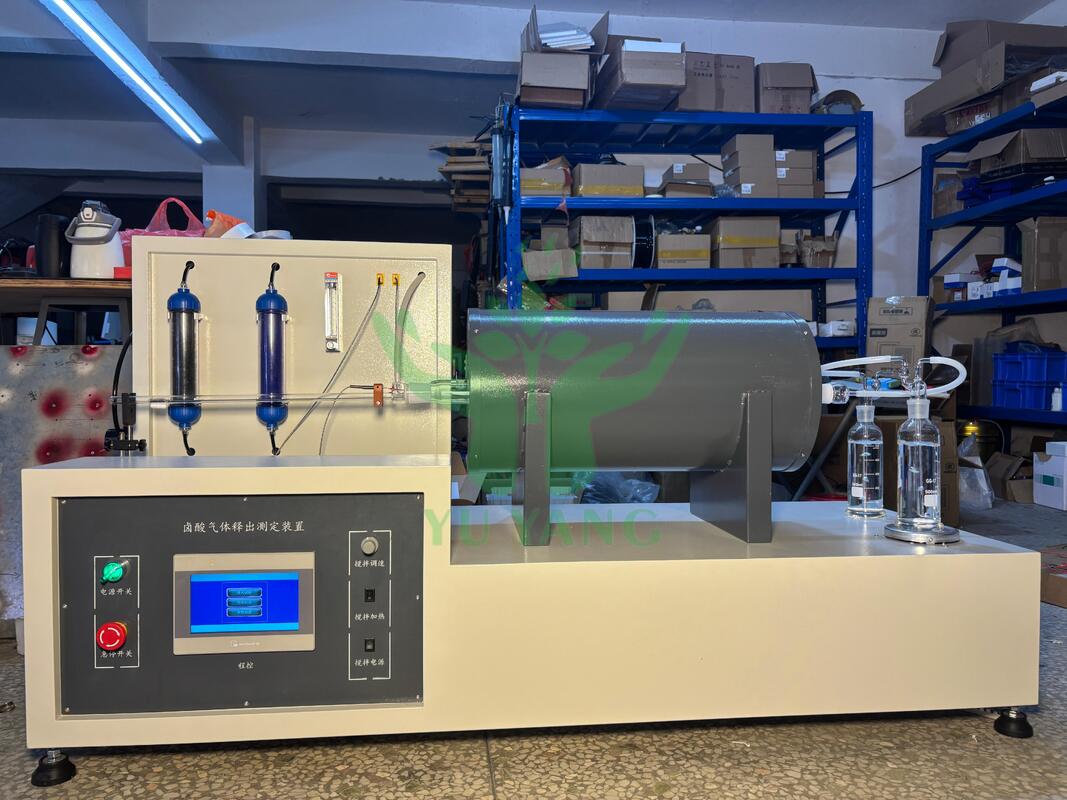

IEC 60754 Electric Cables Corrosion Halogen Acid Gas Release Tester
IEC 60754 Electric Cables Corrosion Halogen Acid Gas Release Tester 0
The Electric Cables Halogen Acid Gas Release Tester is designed to measure the acidity of gases released during combustion from cable or optical cable component materials. This equipment processes cable materials using a Prius tube furnace and analyzes the resulting gases to determine pH values, conductivity, and halogen acid gas concentration.
Compliance Standards
Compliant with GB/T17650.1-1998, GB/T17650.2-1998, IEC60754-1:1994, IEC60754-2:1991 standards. Also meets requirements of GB/T19666-2005 "General Rules for Flame Retardant and Fire Resistant Wires and Cables" sections 6.3.4 of GA306.1-2007, 6.3.4 of GA306.2-2007, and 9.10 and 9.11 of UL2556-2007.
Key Features
  • Optimized structure with logical layout for easy operation
  • All fixtures constructed from stainless steel
  • Tube furnace with 500mm-600mm effective length and 40mm-60mm inner diameter
  • High-quality thermocouple for accurate temperature measurement
  • Combustion boat dimensions: 45mm-100mm length, 12mm-30mm width, 5mm-10mm depth
  • Conductivity measuring range: 0.01μS/mm to 100μS/mm
  • Electronic temperature control system with intelligent furnace temperature management
  • Two gas collection bottles included
  • pH value and conductivity detector with electronic display and electrode
  • Silicon dioxide fire pipeline airflow meter for corrosion protection
  • Activated carbon air filtration system
  • Silicone drying system for air source
  • Pyrex pipeline for sample insertion and pipeline protection
  • Automatic combustion boat movement system
  • Dual test mode selection (IEC 60754-1 & IEC 60754-2)
  • Temperature alarm system to prevent overheating
  • Integrated timer for both test methods
  • Storage drawer for accessories
  • Furnace core temperature indicator
  • Permanent magnetic stirrer for conductivity measurement
Applications
This tester is used to determine the total amount of halogen acid gas in low-halogen and halogen-free flame retardant cables by measuring pH value and conductivity of combustion gases.
