Product Description

Electronic Limiting Oxygen Index Test Apparatus 220V with 1 Year Warranty

Technical Specifications

Item Name	Fully Automatic ASTM D2863 Building Material Limiting Oxygen Index Tester
Oxygen concentration measurement range	0-100%
Resolution	0.1%
Accuracy	+/-0.2%
Response time	<300ms
Oxygen stability time	<30s
Oxygen concentration sensor	England Servomex Paramagnetic type oxygen sensor, accuracy: +/-0.1%
Gas displacement	50L/S
Size	600(W)310(D)545(H)mm
Workbench size	1500(W)600(D)800(H)mm
Weight	30kg
Power supply	AC 220V, 50/60Hz, 5A

Key Features

Adopts England original Servomex Paramagnetic type oxygen sensor with accuracy up to +/-0.1%
Superior to traditional electrochemical sensors - no oxygen battery replacement required, longer lifespan, more accurate and faster response time
Equipped with 2 Mass Flow Controllers (MFC) to control N2 and O2 mixing ratio
High temperature quartz glass tank included
Supported and unsupported sample clamps provided
Portable ignition device, gas tank connector, and accurate pin valve for flame adjustment
Digital setting for N2 and O2 concentration
Computer + LABVIEW software for controlling gas mixing ratio, reading O2 concentration, and storing/printing test results
Calibration port reserved for sensor calibration
Stainless steel air channel design with one-way fire-resistance valve, magnetic valve, and fine filter for stability and safety
Patented gas mixing chamber design ensures rapid gas mixing and accurate data

Product Attributes

Type Testing Machine

Accuracy Custom

Place of Origin Guangdong, China

Customized Support OEM, ODM, OBM

Power 200

Protection Class IP55

Voltage 220 V

Brand Name YUYANG

Warranty 1 year

Temperature Room Temperature~40 Degree

Maximum Power 0.5 KW

Response Time <5s

Equipment Dimensions 0.54 *0.33*0.6 (L*W*H)m

Power 220V 50HZ 16A

Weight 24kg

Packaging & Delivery

Selling Units Single item

Package Size 54X33X60 cm

Gross Weight 24.000 kg

Product Images

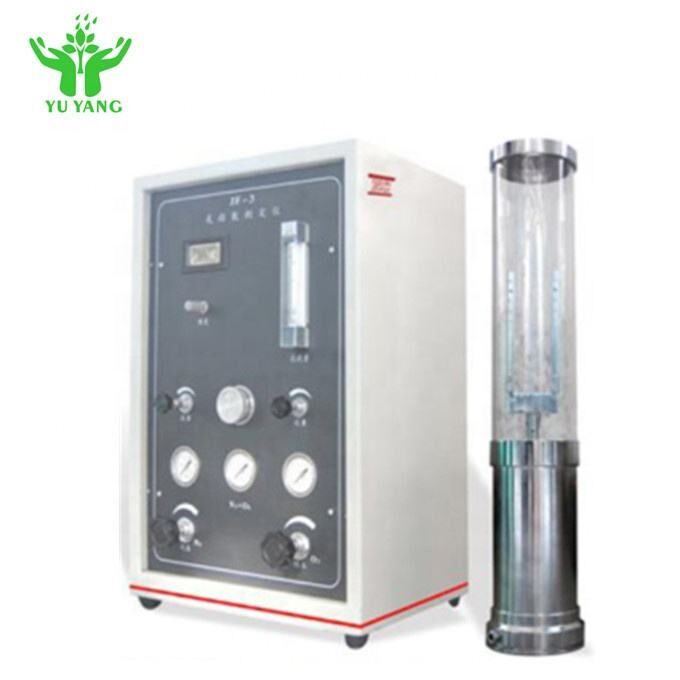

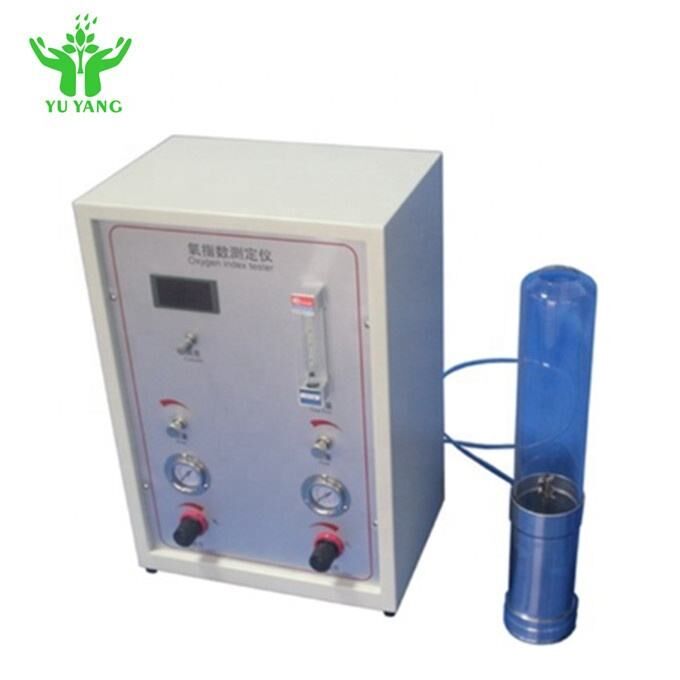

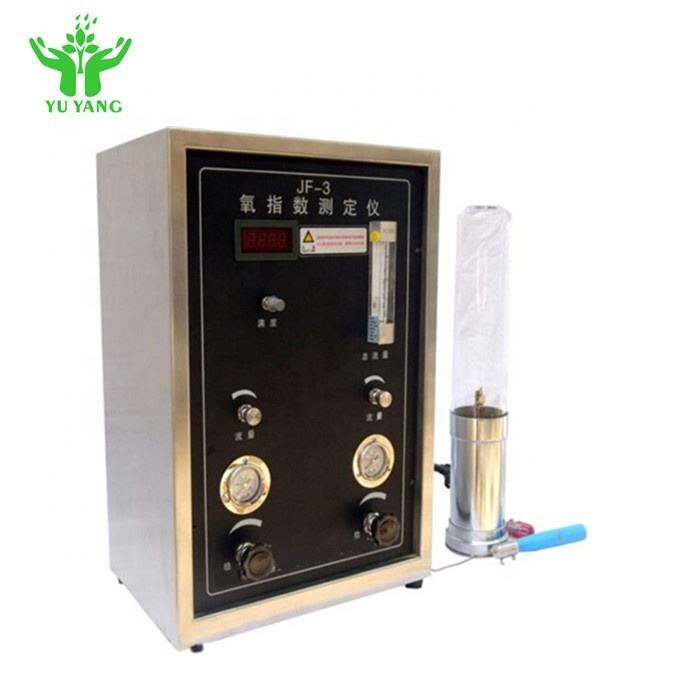

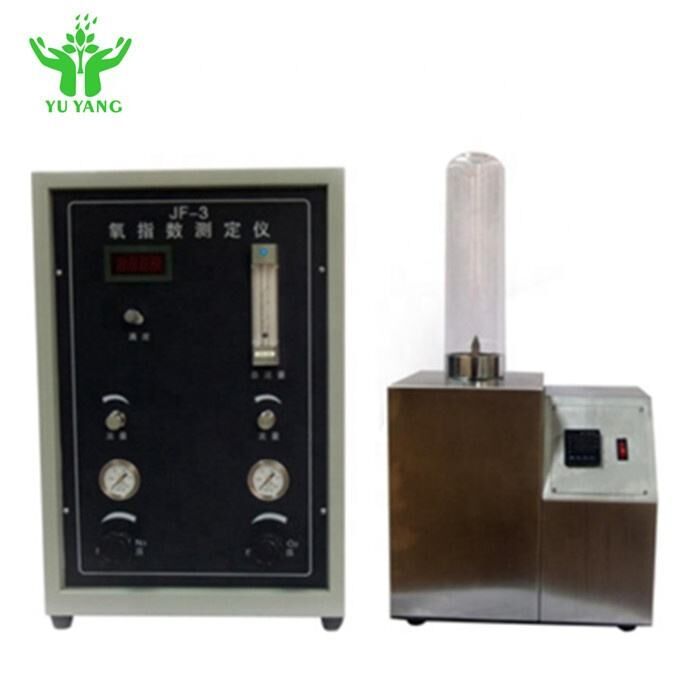

Electronic Limiting Oxygen Index for Test Apparatus 220V with 1 Year Warranty
