Glow Cable and Wire Tester Machine Glow Wire Tester

Glow Cable and Wire Tester Machine Glow Wire Tester

glow wire tester machine

flammability testing equipment with warranty

glow cable tester for flammability

Place of Origin:

CHINA

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYF052

Contact Us
Request A Quote
Glow Cable and Wire Tester Machine Glow Wire Tester Glow Cable and Wire Tester Machine Glow Wire Tester Glow Cable and Wire Tester Machine Glow Wire Tester Glow Cable and Wire Tester Machine Glow Wire Tester
Product Details
Highlight:

glow wire tester machine

,

flammability testing equipment with warranty

,

glow cable tester for flammability

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
pending
Payment Terms
T/T
RELATED PRODUCTS
Good price ISO3795 FMVSS 302 Road Vehicles Interior Materials Horizontal Flammability Tester online

ISO3795 FMVSS 302 Road Vehicles Interior Materials Horizontal Flammability Tester

Get Best Price
Good price Electronic Limiting Oxygen Index for Test Apparatus 220V with 1 Year Warranty online

Electronic Limiting Oxygen Index for Test Apparatus 220V with 1 Year Warranty

Get Best Price
Good price ISO5660 Cone Calorimeter Heat Release Tester Machine for Building Materials 220V 1 Year Warranty online

ISO5660 Cone Calorimeter Heat Release Tester Machine for Building Materials 220V 1 Year Warranty

Get Best Price
Good price BS EN 13823 Single Burning Item Test Apparatus (SBI) for Building Materials online

BS EN 13823 Single Burning Item Test Apparatus (SBI) for Building Materials

Get Best Price
CONTACT US
8618938576621
sales05@yuyangtest.com
86-769-26622869
Contact Now
Product Description
Glow Cable and Wire Tester Machine Glow Wire Tester
Product Overview

The glow wire testing machine is commonly used for electrical engineering components and solid electrical insulation materials or other solid combustible materials. This equipment conforms to GB/T516910-13, EC60695-2-10-2-1/3, GB2099, VDE0620, GB4706 and UL817 test standards.

Test method: The standard resistance wire ring is heated to the specified temperature, and then the hot wire and test sample are contacted with plug socket rubber plastic and other products under the test conditions.

Key Features
Control Panel
Intuitive control, simple operation
LCD Touch Screen
Optional LCD touch screen operation
Imported Equipment
Imported hot spot device, more accurate
Stainless Steel Construction
Optional mirror stainless steel box
Technical Specifications
Warranty 1 year
Certification IECEE, CE
Customized support OEM, ODM, OBM
Place of Origin China
Brand Name YUYANG
Model Number YYF052
Power Electronic
Pressure 0.95N±0.1N
Max Depth 7mm ± 0.5mm
Sample Moving Speed 10mm/s ~ 25mm/s
Test Volume ≥ 0.5m³
Dimension W 1250mm × D 600mm × H 1150mm
Power Supply 220V 50Hz
Weight 90kg

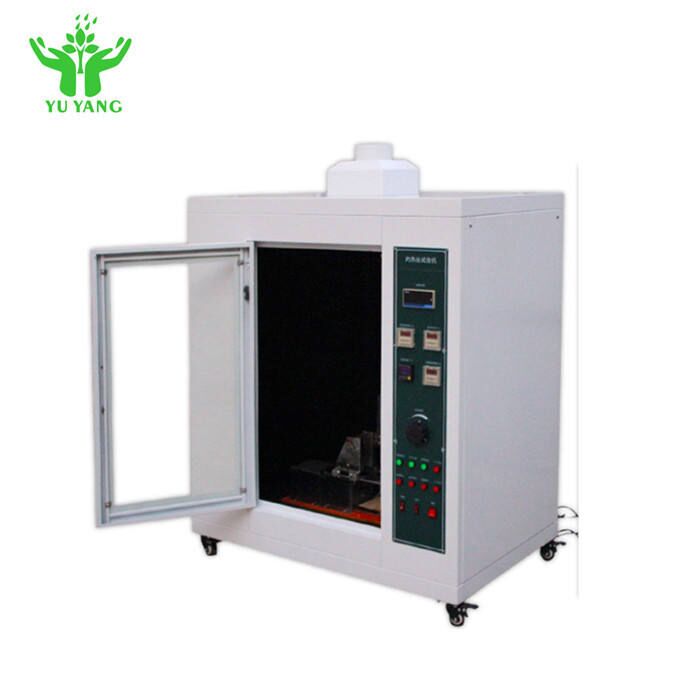

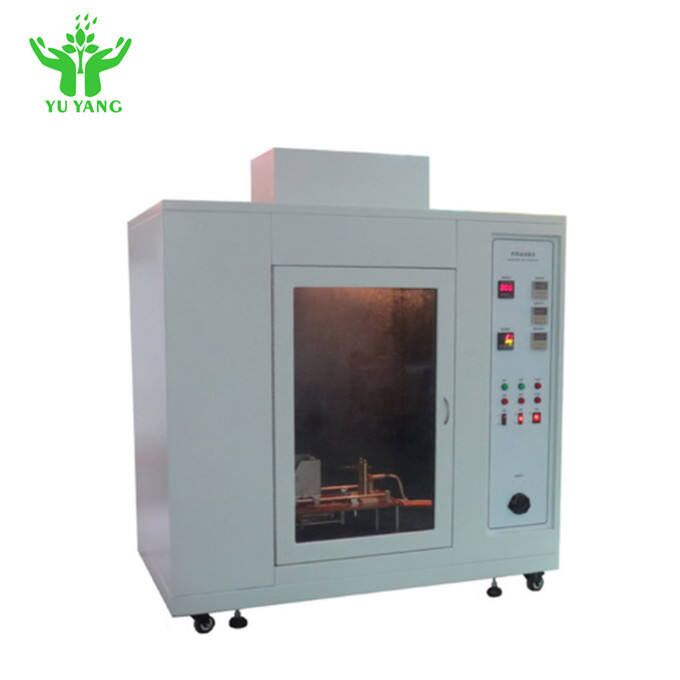

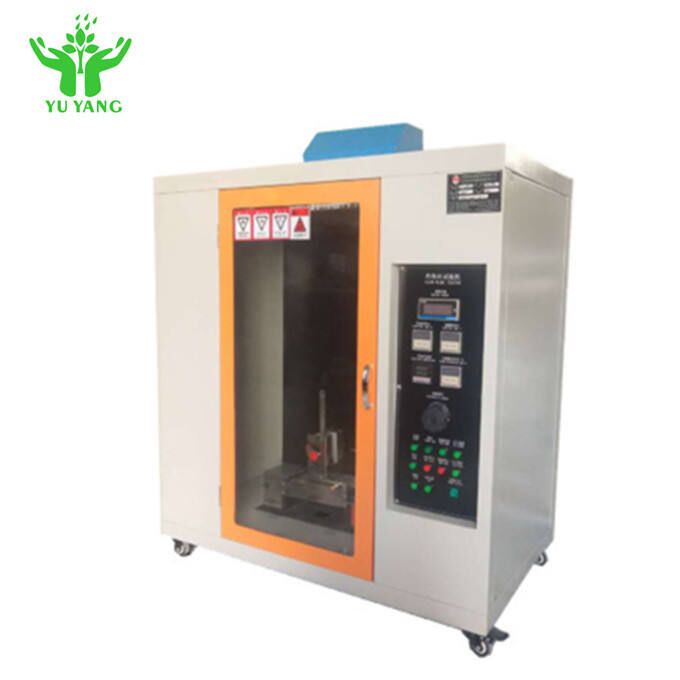

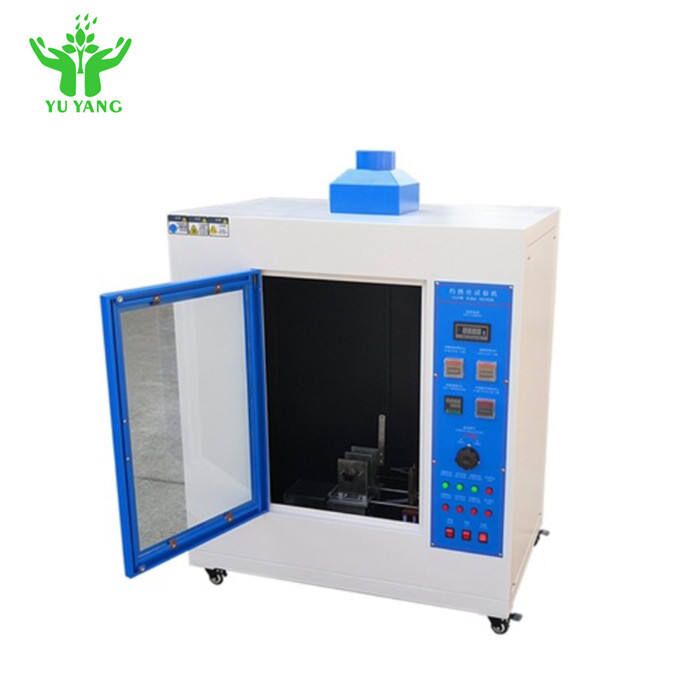

Product Images
Glow Cable and Wire Tester Machine Glow Wire Tester 0 Glow Cable and Wire Tester Machine Glow Wire Tester 1
