Electric Cables Halogen Acid Gas Testing Apparatus

Electric Cables Halogen Acid Gas Testing Apparatus

halogen acid gas testing apparatus

electric cables flammability tester

halogen gas testing equipment

Place of Origin:

CHINA

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYF052

Contact Us
Request A Quote
Electric Cables Halogen Acid Gas Testing Apparatus Electric Cables Halogen Acid Gas Testing Apparatus Electric Cables Halogen Acid Gas Testing Apparatus Electric Cables Halogen Acid Gas Testing Apparatus
Product Details
Highlight:

halogen acid gas testing apparatus

,

electric cables flammability tester

,

halogen gas testing equipment

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
pending
Payment Terms
T/T
RELATED PRODUCTS
Good price ISO3795 FMVSS 302 Road Vehicles Interior Materials Horizontal Flammability Tester online

ISO3795 FMVSS 302 Road Vehicles Interior Materials Horizontal Flammability Tester

Get Best Price
Good price Electronic Limiting Oxygen Index for Test Apparatus 220V with 1 Year Warranty online

Electronic Limiting Oxygen Index for Test Apparatus 220V with 1 Year Warranty

Get Best Price
Good price ISO5660 Cone Calorimeter Heat Release Tester Machine for Building Materials 220V 1 Year Warranty online

ISO5660 Cone Calorimeter Heat Release Tester Machine for Building Materials 220V 1 Year Warranty

Get Best Price
Good price BS EN 13823 Single Burning Item Test Apparatus (SBI) for Building Materials online

BS EN 13823 Single Burning Item Test Apparatus (SBI) for Building Materials

Get Best Price
CONTACT US
8618938576621
sales05@yuyangtest.com
86-769-26622869
Contact Now
Product Description

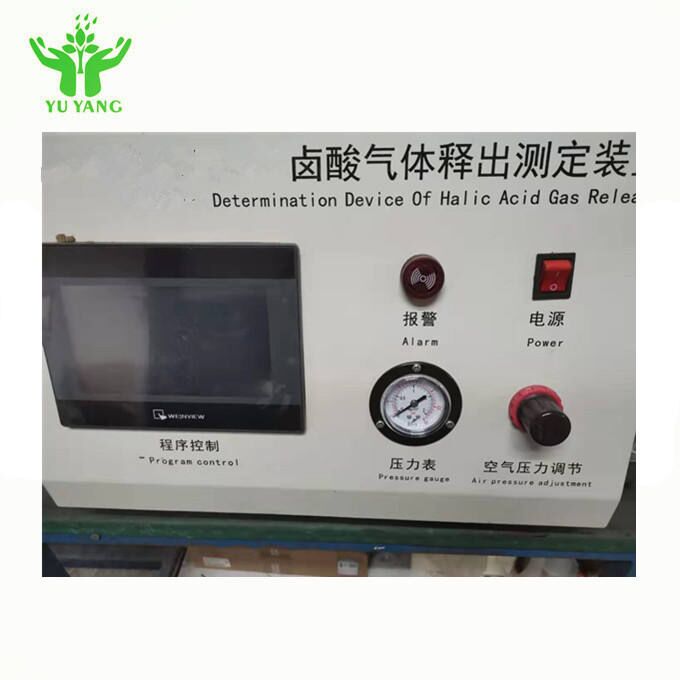

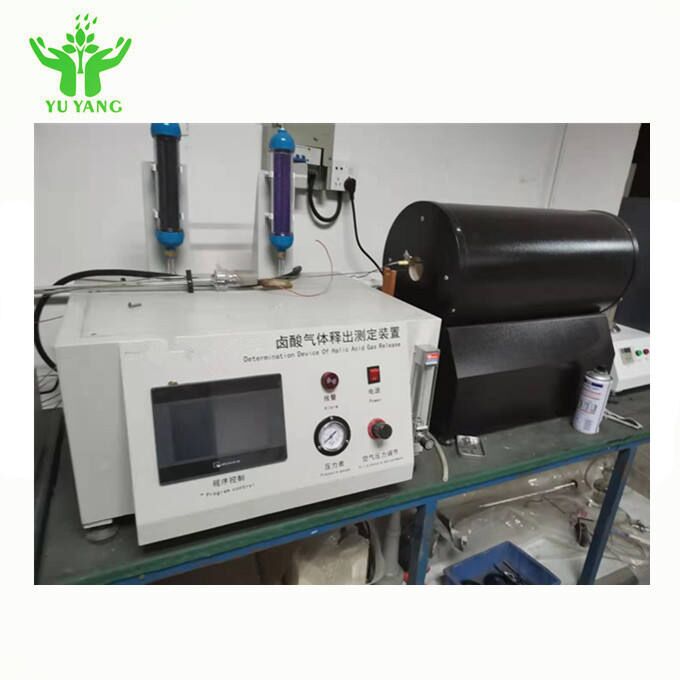

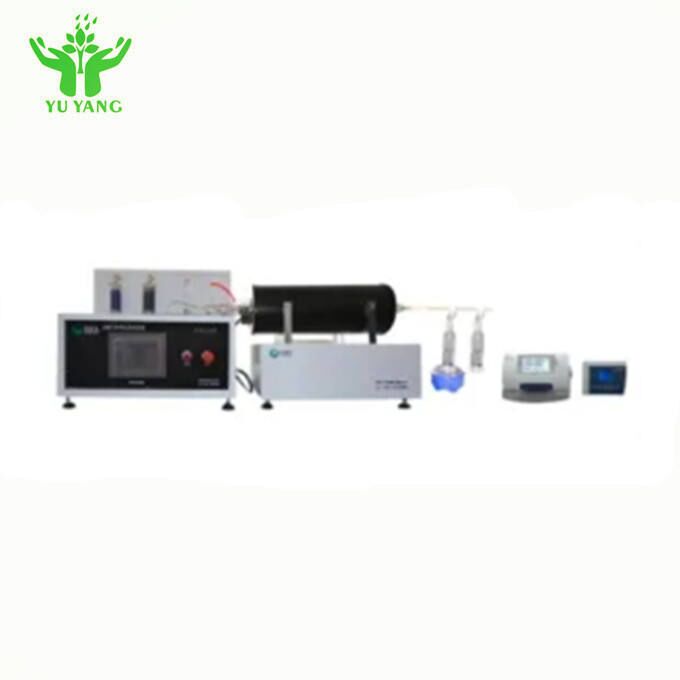

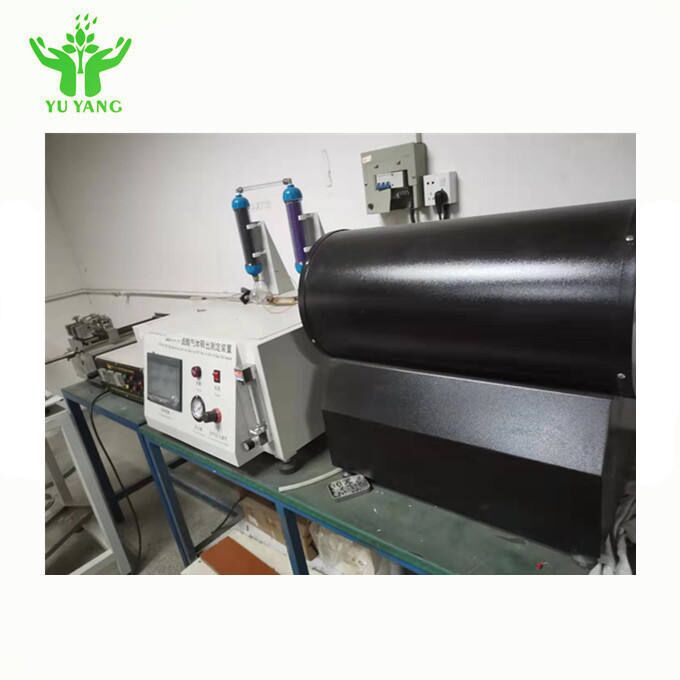

Electric Cables Halogen Acid Gas Testing Apparatus
The Halogen Acid Gas Tube Furnace is designed to test the acidity of gases released during combustion from cable or optical cable component materials. This equipment determines the acidic properties of cable materials and measures the concentration of halogen acid gas volume, pH, and conductivity values.
Compliance Standards
GB/T 17650.1~2-1998, IEC 60754-1/2-1994, EN 50305, BS 6853, GB/T 19666-2005, GA 306.2-2007, UL 2556-2007
Key Features
  • Optimized structure with logical layout for easy operation
  • All fixtures constructed from stainless steel
  • Tube furnace with 500-600mm effective length and 40-60mm inner diameter
  • Equipped with imported thermocouple from United States
  • Combustion boat dimensions: 45-100mm length, 12-30mm width, 5-10mm depth
  • Conductivity measuring range: 0.01μS/mm to 100μS/mm
  • Electronic temperature control system with intelligent furnace temperature management
  • Two gas collection bottles included
  • 1-liter sample chamber capacity
  • pH value and conductivity detector with electronic display and electrode
  • Air flow meter with silicon dioxide fire pipeline for corrosion protection
  • Activated carbon air filter for air purification
  • Silicone drying system for air source
  • Pyrex pipeline for easy sample insertion and pipeline protection
  • Automatic combustion boat moving system for intelligent testing
  • Mode switching between IEC 60754-1 and IEC 60754-2 test methods
  • Temperature alarm system to prevent furnace overheating
  • Timer for IEC 60754-1 and IEC 60754-2 time measurement
  • Integrated drawer for component storage
  • Temperature indicator displaying furnace core temperature
Technical Specifications
Activated Carbon Air Filter Filters air through activated carbon
Timer IEC 60754-1 or IEC 60754-2 time measurement device
Temperature Indicator Displays furnace core temperature
Test Device Dimensions 1500(W) × 450(D) × 400(H) mm
Control Chamber Dimensions 400(W) × 400(D) × 240(H) mm
Power Requirements AC220V 50HZ, 25A
