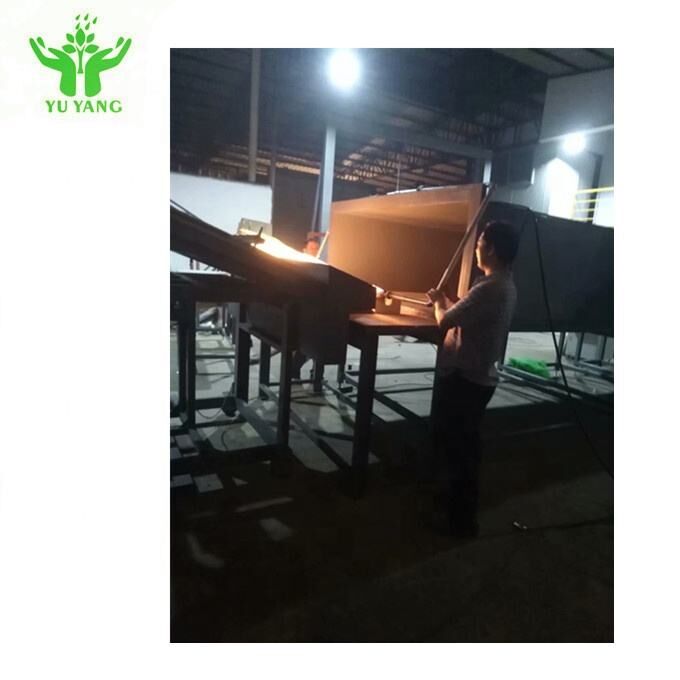

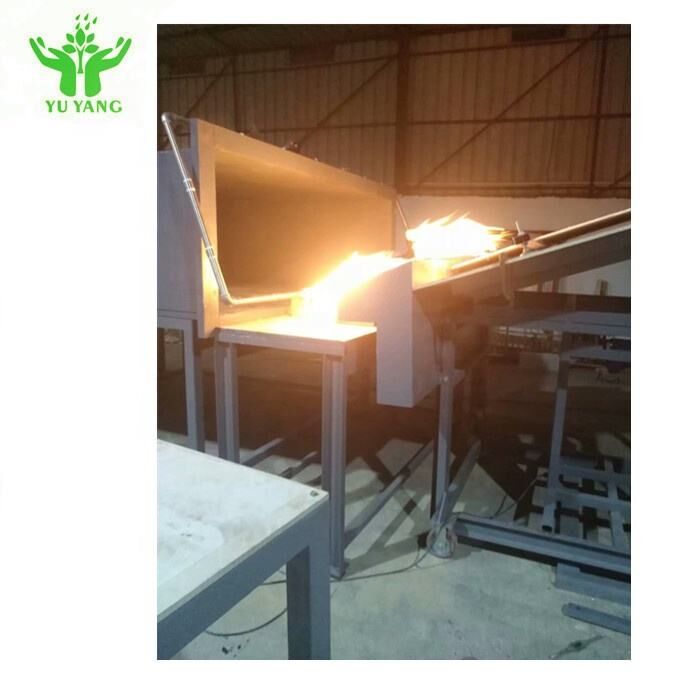

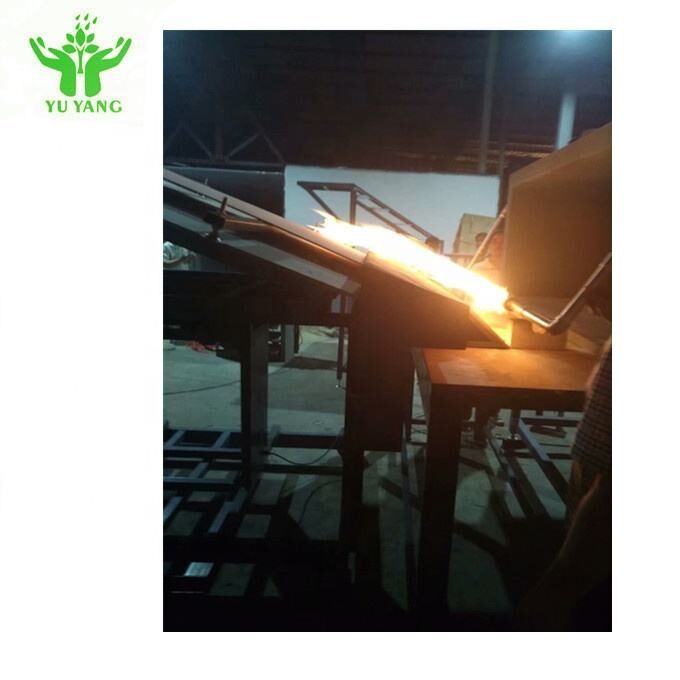

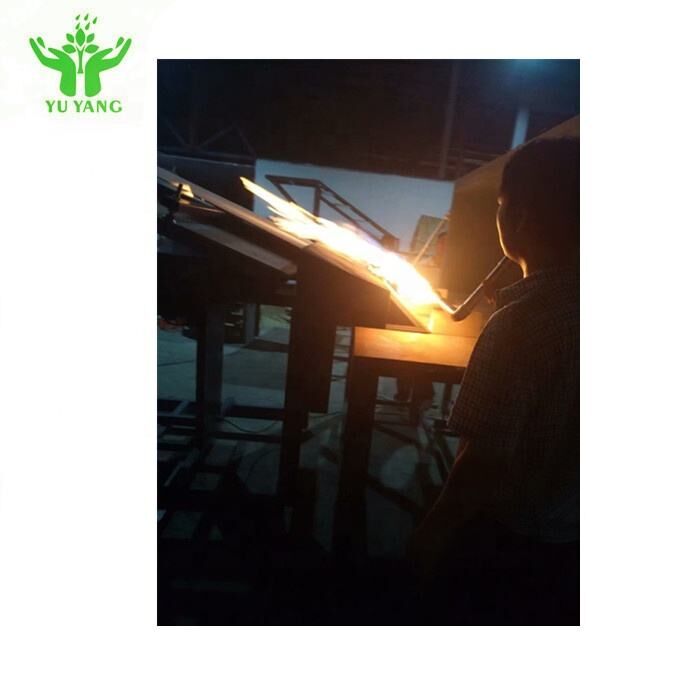

Fire Testing Equipment Solar Cell Spread of Flame & Burning Brand Tester Machine

The Solar Cell Spread of Flame & Burning Brand Test Machine is designed and developed based on UL 1730 and IEC 61730-2 standards. This instrument simulates real conditions to assess the fire-resistant performance of roof components, evaluating specimens at A (1.82m), B (2.4m), and C (3.9m) levels. It is also used for testing the fire-retardant performance of photovoltaic components.

• UL 1730: Smoke Detector Monitors and Accessories for Individual Living Units of Multifamily Residences and Hotel/Motel Rooms
• UL 790: Standard Test Methods for Fire Tests of Roof Coverings
• IEC 61730-2 Annex A: Fire Tests, Spread-of-Flame and Burning-Brand Tests
• ASTM E 108-04: Standard Test Methods for Fire Tests of Roof Coverings
• KS C IEC 61730-2 Annex A: Fire resistance test, Spread-of-Flame and Burning-Brand Test

• Plywood roof covering materials: 1,300(W) × 1,000(D) × 120(H) mm for test sample installation
• Non-combustibility test board installed at testing end to stop panel tempering
• Stainless steel fan control board with adjustable test angle: 1,440(L) × 940(H) mm
• Corrosion-resistant steel main frame bracket: 1,020(L) × 1,000(D) × 1,473(H) mm
• Non-combustible plate assembly simulating eaves and cornice: 330(W) × 2,130(D) × 584(H) mm
• Air flow rate: 19 ± 8 km/h (5.5 m/sec) with anemometer monitoring
• Separate ventilation pipes for external air extraction
• Honeycomb filter and gas inlet guide vane in air duct
• Ventilation ducts with slope adjustment panel for air flow direction control
• Stainless steel guide plates to ensure stable air flow
• Stainless steel duct materials: 2,130(W) × 762(H) × 3,000(L) mm
• 220V, 50Hz three-phase fan with reverse system and minimum flow of 300m³/min
• Infinitely variable speed inverter (0-100% adjustable)
• Gas burners for intermittent fire, flame spread and flying fire: 1.12m length with 12.7mm × 0.91m slit
• High-precision gas control valve for 22,000 Btu/min (387 kWh) capacity
• Top burner thermocouple at 58.7mm testing 888 ± 28°C
• Automatic ignition system with 1.8kVp ignition electrode
• Temperature control system with high precision pressure gauges
• Metallic mesh support materials with rotatable pallets

• Computer control system with LabView software and 10.2" LCD screen
• Data acquisition system with NI data acquisition cards
• System components include: 16-bit thermocouple input module, 16-bit A/D conversion input module, data input/output module, 12-bit A/D conversion output module, 4 and 8-slot backplane, LabView modules, and Ethernet network module
• Brand testing systems with gas burners maintaining 880 ± 10°C temperature

• Any part of roof covering materials blown from test deck in flame or glowing particles
• Roof deck opening through sliding, splitting, or curving of materials
• Fire safety ratings:
  • Class A: Flame spread range 1.82m
  • Class B: Flame spread range 2.4m
  • Class C: Flame spread range 3.9m

• Any part or component blown from test deck in flames or falling
• Disappearance of luminous particles in roof structure components
• Continued combustion of components or panels
